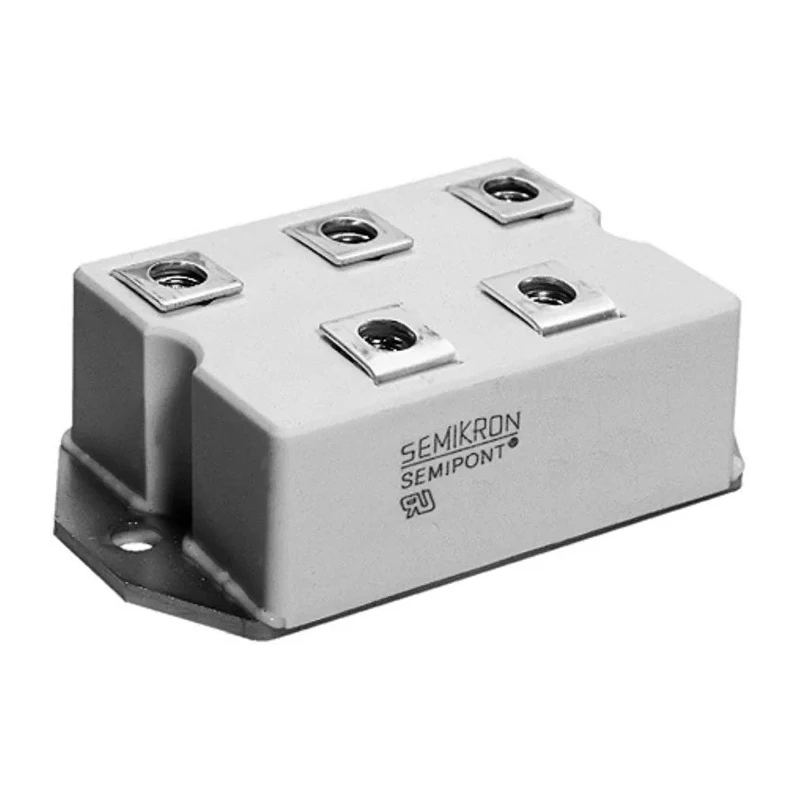

Semikron Danfoss Three Phase Bridge Rectifier Module 1600 V 1.2 kA, 7-Pin Single SKD 110/16

Semikron Danfoss SKD 110/16 Bridge Rectifier Module is a high-performance, three phase discrete semiconductor designed to convert alternating current (AC) input to direct current (DC) output with high efficiency and reliability. This module is built with a robust plastic case and features screw terminals along with an isolated metal base plate, enabling secure and straightforward panel or chassis mounting.

Operating at a peak reverse repetitive voltage (Vrrm) of 1600 V and capable of continuous forward current of 150 A, with peak non-repetitive forward surge current reaching 1.2 kA, this rectifier is ideal for demanding industrial applications such as power supplies, variable frequency drives, and DC motor field supplies. The device maintains stable operation across a wide temperature range from -40°C to 150°C, ensuring durability in harsh environments.

Its compact dimensions of 94 mm length, 54 mm width, and 30 mm height make it suitable for space-constrained installations. Low peak forward voltage of 1.9 V and minimal peak reverse current of 5 mA contribute to high efficiency and reduced power losses.

Compliant with required semiconductor standards and manufactured in Italy, this SKD 110 series rectifier module offers reliable performance in industrial, manufacturing, and electronic power conversion systems.

Peak reverse voltage rating of 1600 V. Continuous forward current up to 150 A. Peak surge current of 1.2 kA for transient conditions. Wide operating temperature range from -40°C to 150°C. 7-pin single configuration for three phase rectification.

Compact and robust design with screw terminals. Ideal for power supply, variable frequency drive, and DC motor field applications. Explore a wide selection of Bridge Rectifier Modules and semiconductor components at EnvMart for your industrial and electronic projects.
