Semikron Danfoss Three Phase Bridge Rectifier Module 1600 V 750 A 7-Pin Single SKD 82/16

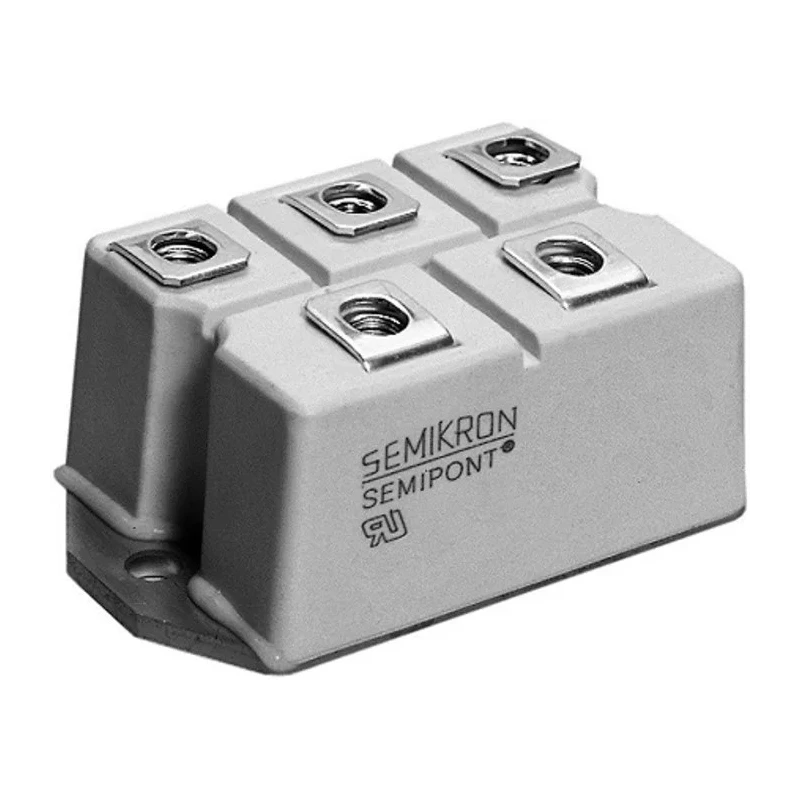

Name: Semikron Danfoss Three Phase Bridge Rectifier Module 1600 V 750 A 7-Pin Single SKD 82/16
Brand: Semikron Danfoss
SKU: 271729
Price: 74.51 USD
Availability: InStock



Category Bridge Rectifier Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Italy
Brand	Semikron Danfoss
Height	30mm
Length	72mm
Model	SKD 82/16
Width	42mm
Mount Type	Panel
Series	SKD 82
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	G-36
Minimum Operating Temperature	-40°C
Number of Phases	3
Pin Count	7
Peak Reverse Repetitive Voltage Vrrm	1600V
Peak Reverse Current Ir	6mA
Peak Non-Repetitive Forward Surge Current Ifsm	750A
Forward Current If	150A
Peak Forward Voltage Vf	1.6V
Semikron Danfoss Bridge Rectifier Module, 800 V 1 kA, 4-Pin SingleBrand	Semikron Danfoss

Key Features

Offers robust panel mounting with a G-36 package type for secure installation.
Supports 7-pin single configuration suitable for high power applications.
Maximum operating temperature up to 150°C and minimum down to -40°C ensuring reliable performance.
Equipped with isolated metal base plate for easy chassis mounting and heat dissipation.
Designed for conversion of alternating current to direct current in industrial electronics.
Forward current rated at 150 A with low peak forward voltage of 1.6 V enhances efficiency.
Compact dimensions with 72 mm length, 42 mm width, and 30 mm height optimize space usage.
Manufactured in Italy under the SKD 82 series delivering consistent quality and durability.

Product Description

Semikron Danfoss SKD 82/16 Bridge Rectifier Module is a high-performance three-phase semiconductor device engineered for converting AC to DC with a peak reverse repetitive voltage rating of 1600 V and peak forward surge current of 750 A. The module features a robust plastic casing with screw terminals and an isolated metal base plate, allowing easy panel mounting and effective heat dissipation suitable for demanding industrial environments.

This 7-pin single configuration rectifier module supports a continuous forward current of 150 A, making it ideal for power supplies, variable frequency drives, and DC motor field supplies within electrical, industrial automation, and manufacturing applications. Its operating temperature range from -40°C to 150°C ensures reliability under varying thermal conditions.

The compact dimensions - 72 mm in length, 42 mm in width, and 30 mm in height - allow for integration in compact systems while maintaining high electrical performance. Manufactured in Italy, this SKD 82 series module upholds high standards of quality and robustness.

Robust panel mounting with G-36 package and isolated metal base plate. 7-pin single configuration for three-phase rectification. Wide operating temperature range from -40°C to 150°C. Continuous forward current rating of 150 A and low forward voltage drop of 1.6 V.

Compact size optimized for industrial power electronics applications. Designed for industrial, manufacturing, and HVAC power conversion needs.

This bridge rectifier module is a critical component in industrial power electronics, delivering efficient and reliable AC to DC conversion essential in motor drives, power supplies, and automation systems. Explore more in the Bridge Rectifier Module category at EnvMart for comprehensive semiconductor solutions.
