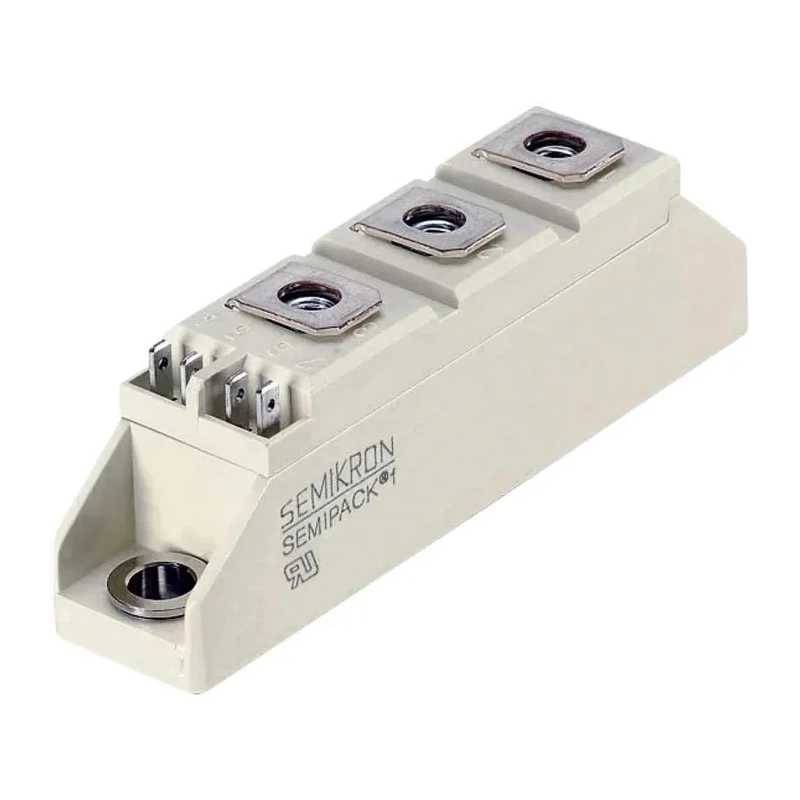

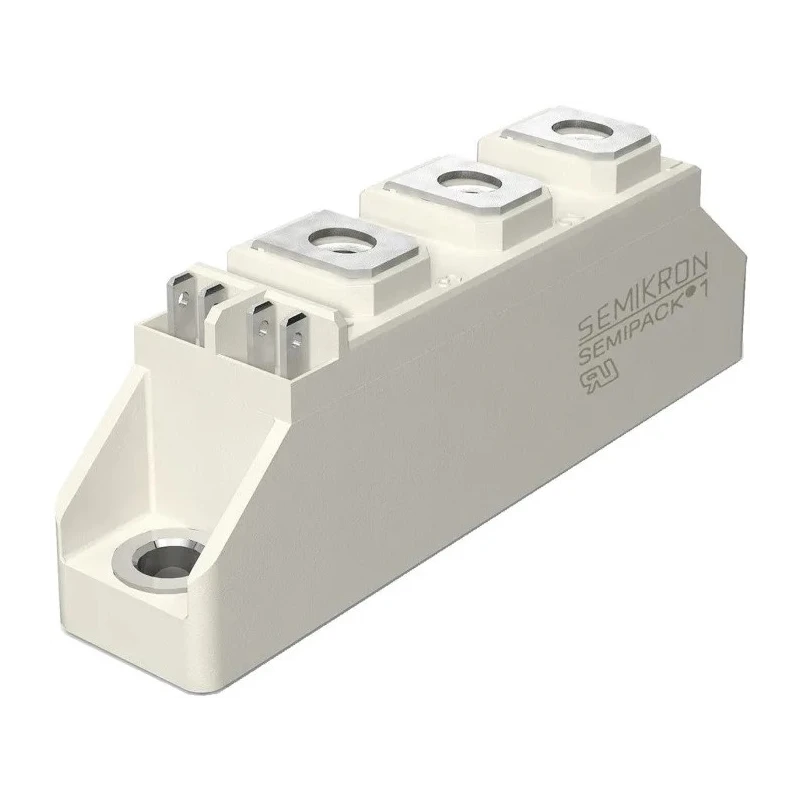

Semikron Danfoss Dual Thyristor Module 1600 V, 25 A, 150 mA Gate Trigger Current, 550 A Surge Current SKKT 27/16 E

Semikron Danfoss SKKT 27/16 E is a high-performance dual thyristor module designed for robust power electronic applications with a voltage rating of 1600 V and an average on-state current capacity of 25 A. This module uses Silicon-Controlled Rectifier (SCR) technology, providing bistable switching functionality for controlled conduction when triggered by the gate current.

The device features a surge current rating of 550 A, enabling it to withstand high transient currents encountered in industrial circuits. It has a maximum gate trigger current of 150 mA and gate trigger voltage of 3 V, affording precise control of switching operations.

Encapsulated within an A-46 package with an electrically isolated base plate, the SKKT 27/16 E module is typically mounted on panels for secure mechanical and thermal management. Its 7-pin configuration ensures reliable interfacing with control circuits.

The thyristor module operates effectively over a wide temperature range from -40°C to 125°C, making it suitable for demanding environments. The maximum holding current of 200 mA guarantees stable latch-on operation once triggered.

Applications for this dual thyristor module include battery chargers, welding machines, regulated power supplies, as well as temperature and speed control circuits in various industrial settings. The SKKT 27/16 E provides a reliable solution for power control needs requiring robust switching performance.

Dual thyristor module ensures efficient power regulation in electronic circuits. High surge current rating supports transient loads in industrial applications. Wide operating temperature range suits harsh environments. Electrically isolated base plate enables safe panel mounting.

7-pin package design for stable electrical connections. Manufactured in Slovakia adhering to stringent semiconductor quality standards. Suitable for use in battery chargers, welders, and speed controllers. Explore the range of Thyristor Modules by Semikron Danfoss on EnvMart for reliable industrial power control components.
