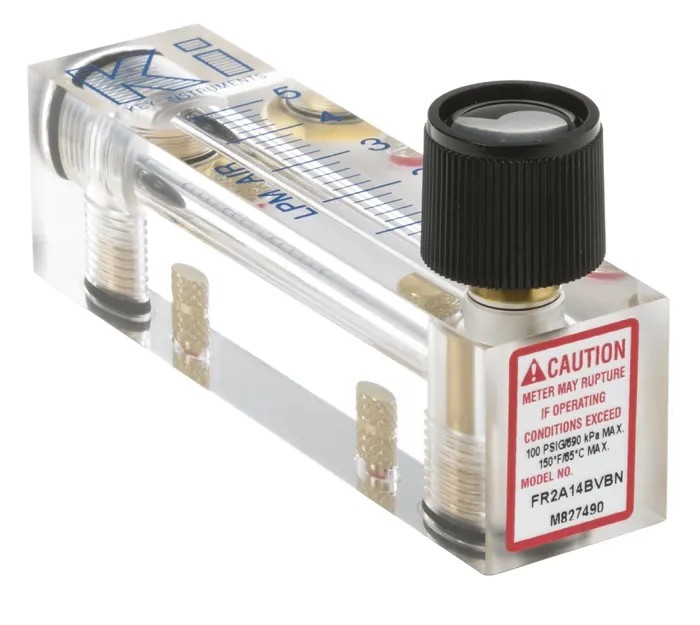

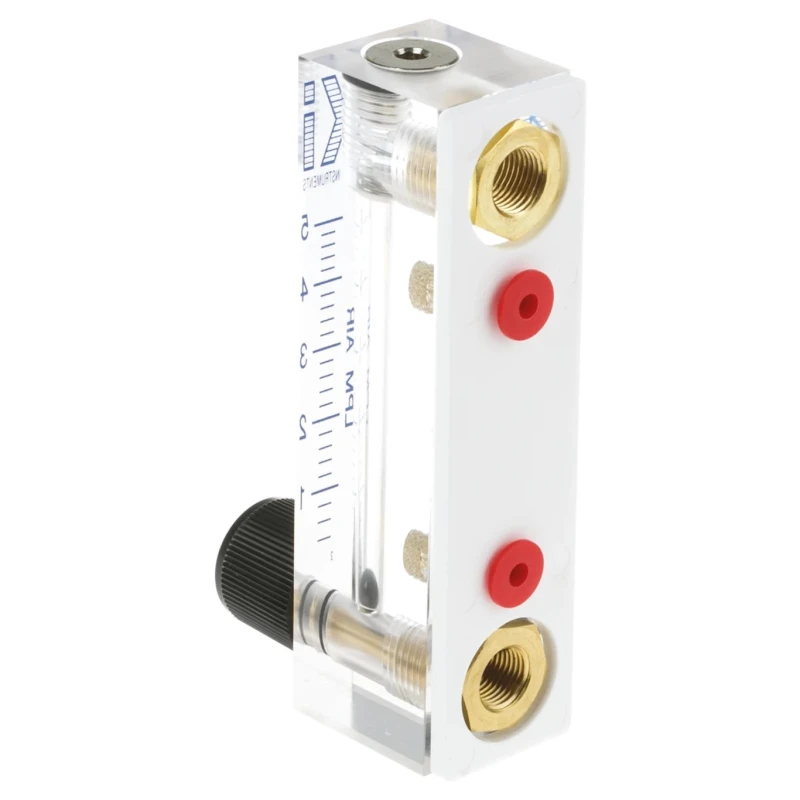

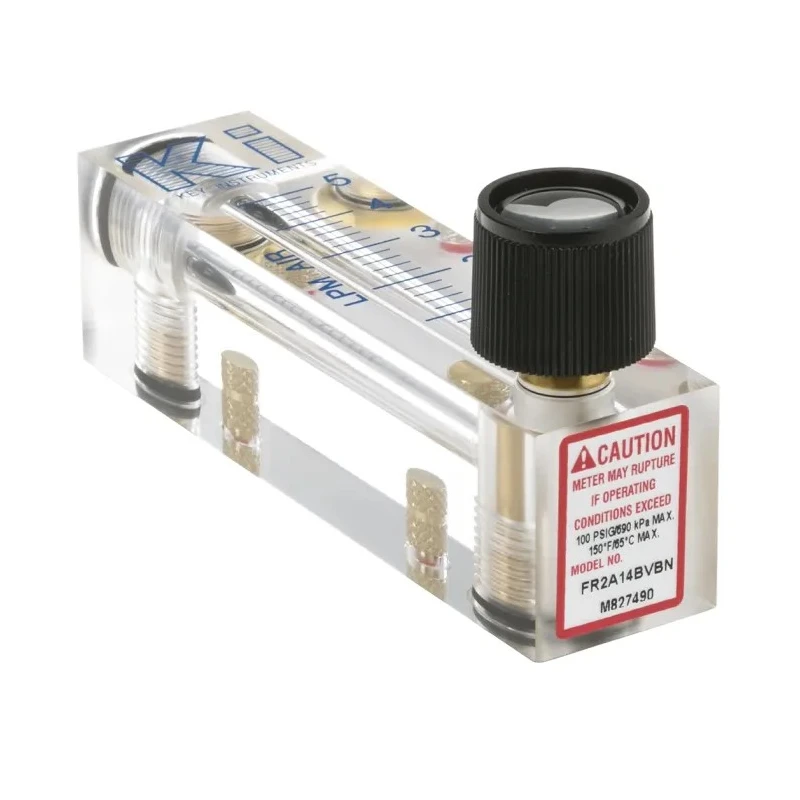

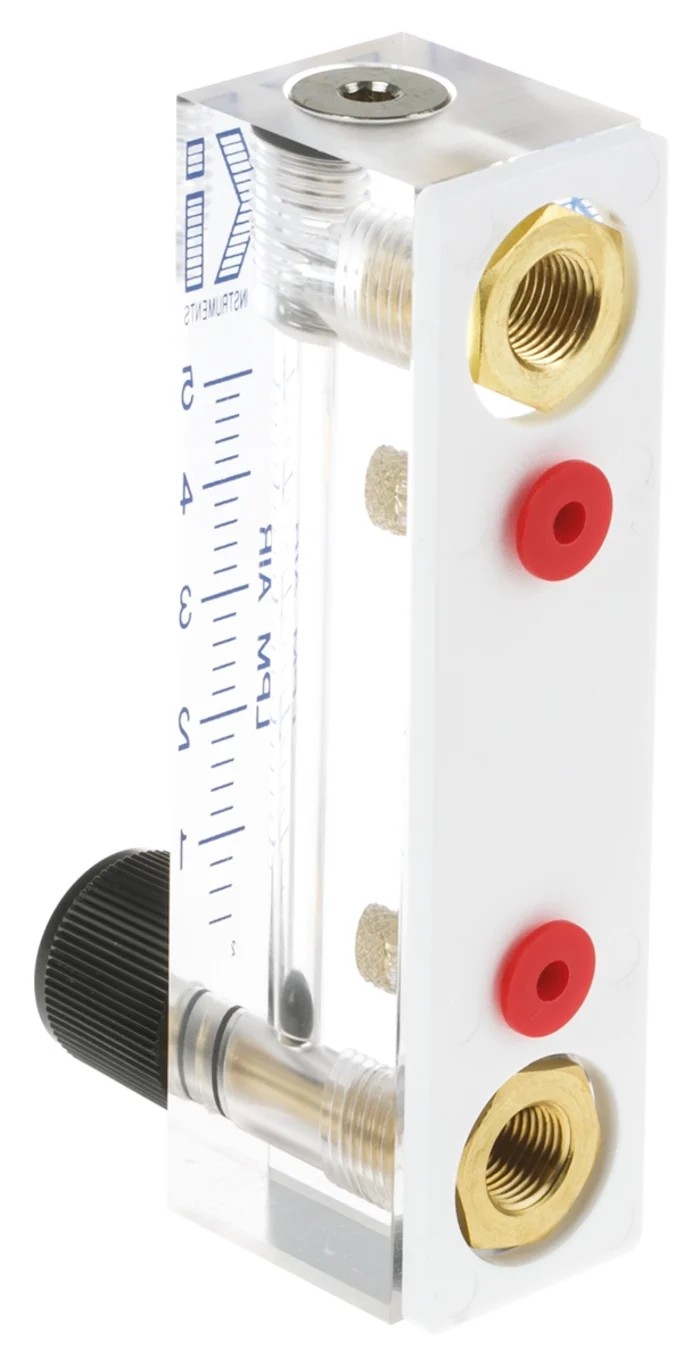

Key Instruments FR2000 Series Variable Area Flow Meter for Gas, 0.4L/min Min, 5L/min Max FR2000

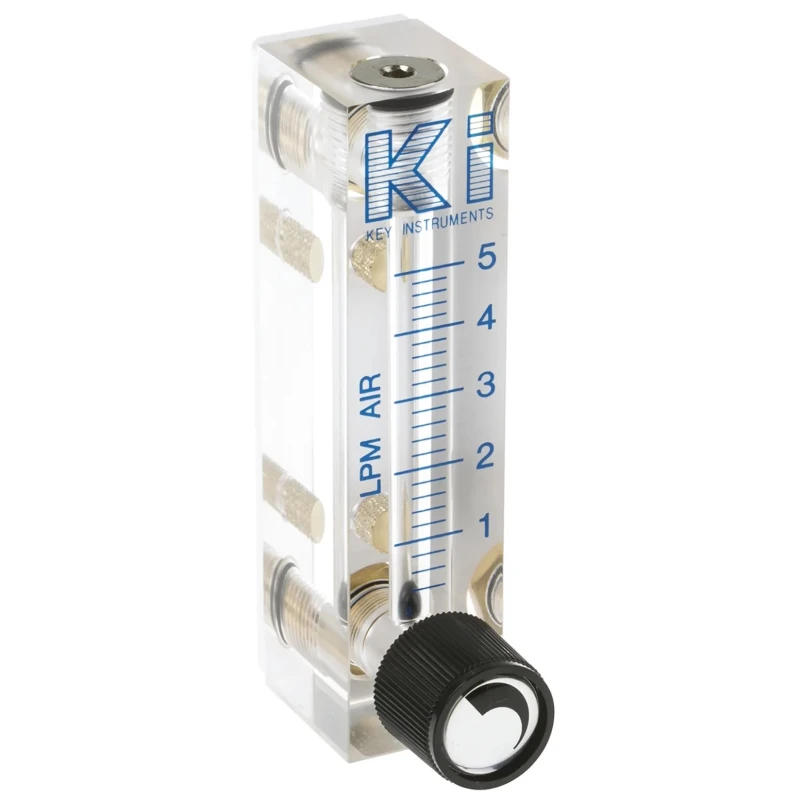

Key Instruments FR2000 Series Variable Area Flow Meter (Model: FR2000) is designed for precision measurement of gas flow within the range of 0.4L/min minimum to 5L/min maximum. Constructed with a durable acrylic housing, this flow meter operates effectively up to a maximum pressure of 6.89 bar and temperatures of 65°C, making it suitable for various industrial and laboratory applications.

The meter features a 1/8 inch NPT female connection for secure and reliable attachment to piping systems. Its robust rod-guided float ensures stable measurements and the included valve with a positive stop helps maintain flow control under pressure. The clear acrylic body allows direct reading using air or water scales in either metric or English units, offering versatility based on user preference.

This product is precision-machined as a single-piece acrylic block, enhancing its strength and durability while maintaining reliable, repeatable results. The meter supports numerous non-corrosive, low-pressure flow measurement applications such as air sampling equipment, aquaculture, desalination equipment, gas analysers, medical systems, photo processing, water treatment, and distribution systems.

The acrylic material offers clarity and robustness for long-term use. Capable of handling maximum pressure up to 6.89 bar for low-pressure infrastructures. Compact 1/8 inch NPT female connections allow versatile installation setups.

Maximum media temperature rating at 65°C suits varied industrial environments. Stable float guidance ensures consistent, repeatable flow readings. Valve with positive stop secures flow adjustment under operational conditions.

Metric and English scale options enhance measurement flexibility. Designed for effortless maintenance with simple disassembly and assembly. Suitable across diverse sectors including medical, environmental, and industrial processing.

This flow meter originates from the United States and is engineered to meet demanding project requirements with precision and durability. For more industrial-grade flow measuring solutions, explore EnvMart’s selection of Flow Meters and sensors.
