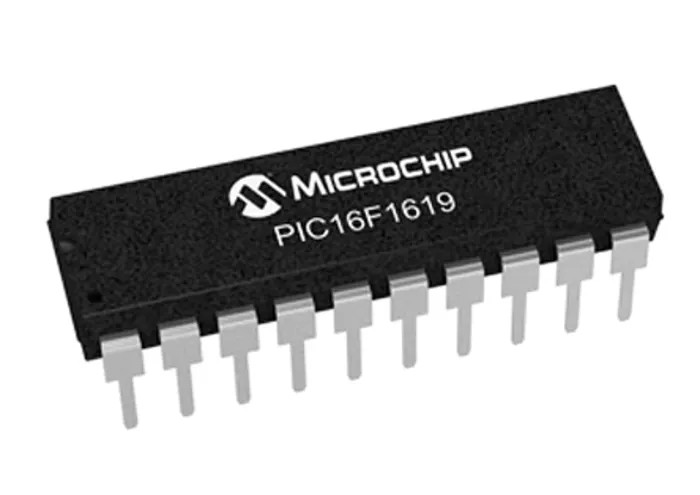

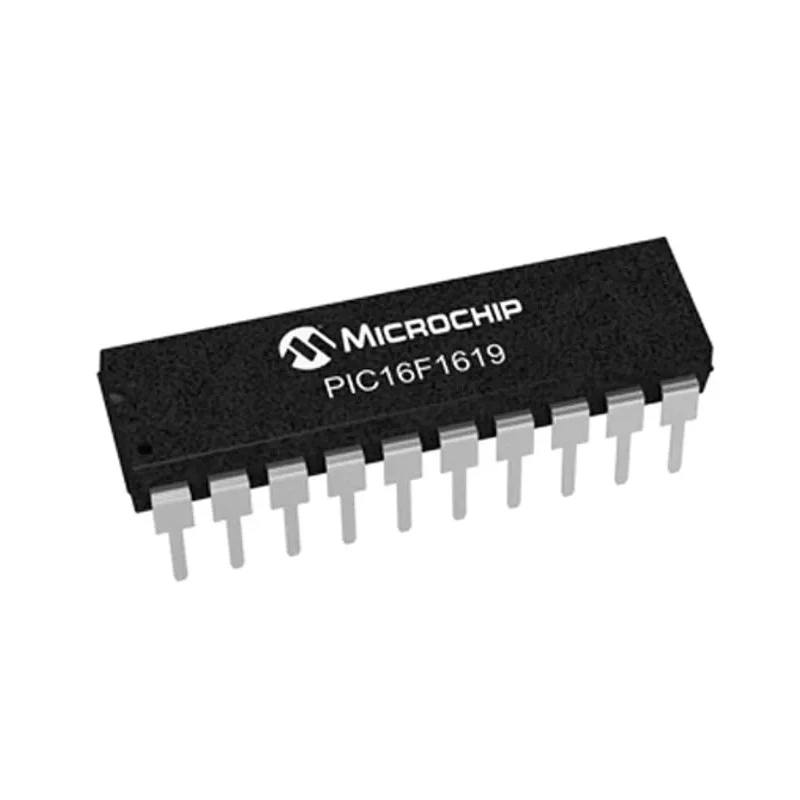

Microchip PIC16F1619-I/P 8-bit PIC16LF Microcontroller 32 MHz 14kB FLASH 20-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 5.33mm |
| Length | 26.92mm |
| Model | PIC16F1619-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16LF |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.024kB |
| Interface Type | SPI, I2C, EUSART |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Number of Timers | 7 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates on 1.8V to 5.5V supply voltage supporting low power applications.
- Includes 1.024kB RAM and 18 programmable I/O pins for versatile interfacing.
- Features multiple communication interfaces including SPI, I2C, and EUSART.
- Equipped with 12-channel 10-bit ADCs and a 5-bit DAC for analog operations.
- Operates efficiently between -40°C and 85°C ensuring wide temperature tolerance.
- Incorporates enhanced peripherals such as timers, comparators, and PWM modules.
- Utilizes FLASH program memory with in-circuit serial programming and debug support.
- Dimensioned at 26.92mm length, 7.11mm width, and 5.33mm height in a through-hole package.
Product Description
Microchip PIC16F1619-I/P is an 8-bit PIC16LF microcontroller designed for general-purpose and small motor control applications. It integrates Microchip's enhanced mid-range core and offers a maximum CPU speed of 32 MHz with 14kB FLASH program memory. The microcontroller features 18 programmable I/O pins and supports SPI, I2C, and EUSART serial communications, making it suitable for a variety of embedded systems.
This device functions over a wide operating voltage range from 1.8V to 5.5V and dissipates a maximum power of 800mW. It includes 1.024kB of RAM along with 12-channel 10-bit ADCs and a 5-bit DAC, facilitating both digital and analog interfacing needs. The microcontroller supports in-circuit serial programming (ICSP), in-circuit debugging (ICD), and low-voltage programming (LVP) for flexible development and deployment.
Other notable features include seven timers, two analog comparators, two Capture/Compare/PWM modules, and advanced peripherals like a math accelerator with PID control. Operating temperature ranges from -40°C to 85°C, ensuring reliability in harsh environments. The device comes in a 20-pin PDIP through-hole package with dimensions 26.92mm x 7.11mm x 5.33mm, appropriate for both prototyping and production applications.
Operates with RISC architecture enhancing instruction efficiency. Includes Power-On Reset and Brown-Out Reset features for stable operation. Equipped with peripheral pin select (PPS) and configurable logic cells (CLC) for flexible hardware configuration.
Supports mathematical operations acceleration, cyclic redundancy check, and windowed watchdog timer for safety and performance.
This Microchip PIC16F1619-I/P microcontroller is ideal for industrial, automotive, consumer electronics, and embedded system development requiring efficient processing and multiple analog/digital interfaces. EnvMart offers this reliable Microcontroller as a new product for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates within a supply voltage range of 1.8V to 5.5V.
This microcontroller features 14kB of FLASH program memory.
The dimensions of this unit are 26.92mm in length, 7.11mm in width, and 5.33mm in height.
It includes 18 programmable I/O pins for versatile interfacing.
This model supports SPI, I2C, and EUSART communication interfaces.
The operating temperature range is from -40°C to 85°C.
It has a RAM size of 1.024kB.
The device is equipped with 12 channels of 10-bit ADCs.
It comes in a 20-pin PDIP through-hole package.
This unit includes seven timers, two analog comparators, and two Capture/Compare/PWM modules.
