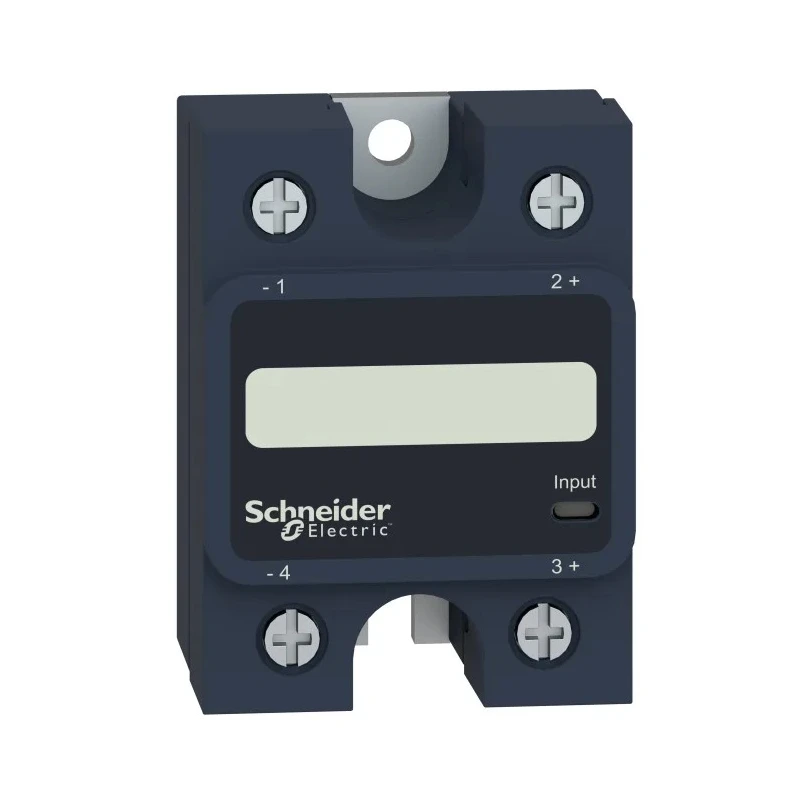

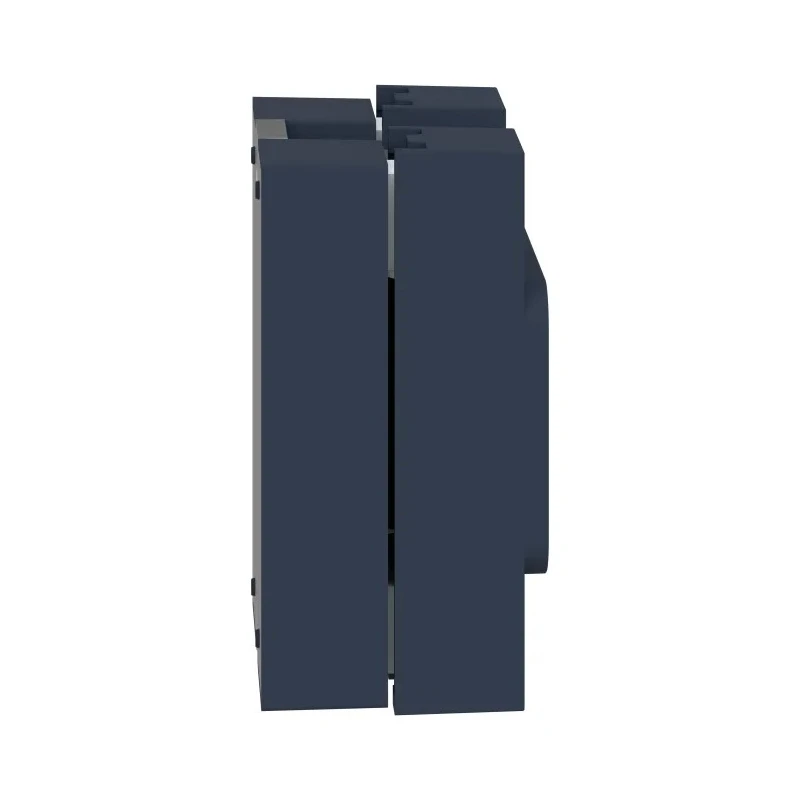

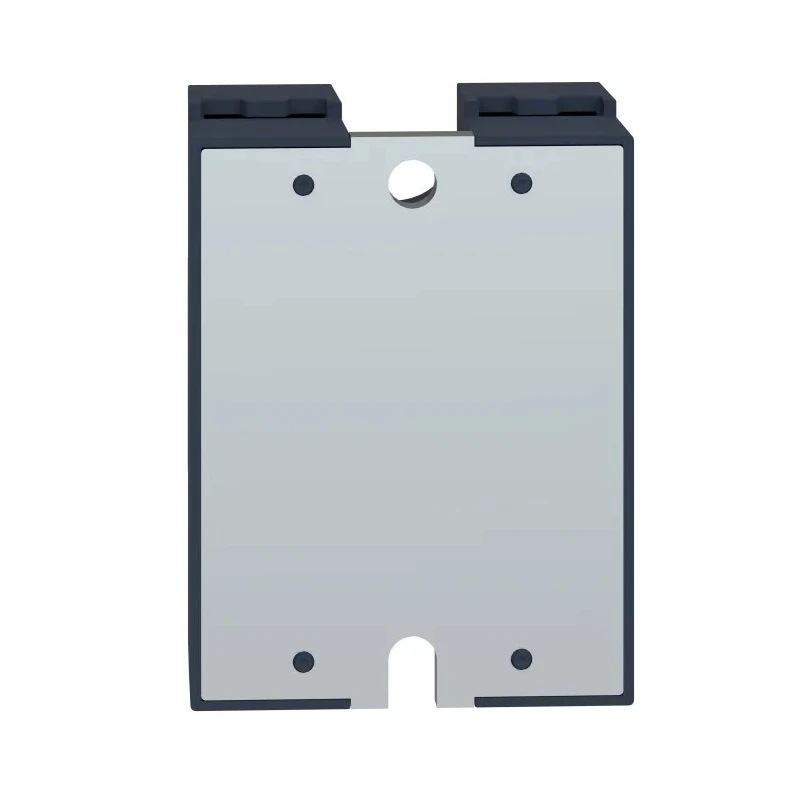

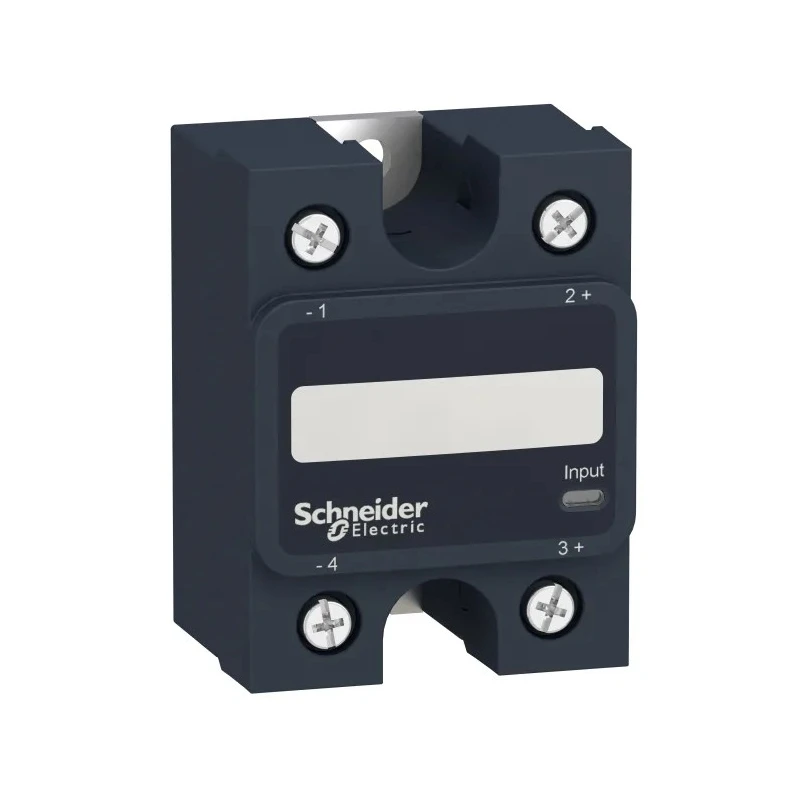

Schneider Electric Harmony Relay Series Solid State Relay, 25 A Load, Panel Mount, 300 V AC Load, 32 V DC Control SSP1A125BDT
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 58.9mm |
| Length | 44.5mm |
| Model | SSP1A125BDT |
| IP Rating | IP20 |
| Width | 34.29mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, CE |
| Maximum Load Voltage | 300V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- This relay features zero voltage switching for efficient operation.
- Panel mount design ensures easy installation and compact footprint.
- It supports a maximum operating temperature of 80°C and minimum of -40°C.
- Equipped with screw terminal type and IP20 rating for protection.
- Single Pole Single Throw (SPST) configuration with SCR output type.
- Low off-state leakage current of 1 mA minimizes power loss.
- Compact dimensions with height 58.9 mm, width 34.29 mm, and length 44.5 mm.
- Complies with UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, and CE standards.
Product Description
Schneider Electric SSP1A125BDT Solid State Relay from the Harmony Relay series is designed for industrial, automation, and electrical control applications requiring reliable switching of AC loads up to 25 amperes with panel mount configuration. It operates under control voltages ranging from 3 V dc to 32 V dc and load voltages from 24 V ac to 300 V ac, featuring zero-voltage switching to minimize electrical noise and extend equipment life.
The relay’s robust design incorporates a screw terminal interface and an IP20 protection rating, making it suitable for indoor panel mounting environments. Its durable construction ensures reliable performance across a wide operating temperature range from -40°C to 80°C. The device includes an SCR output type with single pole single throw contact configuration and maintains low off-state leakage current of just 1 mA, optimizing energy efficiency.
Dimensionally compact with a height of 58.9 mm, width of 34.29 mm, and length of 44.5 mm, this solid state relay simplifies integration into control panels where space is at a premium. The product is certified to meet multiple international standards including UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, and CE, ensuring compliance and safety for global industrial usage.
Ideal for a wide range of applications including industrial machinery control, packaging machines, HVAC equipment, injection molding, textile machinery, and building automation systems, this relay provides silent and maintenance-free operation with a full electronic lifespan.
This relay features zero voltage switching for efficient operation. Panel mount design ensures easy installation and compact footprint. It supports a maximum operating temperature of 80°C and minimum of -40°C. Equipped with screw terminal type and IP20 rating for protection.
Single Pole Single Throw (SPST) configuration with SCR output type. Low off-state leakage current of 1 mA minimizes power loss. Compact dimensions with height 58.9 mm, width 34.29 mm, and length 44.5 mm. Complies with UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, and CE standards.
Explore more Solid State Relay solutions and Schneider Electric products on EnvMart for your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 25 A.
This relay operates with control voltages ranging from 3 V DC to 32 V DC.
The relay has a height of 58.9 mm, a width of 34.29 mm, and a length of 44.5 mm.
This model has an IP20 rating for protection.
It is equipped with a screw terminal type for connections.
The relay operates within a temperature range of -40°C to 80°C.
This solid state relay features an SCR output type with a single pole single throw (SPST) configuration.
The off-state leakage current is 1 mA, which helps minimize power loss.
It complies with UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, and CE standards.
The relay features zero voltage switching to enhance efficiency and reduce electrical noise.
It is suitable for applications such as industrial machinery control, HVAC equipment, and building automation systems.
The minimum load voltage supported by this model is 24 V AC.
