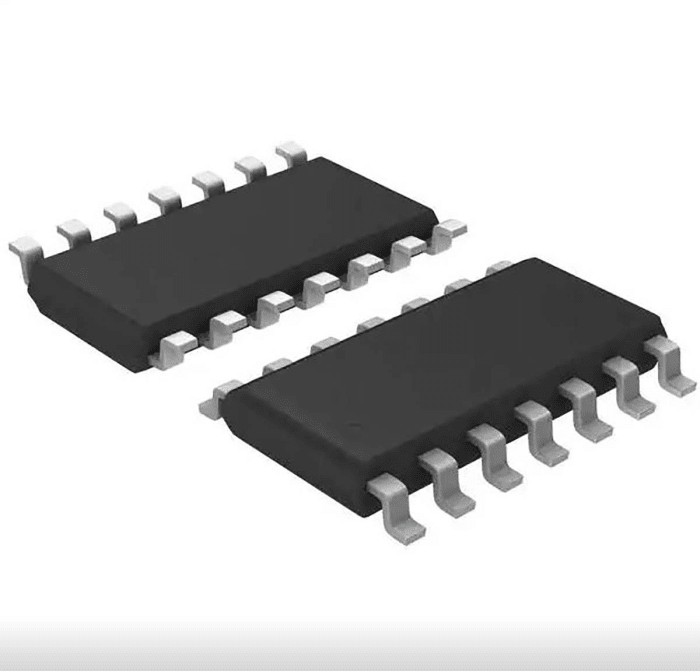

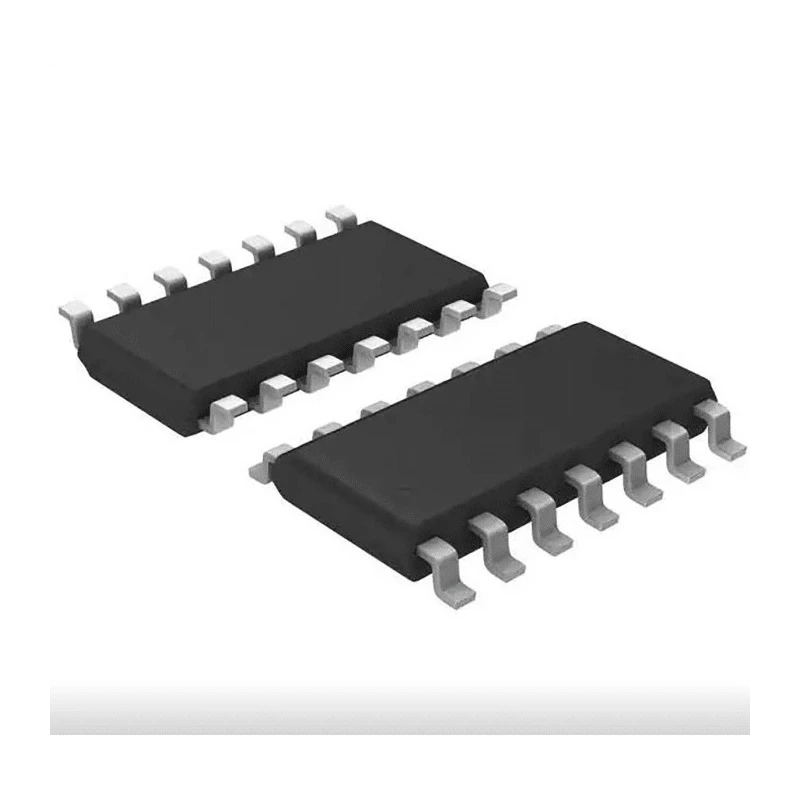

STMicroelectronics Quad Operational Amplifier 4 MHz Gain Bandwidth, 14-Pin DSO-14 Package TS924AIYDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | TS924AIYDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TS924A |
| Output Current | 80mA |
| Maximum Operating Temperature | 125°C |
| Package Type | DSO-14 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 1.8 mV |
| Slew Rate | 1.3V/μs |
| Input Offset Current | 30 nA |
Key Features
- High output current allows driving low load impedances.
- Stable operation for capacitive loads up to 500 pF.
- Operating voltage range from 5V to 12V.
- Low input bias current of 100 nA ensures precision.
- Input offset voltage of 1.8 mV and low input offset current of 30 nA.
- Slew rate of 1.3 V/μs supports fast response.
- Wide operating temperature range from -40°C to 125°C.
- Compliant with RoHS and automotive standard AEC-Q100.
Product Description
STMicroelectronics TS924AIYDT is a high-performance quad operational amplifier featuring a 4 MHz gain bandwidth product. This device is housed in a 14-pin DSO-14 surface mount package and operates over a voltage range from 5V to 12V, enabling versatile application in diverse industrial and automotive electronics.
Designed for precise analog signal manipulation, it exhibits low input bias current (100 nA), low input offset voltage (1.8 mV), and low input offset current (30 nA), ensuring high accuracy. The slew rate of 1.3 V/μs facilitates rapid signal processing for dynamic circuits.
The amplifier can deliver an output current up to 80 mA and offers stability with capacitive loads up to 500 pF, suitable for driving low impedance loads effectively. The device operates reliably over the wide temperature range of -40°C to 125°C, meeting the demanding requirements of automotive-grade applications with AEC-Q100 certification.
Its compact DSO-14 package with dimensions 8.75 mm length, 4 mm width, and 1.75 mm height, enables space-efficient PCB designs. Compliance with RoHS standards ensures environmentally responsible manufacturing.
High output current enables low load impedance driving. Stable operation with capacitive loads up to 500 pF. Operating voltage range of 5V to 12V for flexible power supply options. Low input bias current of 100 nA for precision signal handling.
Input offset voltage of 1.8 mV supports accuracy. Fast slew rate of 1.3 V/μs for dynamic response. Wide temperature operation from -40°C to 125°C ensures reliability. Meets automotive AEC-Q100 quality standards. Compact surface mount DSO-14 package dimensions (8.75 x 4 x 1.75 mm).
This operational amplifier is ideal for industrial, automotive, instrumentation, and consumer electronics requiring precise amplification and stable operation under challenging electrical and environmental conditions. It supports design requirements from signal conditioning to filtering and control circuits in manufacturing, automotive systems, and HVAC equipment.
Explore more STMicroelectronics components and Operational Amplifiers on EnvMart for comprehensive electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS924AIYDT has a gain bandwidth product of 4 MHz, allowing it to handle a variety of signal processing tasks effectively.
This model can deliver an output current of up to 80 mA, making it suitable for driving low load impedances.
It operates over a voltage range from 5V to 12V, providing flexibility in power supply options for various applications.
The DSO-14 package has dimensions of 8.75 mm in length, 4 mm in width, and 1.75 mm in height, facilitating space-efficient PCB designs.
The input offset voltage is 1.8 mV, which contributes to its precision in analog signal manipulation.
The slew rate of this model is 1.3 V/μs, allowing for rapid signal processing in dynamic circuits.
It operates reliably over a wide temperature range from -40°C to 125°C, suitable for automotive and industrial applications.
This model is compliant with RoHS standards and meets the automotive standard AEC-Q100, ensuring quality for automotive applications.
This operational amplifier features four channels, allowing for multiple signal processing tasks in a single package.
The input bias current is 100 nA, which supports its precision in handling analog signals.
It supports surface mounting, making it suitable for compact electronic designs.
The input offset current is 30 nA, contributing to the overall accuracy of the amplifier.
