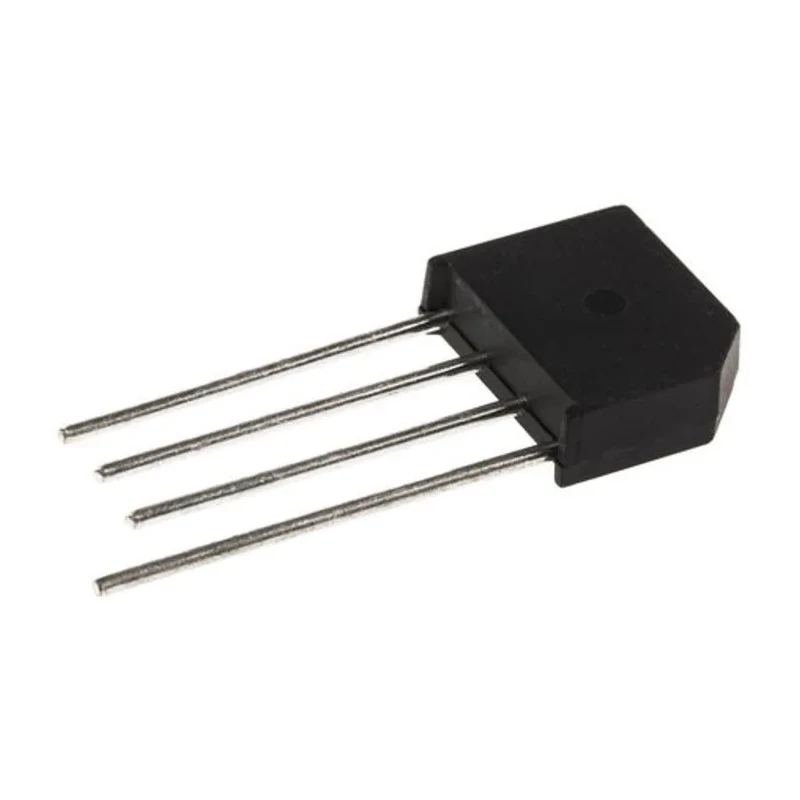

Vishay Bridge Rectifier, 600 V 200 A, 4-Pin Single KBL06-E4/51

Vishay KBL06-E4/51 Bridge Rectifier is a semiconductor device designed for efficient full-wave rectification of alternating current (AC) into direct current (DC). Its 600 V peak reverse repetitive voltage rating and 200 A peak surge capability make it suitable for demanding power conversion applications. The device uses a 4-pin through-hole mount package that simplifies PCB integration.

Constructed to operate reliably up to 150°C, this bridge rectifier provides consistent forward current of 4 A with a low peak forward voltage of 1.1 V, ensuring efficient power usage and minimal losses. Its compact size (19.5 mm length, 6.5 mm width, 16.3 mm height) allows installation in space-constrained environments.

This model features high dielectric strength of 1500 Vrms and supports a minimum operating temperature of −55 °C, making it versatile for various industrial, electronic, and power supply applications. The single-phase, single-configuration design ensures stable polarity in DC output regardless of AC input polarity.

Typical use cases include industrial power rectification systems, laboratory power supplies, manufacturing equipment, and general electronics requiring reliable DC power. The device is packaged for through-hole mounting facilitating easy PCB soldering.

Full-wave single-phase bridge rectifier with 4 pins. Supports forward current of 4 A and surge current of 200 A. High temperature tolerance up to 150°C operating temperature. Compact package with KBL series mounting style.

High case dielectric strength of 1500 Vrms. Wide operating temperature range from −55 °C to 150 °C. Efficient conversion of AC to stabilized DC output. Suitable for industrial, laboratory, electronic, and power supply applications.

Choose Vishay for dependable bridge rectifier solutions ensuring performance and durability in critical electronic systems. Explore more in the Bridge Rectifier category on EnvMart for comprehensive product selection.
