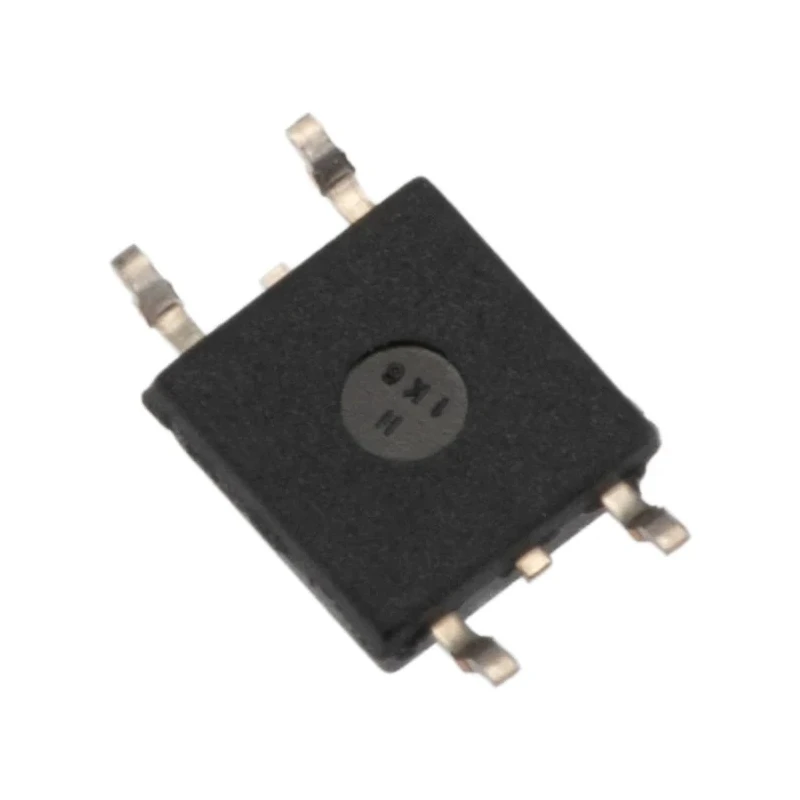

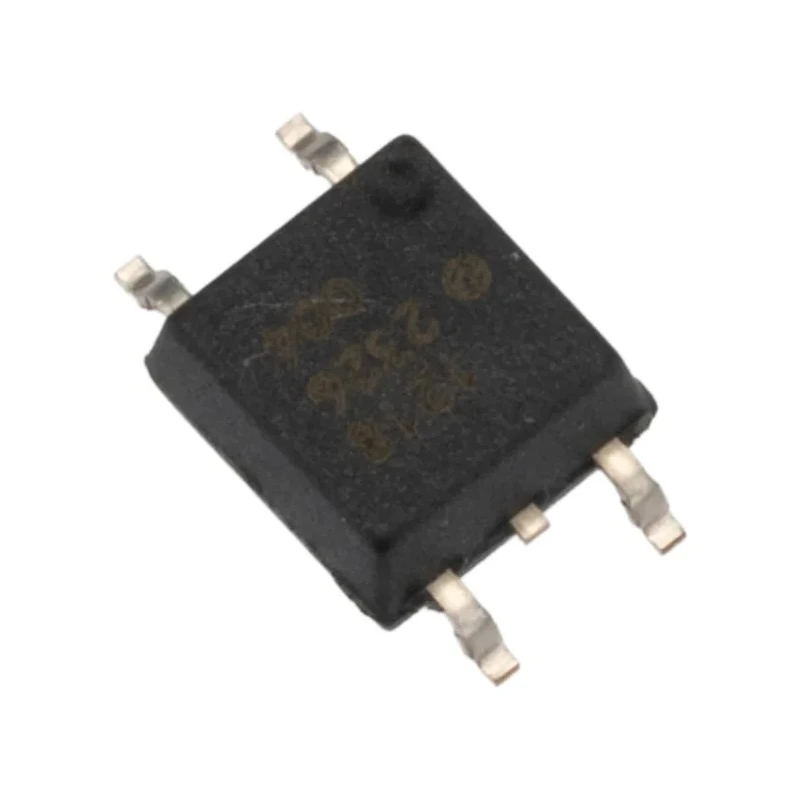

Broadcom Solid State Relay ASSR-1218-003E 0.2A Load, Surface Mount, 60V Load, 0.8V Control

Broadcom ASSR-1218-003E is a high-performance Solid State Relay designed for low-current DC load control with a maximum current rating of 0.2A and load voltage of up to 60V. Its surface mount package and compact footprint (4.4mm width, 4.3mm length, 2mm height) make it ideal for dense electronic assemblies requiring fast, efficient switching.

The relay features a MOSFET output stage delivering low conduction losses with a 1Ω on-state resistance, ensuring minimal voltage drop and efficient operation. It operates reliably in a wide ambient temperature range from -40°C up to 85°C, suitable for various industrial and commercial environments.

The input control voltage ranges from 1.1V for activation with an upper specified limit of 0.8V control voltage, providing precise switching performance. It tolerates reverse load voltages down to -60V while maintaining off-state leakage current below 1μA to reduce standby power consumption. The device’s 0.4pF capacitance helps minimize signal coupling during switching, ideal for sensitive measurement and communication circuits.

Applications for the Broadcom ASSR-1218-003E include battery management systems, portable power control circuits, telecommunications line switching, industrial automation control logic interfaces, and miniature relay replacements on dense boards. It is supplied as a 4-pin surface mount device with SPST contact configuration.

The relay conforms to stringent regulatory standards including IEC, RoHS, CSA, and UL approvals, ensuring compatibility with global safety and environmental requirements. This solid-state relay is an optimal choice for engineers seeking reliable, compact, and energy-efficient DC load switching solutions.

Enhance your electronic system with Broadcom Solid State Relays available through EnvMart, trusted for industrial, laboratory, automotive, and communication applications. MOSFET output minimizes conduction loss with 1Ω on-state resistance.

Supports maximum load current of 0.2A suitable for low-current circuits. Operates reliably between -40°C and 85°C ambient temperatures. Features low leakage current of 1μA for minimal standby power consumption. Compact 4.4mm x 4.3mm x 2mm dimensions for dense PCB layouts.

Input control voltage range from 1.1V activation to 0.8V control voltage maximum. Rated for load voltages between -60V minimum and 60V maximum. Compliance with IEC, RoHS, CSA, and UL standards ensures safe and reliable use.
