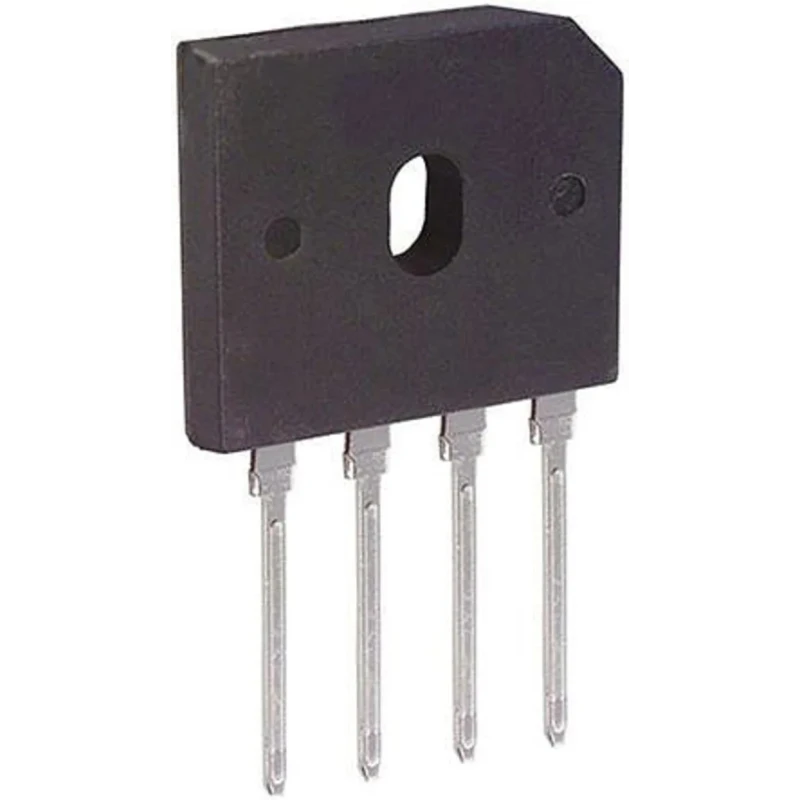

onsemi Bridge Rectifier, 600 V, 200 A, 4-Pin Through Hole GBU Series GBU8J

onsemi GBU8J Bridge Rectifier is a single-phase electronic component designed for efficient rectification of AC to DC in industrial electronics and power supply applications. It is rated at a maximum peak reverse repetitive voltage of 600 volts and a forward current of 8 amperes, suitable for demanding electrical environments.

Featuring a 4-pin through hole GBU package, it is ideal for mounting on printed circuit boards, providing robust electrical connectivity and thermal performance. The device supports operation in extreme temperatures ranging from -55°C to 150°C, making it reliable across diverse industrial conditions.

The GBU8J bridge rectifier is built with a glass passivated structure that improves longevity and reduces leakage currents, featuring a maximum peak reverse current of 5 microamperes. It delivers a peak non-repetitive forward surge current up to 200 amperes, accommodating surge events common in power electronics.

Compact physical dimensions of 22.3 mm length, 18.8 mm width, and 3.56 mm height facilitate easy integration into electronic assemblies with space constraints.

This bridge rectifier is suitable for various industrial, power supply, and electronic control systems requiring high current and voltage rectification with low forward voltage drop of 1 volt, improving efficiency.

Rated at 600 V peak reverse repetitive voltage for robust AC to DC conversion. Forward continuous current of 8 A supports moderate power applications. Withstands 200 A peak forward surge current ensuring durability under transient conditions.

Wide operating temperature range (-55°C to 150°C) ensures reliability in harsh environments. Compact GBU package type with 4 pins for ease of PCB mounting. Glass passivated construction minimizes leakage current and enhances durability.

Peak forward voltage of 1 V reduces conduction losses and increases efficiency. Ideal for single-phase applications in industrial and power electronics. Not certified for automotive use but suitable for general industrial electronics.

Set contains 1 Pc Bridge Rectifier GBU8J. Explore the Electronics & Electricals category at EnvMart for other semiconductor and Bridge Rectifier products.
