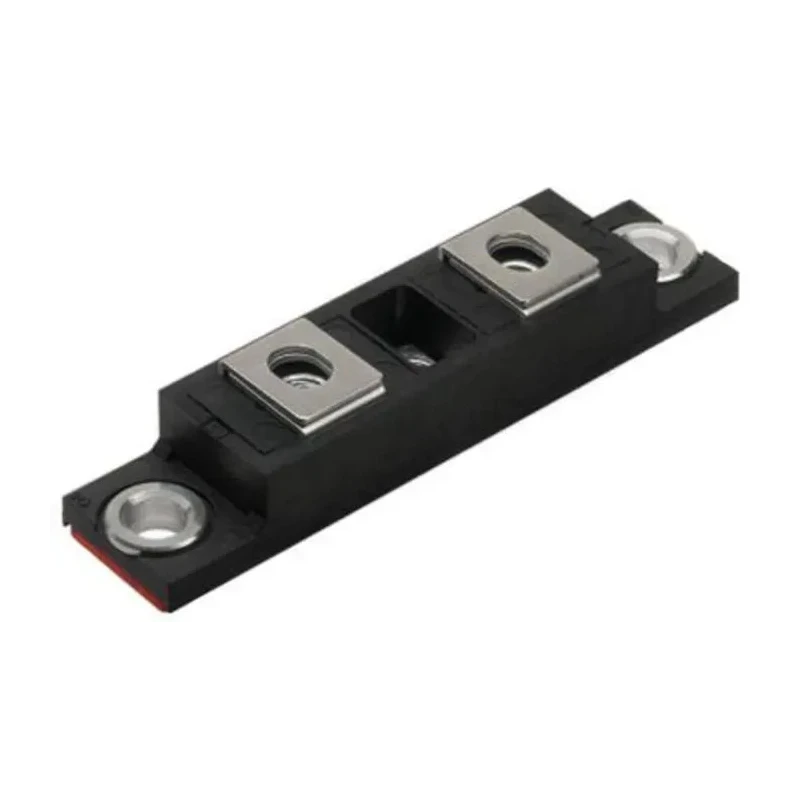

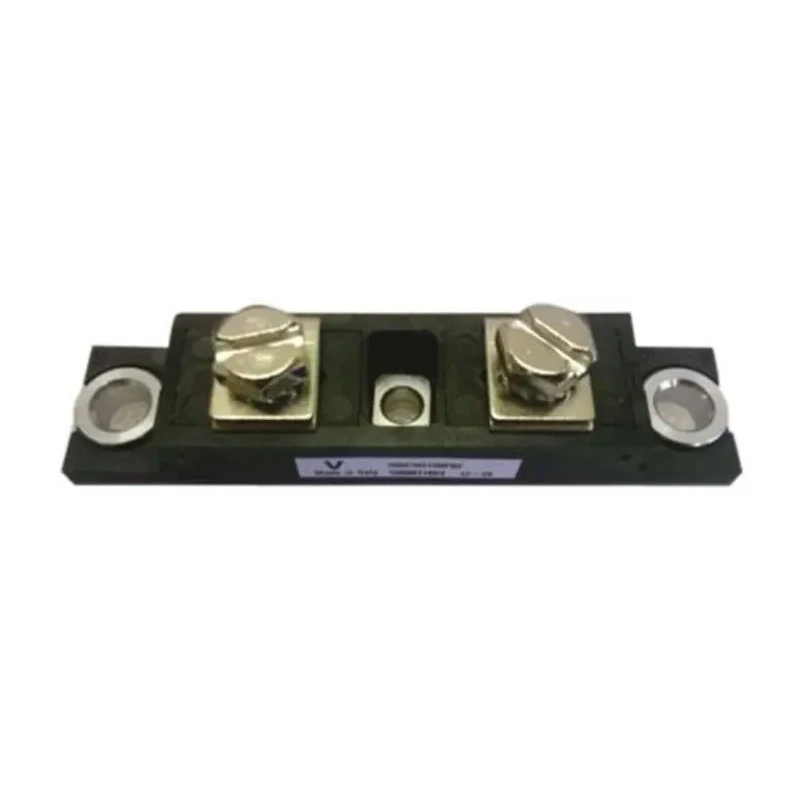

Vishay 45 V 300 A Schottky Diode Surface Mount TO-244 Package VS-301CNQ045PbF

Vishay VS-301CNQ045PbF is a Schottky diode designed specifically for industrial and electronic applications requiring fast switching and low power loss. Featuring a TO-244 surface mount package, this diode supports a maximum continuous forward current of 300 amps and a peak reverse repetitive voltage of 45 volts. Its low forward voltage drop of 900 millivolts minimizes conduction losses, improving efficiency in power rectification circuits.

This diode exhibits a common cathode configuration with three pins, facilitating straightforward connection within complex circuit topologies. It withstands peak non-repetitive forward surge currents up to 16 kiloamps, making it robust against transient events. The operating temperature range from minus 55 degrees Celsius up to 175 degrees Celsius allows usage in diverse environments including industrial, manufacturing, and power supply units.

The physical dimensions include a length of 93 millimeters, width of 21 millimeters, and a height and diameter both measuring 17.5 millimeters. Although this component does not conform to automotive standards, it is suitable for a wide range of commercial and industrial electronic applications where high electrical performance and reliability are critical.

Key technical features include low thermal resistance and extremely fast switching speeds inherent to Schottky rectifiers, ensuring efficient power management with reduced heat generation. These characteristics make the Vishay VS-301CNQ045PbF an excellent choice for semiconductor discrete circuits such as power supplies, solar inverters, and motor drives.

Designed for surface mount with TO-244 package type. Maximum continuous forward current of 300 A suitable for high power circuits. Peak reverse repetitive voltage of 45 V for reliable operation. Low forward voltage drop of 900 mV to minimize power loss.

High peak non-repetitive forward surge current up to 16 kA for transient conditions. Wide operating temperature range from -55°C to 175°C for harsh environments. Three-pin common cathode configuration ensures easy integration.

Compact dimensions: length 93 mm, width 21 mm, height and diameter 17.5 mm. Meets stringent requirements without automotive standard certifications. Ideal for switching, rectification, and power conversion in industrial electronics.

This diode belongs in the Schottky Diodes & Rectifiers category, and is essential for industrial, manufacturing, power electronics, and electronic component manufacturing environments. For customers seeking reliable semiconductor discrete diodes with fast switching and high current handling capabilities, the VS-301CNQ045PbF presents an optimal solution. Explore other Vishay semiconductor products and components within the EnvMart platform for comprehensive electronic component sourcing.
