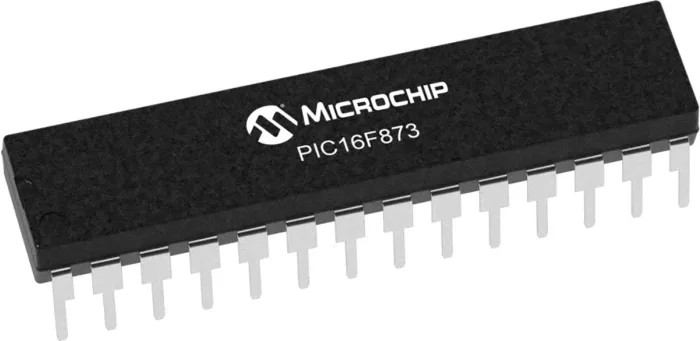

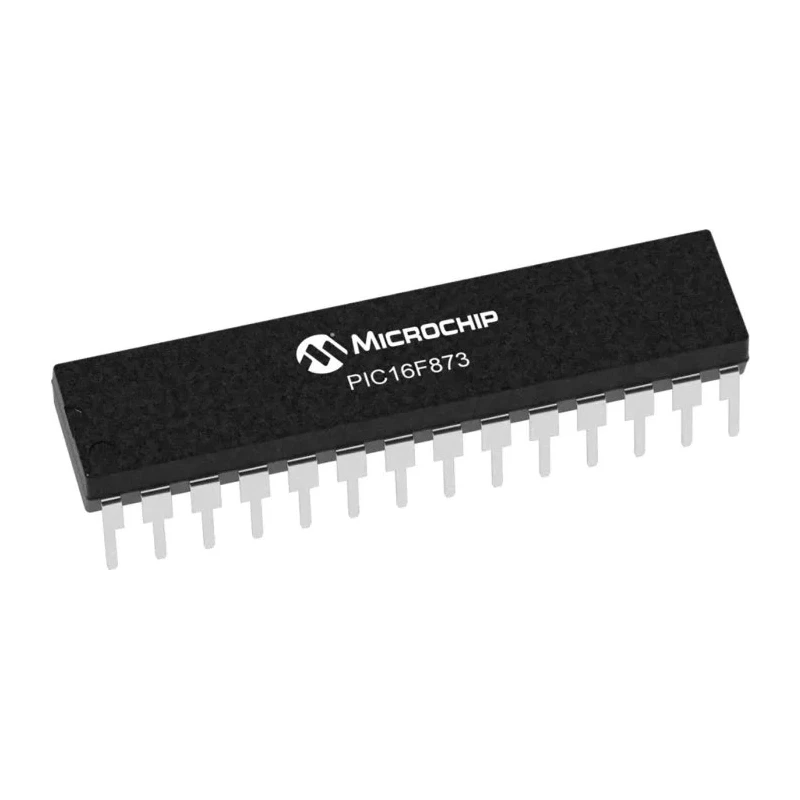

Microchip PIC16F873-20I/SP 8-bit PIC Microcontroller 20 MHz 7kB FLASH 28-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC16F873-20I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 192bit |
| Interface Type | MSSP, PSP, USART |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes PIC16F series mid-range architecture with 35 instructions.
- Features 22 programmable I/O pins and 192-bit RAM size.
- Supports MSSP, PSP, and USART interface types.
- Operates within voltage range of 2V to 5.5V for versatile applications.
- Temperature range from -40°C to 85°C supports robust industrial use.
- Includes 3 timers and 5 ADC channels of 10-bit resolution.
- Power-On Reset, Brown-Out Reset, Watchdog Timer, and In-Circuit Debug available.
- Standard 28-pin PDIP through-hole package for easy prototyping.
Product Description
Microchip PIC16F873-20I/SP is a high-performance 8-bit PIC microcontroller designed for a variety of industrial and embedded applications. It operates at a maximum clock frequency of 20 MHz, providing efficient processing power suitable for real-time control tasks.
Featuring 7kB of FLASH program memory, this microcontroller allows for flexible program storage and is part of the PIC16F family, known for its mid-range core architecture with an 8-level deep hardware stack. It supports PIC instruction set architecture (RISC) with 35 instructions for streamlined software development.
The device incorporates 22 programmable I/O pins, making it ideal for interfacing with sensors, actuators, and user interface components. Communication interfaces supported include MSSP, PSP, and USART, enabling various serial communication protocols.
Operating voltage range of 2V to 5.5V and temperature range from -40°C to 85°C make it robust for industrial, commercial, and harsh environment applications. It includes features such as Power-On Reset (POR), Brown-Out Reset (BOR), Watchdog Timer (WDT), and In-Circuit Serial Programming (ICSP) allowing in-system updates and debugging.
Mid-range architecture PIC16F microcontroller family. 20 MHz maximum CPU speed ensuring responsive processing. 7kB FLASH memory and 192-bit RAM capacity. Supports serial communication via MSSP, PSP, and USART. Wide operating voltage and temperature range for industrial use.
Multiple timers and 10-bit ADC channels included. Robust reset and power management features. 28-pin PDIP package suitable for prototyping and development. Compliance with RoHS environmental standards.
This Microcontroller is well-suited for industrial automation, consumer electronics, instrumentation, and embedded system designs requiring reliable 8-bit processing with versatile peripheral support. Its through-hole 28-pin PDIP package facilitates easy integration and testing during product development cycles.
EnvMart offers this Microchip PIC16F873-20I/SP as part of its comprehensive electronics components portfolio, supporting engineering and manufacturing needs across laboratories, industrial processing equipment, and embedded electronics sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, providing efficient processing power for real-time control tasks.
It features a program memory size of 7kB, allowing for flexible program storage.
This microcontroller has 22 programmable I/O pins, making it suitable for interfacing with various components.
It supports MSSP, PSP, and USART interface types for various serial communication protocols.
The operating voltage range is from 2V to 5.5V, making it versatile for different applications.
The temperature range is from -40°C to 85°C, which supports robust industrial use.
It includes 5 ADC channels, each with a 10-bit resolution.
This model comes in a standard 28-pin PDIP through-hole package, facilitating easy prototyping.
It includes Power-On Reset (POR), Brown-Out Reset (BOR), and a Watchdog Timer (WDT) for effective power management and system reliability.
The RAM size is 192 bits, which supports the microcontroller's processing capabilities.
It complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substances.
The dimensions are 3.43 mm in height, 35.18 mm in length, and 7.49 mm in width.
