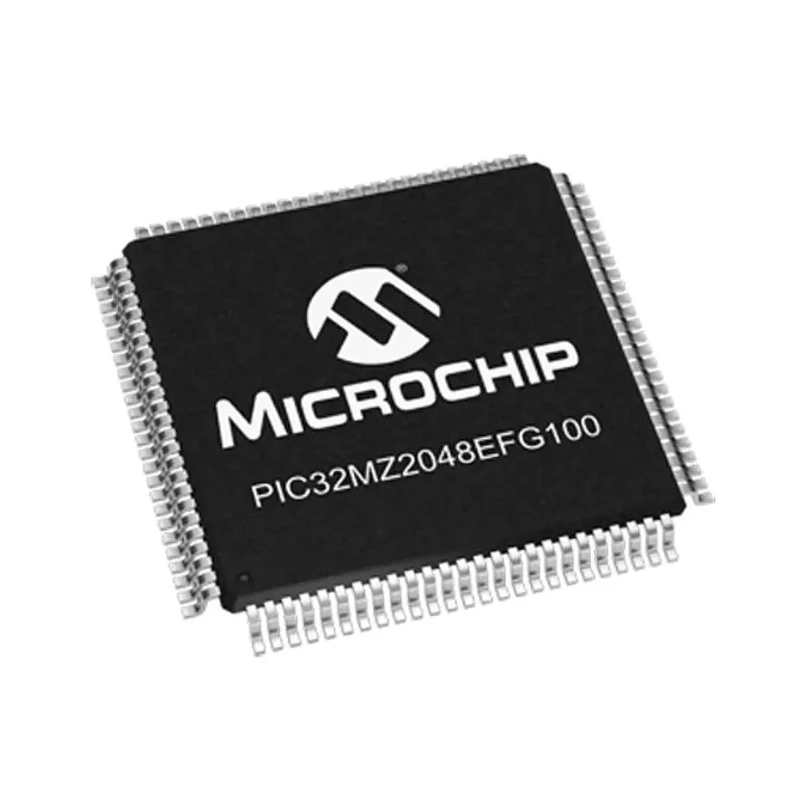

Microchip 32 bit MIPS MicroAptiv Microcontroller 200 MHz 160kB FLASH 100-Pin TQFP PIC32MZ2048EFG100-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC32MZ2048EFG100-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Maximum Operating Temperature | +85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 512kB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 905-5214Brand: MicrochipManufacturers Part No.: PIC32MZ2048EFG100-I/PT |
| Pin Count | 100 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.1V |
| Device Core | MIPS MicroAptiv |
| Program Memory Size | 160kB |
| Maximum Clock Frequency | 200MHz |
| Number of Programmable I/Os | 78 |
| Analogue Comparators | 2 |
| Number of Timers | 9 |
| Instruction Set Architecture | Harvard |
| ADCs | 40 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- Powered by a MIPS32® 32-bit M-Class Core delivering 200 MHz maximum frequency.
- Integrates a Floating Point Unit (FPU) for fast single and double-precision maths operations.
- Features 160kB Flash program memory and 512kB RAM size for efficient multitasking.
- Includes 78 programmable I/Os and 9 timers for flexible peripheral interfacing.
- Operates between -40°C and +85°C with 2.1V to 3.6V supply voltage range.
- Equipped with 40 10-bit ADC channels and 2 analogue comparators for precise signal processing.
- Utilizes a 100-pin TQFP surface mount package measuring 12mm x 12mm x 1.05mm.
- Supports automotive standard AEC-Q100 for reliability in demanding applications.
Product Description
Microchip PIC32MZ2048EFG100-I/PT is a high-performance 32-bit MIPS MicroAptiv Microcontroller operating at up to 200 MHz, featuring 160kB Flash memory and a 100-Pin TQFP package. It is designed for demanding embedded applications requiring high computational power and extensive peripheral integration.
This microcontroller incorporates a hardware Floating Point Unit (FPU) supporting fast single and double-precision mathematics calculations, suitable for process-intensive and high-speed tasks. It includes 512kB of RAM and a large number of I/O pins (78 programmable) to fulfill complex interfacing needs.
Operating voltage ranges from 2.1V to 3.6V and the device supports a temperature range of -40°C to +85°C, making it reliable in harsh environments. The package dimensions are 12mm length by 12mm width and 1.05mm height in a surface-mount TQFP format.
Peripheral features include USB 2.0-compliant Hi-Speed On-The-Go controller, two CAN modules, six UART modules, multiple SPI and I2C interfaces, an Ethernet controller, crypto engine with RNG, 40 10-bit ADC channels, and multiple timers and comparators. These make it ideal for applications such as high-impact graphics, user interfaces, embedded control, and communication systems.
The microcontroller adheres to automotive standard AEC-Q100, providing enhanced reliability. It is supported by Microchip's MPLAB Harmony Integrated Software Framework which facilitates faster development and time-to-market.
Powered by 200 MHz MIPS32 32-bit MicroAptiv Core with FPU. 160kB Flash memory and 512kB RAM for robust applications. 100-Pin TQFP surface mount package measuring 12 x 12 x 1.05 mm. Wide operating temperature from -40°C to +85°C and supply voltage from 2.1V to 3.6V.
Extensive peripheral support including USB, CAN, UART, SPI, I2C, ADC, Ethernet, and crypto engine. Designed for high-performance embedded applications and automotive use. Supported by Microchip MPLAB Harmony software platform for development.
This microcontroller is suitable for industrial, automotive, and communication equipment applications where high-speed processing and connectivity are essential. It offers a balance of computing power, rich peripherals, and power management features for modern embedded system designs.
Explore more Microchip Microcontrollers and related components on EnvMart for your embedded systems projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 200 MHz.
It operates with a supply voltage range of 2.1V to 3.6V.
This model features a RAM size of 512kB.
It includes 78 programmable I/Os for flexible peripheral interfacing.
It is housed in a 100-Pin TQFP package, measuring 12mm x 12mm x 1.05mm.
The operating temperature range is from -40°C to +85°C.
It supports various interfaces including USB 2.0, CAN, UART, SPI, and I2C.
Yes, it includes 40 10-bit ADC channels and 2 analogue comparators for signal processing.
It complies with the automotive standard AEC-Q100, ensuring reliability in demanding applications.
The program memory size is 160kB, stored in FLASH.
This microcontroller includes 9 timers for various timing applications.
It is powered by a MIPS32 32-bit MicroAptiv core, which includes a Floating Point Unit (FPU).
