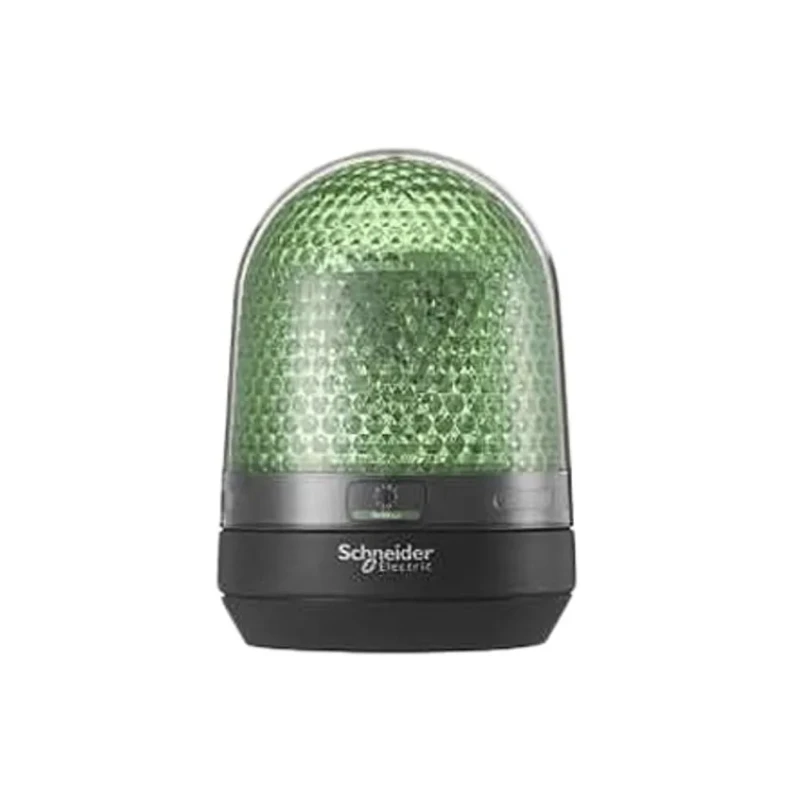

Schneider Electric Harmony XVR Series Green Beacon-Buzzer Combination 253V DC 90 dB IP23 XVR3B03S

Schneider Electric XVR3B03S Harmony XVR Series Green Beacon-Buzzer Combination is an advanced motor-less LED signalling device operating at 253V DC delivering a powerful 90 dB sound output at 1 meter. This industrial-grade beacon combines visual and audible alerts with rotating and flashing green LED light effects, designed primarily for factory automation, construction vehicles, and public safety environments.

The unit’s polycarbonate housing offers robust protection with an IP23 rating, complemented by an integrated rubber base enhancing vibration resistance up to 7.1G. Operating within a temperature range of -20°C to 70°C, the device is engineered for durability and reliable performance in harsh industrial settings.

The beacon integrates a buzzer capable of adjustable sound levels from 70 dB to 90 dB via an external volume control. It features a faceted lens to extend the lighting area and ensure high visibility. The versatile design allows for upright mounting and both straight and side wiring installation methods without the need for specialized tools.

Certified under CE and compliant with RoHS directives, the product meets rigorous safety and environmental standards. The beacon’s compact design and multi-functional capabilities have been recognized with the 2014 Red Dot industrial design award, emphasizing its innovative and ergonomic solution for signalling.

The connection is secured via 400 mm flying leads using a 0.57 mm² cross-section wire, simplifying integration into existing electrical systems. Suitable applications range from industrial automation systems, construction vehicle safety, to public area signalling, ensuring wide usage across industries.

The beacon features a rotating and flashing green LED light effect for high visibility. It operates at a maximum supply voltage of 253V DC with a current consumption of 3A. The integrated buzzer produces an adjustable sound level between 70 dB and 90 dB.

The robust polycarbonate housing ensures durability with an IP23 rating for protection. The device supports upright mounting and facilitates both straight and side wiring for ease of installation. Operating temperature range is from -20°C to 70°C suited for industrial environments.

It includes a faceted lens design that extends the lighting area and enhances visibility. The beacon and buzzer combination is CE certified and RoHS compliant for safety and environmental standards. The product includes a rubber base that improves the overall IP protection and vibration resistance up to 7.1G.

Suitable applications include factory automation, construction vehicles, and public safety signalling. Explore the comprehensive range of Schneider Electric automation signalling products at EnvMart for reliable and high-performance industrial control solutions.
