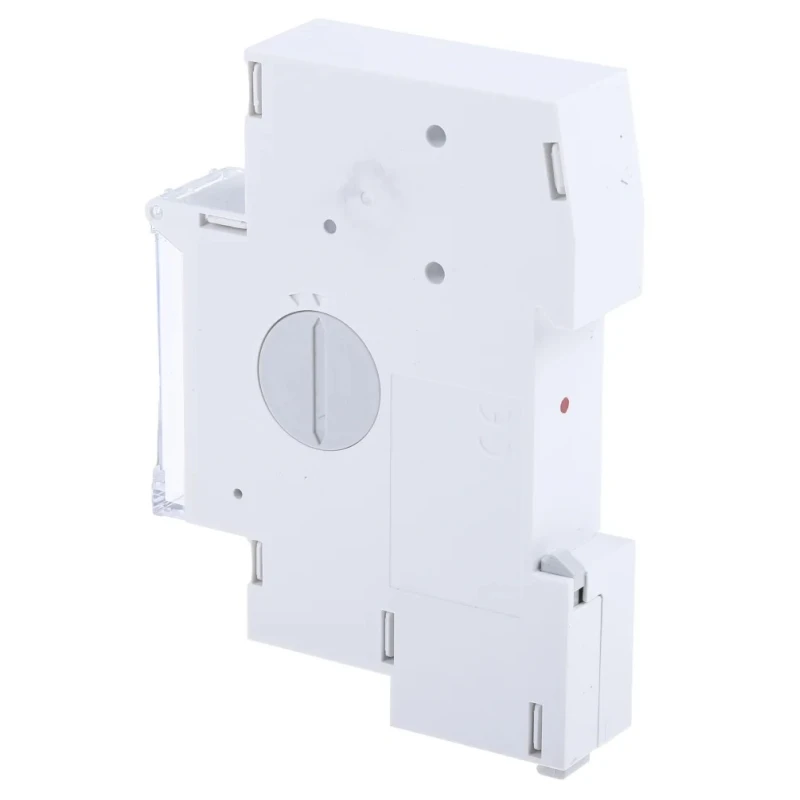

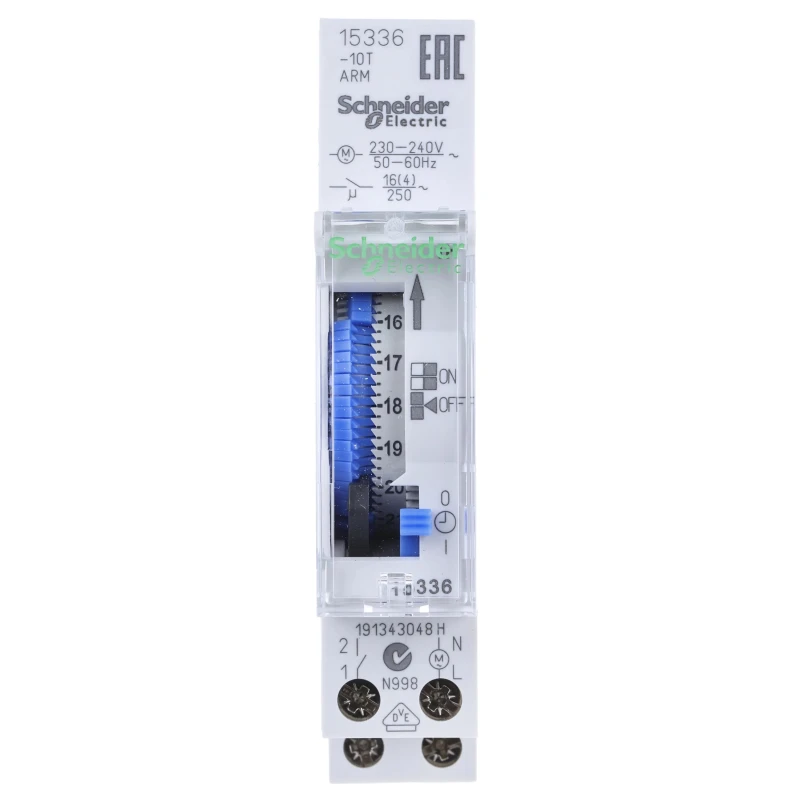

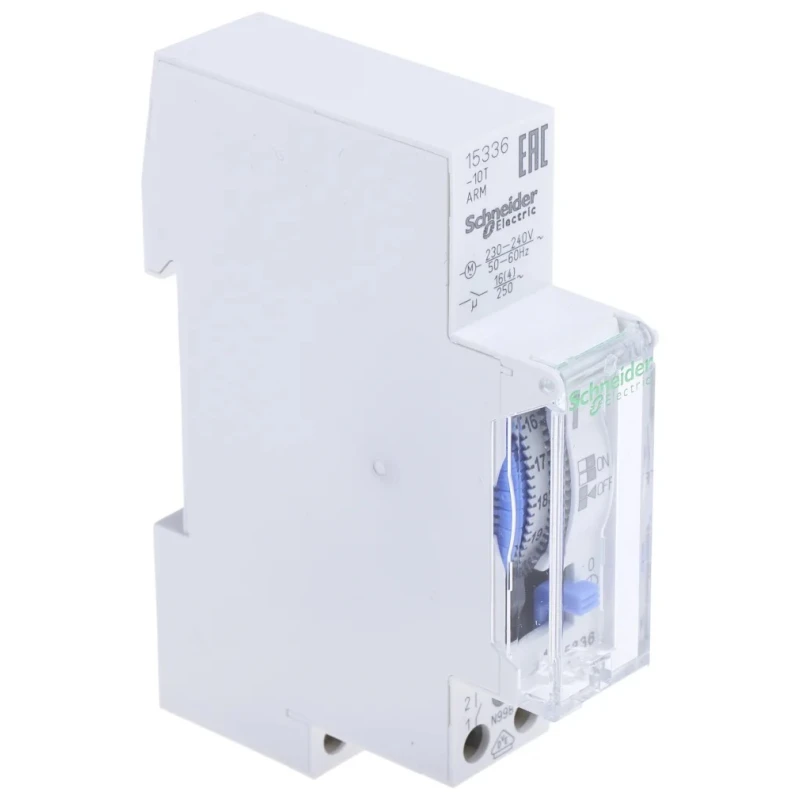

Schneider Electric Analogue Acti9 DIN Rail Time Switch 230V AC 10 Year Battery Life 1 Channel 90mm Height 66mm Depth
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Schneider Electric |
| Battery Life | 10year |
| Height | 90mm |
| Model | Acti9 |
| Depth | 66mm |
| Series | Acti9 |
| Sub Type | Analogue |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, EN 60730-2-7:2010, REACH, CE |
| Maximum Supply Voltage | 230V ac |
| Units Measured | Hours |
| Standards/ApprovalsRoHS, EN 60730-2-7 | 2010, REACH, CE |
Key Features
- Designed for DIN rail mounting with 54mm width and 90mm height.
- Manual time changeover functionality supports 60 minutes, 24 hours, and 7 day settings.
- Equipped with screw-type terminals for safe and secure connections.
- Provides IP20 B level protection ensuring safety in industrial environments.
- Lightweight product with 0.101 kg weight for easy installation.
Product Description
Schneider Electric Acti9 Analogue DIN Rail Time Switch 230V AC model 15336 is a mechanical time switch ideal for industrial and electrical automation applications requiring precise time control over electrical systems.
It features a 1 channel analogue mechanism supporting time measurements in hours with manual time changeover options, including 60 minute, 24 hour, and 7 day cycles, suitable for controlling loads on a DIN rail installation.
The time switch is constructed for DIN rail mounting with compact dimensions of 90mm height, 18mm width, and 66mm depth, and it weighs only 0.101 kg, making installation convenient in control panels.
Terminal connections use screw types for secure wiring, and the device offers IP20 B protection to ensure safety in typical industrial environments. Its battery life is rated for 10 years, ensuring long-term dependable operation without frequent battery replacement.
Compliance with RoHS, EN 60730-2-7:2010, REACH, and CE standards guarantees adherence to environmental and safety standards, suitable for various industrial, commercial, and process control applications.
Designed for DIN rail mounting with 54mm width and 90mm height. Manual time changeover functionality supports 60 minutes, 24 hours, and 7 day settings. Equipped with screw-type terminals for safe and secure connections. Provides IP20 B level protection ensuring safety in industrial environments.
Complies with RoHS, EN 60730-2-7:2010, REACH, and CE standards. Lightweight product with 0.101 kg weight for easy installation.
This time switch is well-suited for industrial automation, electrical panels, HVAC systems, manufacturing process control, and commercial installations requiring reliable scheduling of electrical loads.
Explore more products from Schneider Electric and our broad catalog of Time Switches and electrical control gear at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a height of 90mm and a depth of 66mm, making it suitable for DIN rail mounting in control panels.
The maximum supply voltage for this time switch is 230V AC, which is standard for many industrial applications.
The battery life is rated for 10 years, allowing for long-term operation without the need for frequent replacements.
It is equipped with screw-type terminals for secure and safe wiring connections.
This time switch complies with RoHS, EN 60730-2-7:2010, REACH, and CE standards, ensuring it meets environmental and safety regulations.
This unit weighs only 0.101 kg, making it lightweight and easy to install.
It supports 1 channel, suitable for controlling a single load in various applications.
Manual time changeover functionality supports settings of 60 minutes, 24 hours, and 7 days.
It is well-suited for industrial automation, electrical panels, HVAC systems, and manufacturing process control.
The width of this model is 54mm, designed for efficient use of space on DIN rails.
The country of origin for this time switch is Poland.
It measures time in hours, facilitating precise scheduling for electrical loads.
