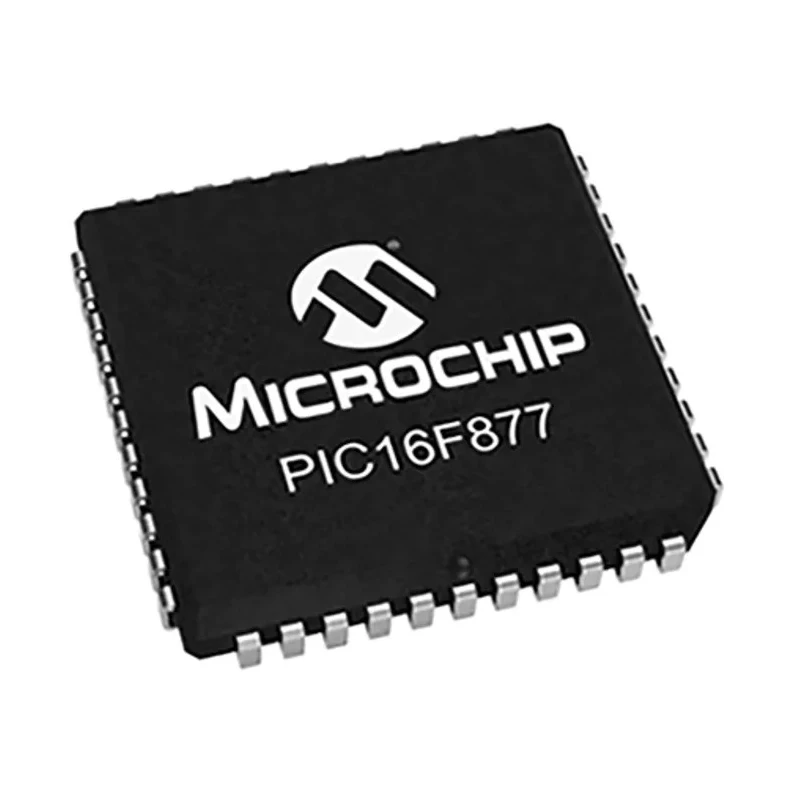

Microchip 8 bit PIC Microcontroller, 20 MHz, 14kB FLASH, 44-Pin PLCC PIC16F877-20I/L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 16.66mm |
| Model | PIC16F877-20I/L |
| Width | 16.66mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Ram size | 368bit |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes PIC16F series architecture with 8-bit data bus width.
- Supports SPI interface for serial communication.
- Includes 368-bit RAM and 18 programmable I/Os.
- Operates within a voltage range of 1.8V to 5.5V and temperature range from -40°C to 85°C.
- Complies with RoHS standards for environmental safety.
- Features 8 ADC channels with 10-bit resolution and 2 analogue comparators.
- Equipped with three timers and multiple reset and oscillator startup features.
- Designed for surface mount with a compact 16.66 x 16.66 x 4.06 mm dimension.
Product Description
Microchip PIC16F877-20I/L is an advanced 8-bit PIC microcontroller designed for versatile embedded applications. Operating at a maximum clock frequency of 20 MHz, this microcontroller integrates 14kB of FLASH program memory, 368 bits of RAM, and 18 programmable input/output pins. The device uses Microchip's renowned PIC16F architecture and is packaged in a 44-Pin PLCC surface-mount form factor, making it suitable for compact and efficient PCB designs.
The microcontroller offers robust hardware features such as power-on reset, brown-out reset, power-up timer, oscillator start-up timer, and watchdog timer, ensuring reliable operation in varied industrial environments. It supports in-circuit serial programming (ICSP) and debugging, facilitating efficient development and testing.
Featuring 8 channels of 10-bit analogue-to-digital converters (ADC) and 2 analogue comparators, the PIC16F877-20I/L enables precise measurement and control tasks in electronic designs. Communication interfaces include SPI synchronous serial port, I2C, USART, and a parallel slave port exclusive to select models, expanding integration capabilities with other devices.
Designed to operate at a supply voltage range of 1.8V to 5.5V and withstand temperatures from -40°C to 85°C, this microcontroller is fit for demanding industrial, automotive (non-automotive certified), consumer electronics, and laboratory control applications. Its compliance with RoHS standards ensures environmental safety and supports green manufacturing processes.
Utilizes PIC16F series architecture with 8-bit data bus width. Integrates 14kB FLASH program memory and 368-bit RAM for intensive data processing. Supports SPI interface for high-speed serial communication. Provides 18 programmable input/output pins for flexible interfacing.
Operates within wide voltage and temperature ranges for versatile environment use. Includes 8-channel 10-bit ADC and 2 analogue comparators for signal processing. Equipped with multiple timers and reset features for reliable system stability.
Compact 44-Pin PLCC package dimensions: 16.66 mm length, 16.66 mm width, 4.06 mm height.
This Microchip PIC16F877-20I/L microcontroller is an ideal choice for embedded systems requiring moderate processing speed and memory capacity. It finds applications in industrial automation, consumer electronics, robotics, HVAC control systems, laboratory instrumentation, and similar fields requiring efficient, reliable microcontroller solutions.
Explore more Microcontrollers and embedded solutions to suit your project needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It has a program memory size of 14kB, utilizing FLASH memory type.
This microcontroller operates within a voltage range of 1.8V to 5.5V.
The PIC16F877-20I/L includes 18 programmable input/output pins.
It can operate within a temperature range from -40°C to 85°C.
It supports SPI, I2C, and USART communication interfaces.
The dimensions of this model are 16.66 mm in length, 16.66 mm in width, and 4.06 mm in height.
This microcontroller features 8 channels of 10-bit analogue-to-digital converters (ADC).
It is packaged in a 44-Pin PLCC surface-mount form factor.
The maximum power dissipation for the PIC16F877-20I/L is 800 mW.
Yes, it complies with RoHS standards for environmental safety.
It includes multiple timers, power-on reset, brown-out reset, power-up timer, and oscillator start-up timer.
