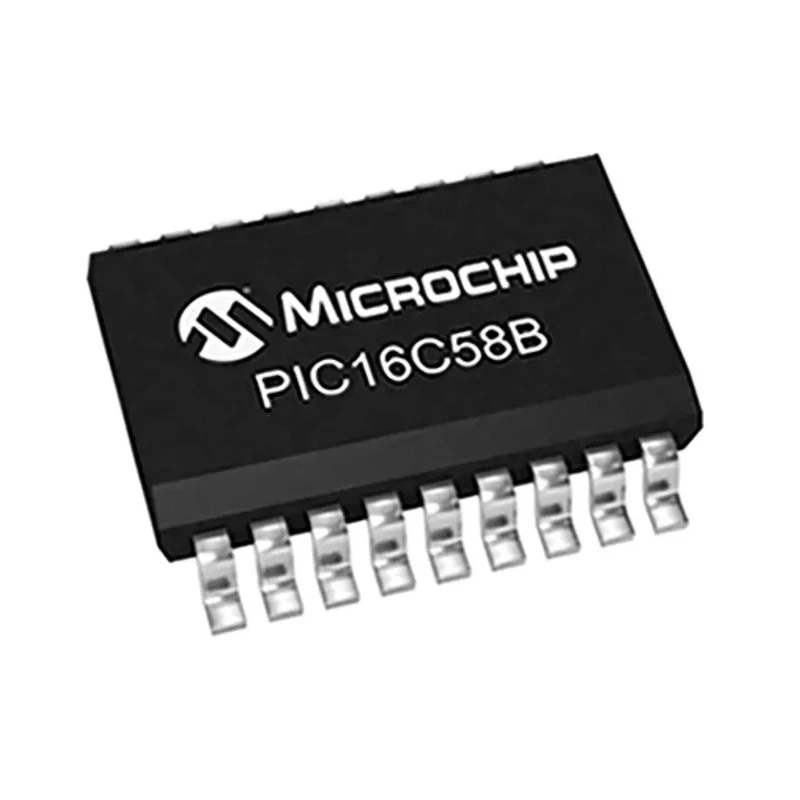

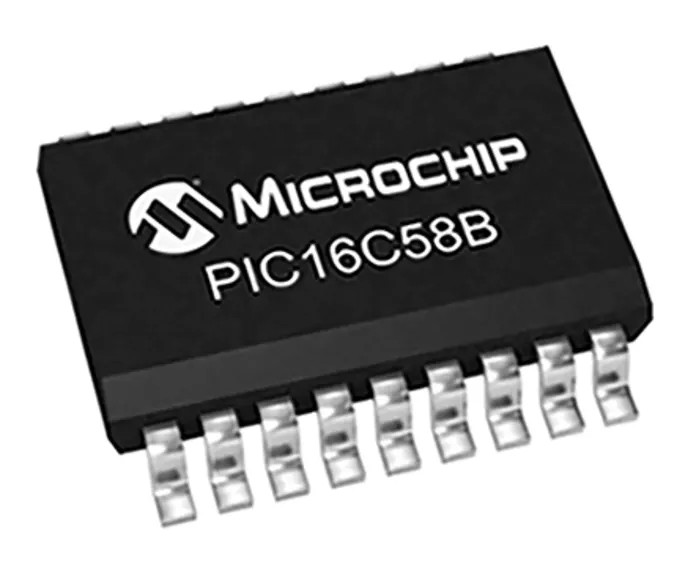

Microchip 8 bit PIC Microcontroller 3kB OTP, 12 I/Os, 18 Pin SOIC 40 MHz PIC16C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.39mm |
| Length | 11.73mm |
| Model | PIC16C |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | PIC16C |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Ram size | 73bit |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 3kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 12 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | OTP |
Key Features
- Operates at a maximum clock frequency of 40 MHz, ensuring efficient processing.
- Features 3 kilobytes of one-time programmable (OTP) program memory for firmware storage.
- Includes 73 bits of RAM, suitable for small data storage needs.
- Provides 12 programmable input/output pins for versatile interfacing.
- Supports a supply voltage range from 2.5 V to 5.5 V for flexible power options.
- Constructed in a compact 18-pin SOIC surface-mount package facilitating space-saving designs.
- Equipped with a single 8-bit timer and hardware watchdog timer for reliable operation.
- Designed to operate reliably in temperatures from 0°C to 70°C suitable for commercial environments.
Product Description
Microchip PIC16C is an 8-bit CMOS microcontroller featuring a 3kB one-time programmable (OTP) memory, running up to 40 MHz clock frequency, supplied within an 18-pin SOIC surface mount package. It incorporates Microchip’s PIC architecture offering 12 programmable I/O pins and 73 bits of RAM, optimized for embedded and legacy applications.
This microcontroller supports a 2.5 V to 5.5 V power supply range with a maximum power dissipation of 800 mW. Designed with industrial-grade reliability for operation within 0°C to 70°C ambient temperatures, it features one 8-bit timer, a watchdog timer, power-on reset, and device reset timer functionality.
The device architecture includes a 2-level hardware stack and a 33-instruction RISC instruction set facilitating up to 10 MIPS performance. While replaced by flash-based variants for new designs, the PIC16C series remains prevalent in legacy hardware where OTP memory is critical.
The compact 18-pin SOIC package with dimensions 11.73 mm length, 7.59 mm width, and 2.39 mm height allows for space-efficient PCB layouts suitable for commercial and industrial embedded systems.
Operates with a maximum clock frequency of 40 MHz for fast execution. Offers 3kB OTP program memory for permanent firmware storage. Includes 73-bit RAM for internal data handling. Provides 12 programmable I/O pins allowing various interfacing options.
Designed for operation between 0°C and 70°C ambient temperature. Supports supply voltages from 2.5 V to 5.5 V ensuring compatibility with standard power supplies. Incorporates one 8-bit timer and hardware watchdog timer for system reliability.
Utilizes RISC instruction set architecture to enhance processing efficiency. Features power-on reset and device reset timer for stable initialization. Comes in a compact 18-pin SOIC surface mount package facilitating modern PCB design.
This Microchip PIC16C microcontroller is widely used in industrial, commercial, and embedded systems where a reliable, stable, and space-efficient 8-bit microcontroller is required. It serves well in legacy system refurbishment or specific OTP programming needs.
Explore EnvMart’s broad selection of Microcontrollers and embedded components to find compatible systems and development tools for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, ensuring efficient processing capabilities.
It features 3 kilobytes of one-time programmable (OTP) program memory for firmware storage.
The microcontroller supports a supply voltage range from 2.5 V to 5.5 V, allowing for flexible power options.
This model includes 12 programmable input/output pins for versatile interfacing.
The dimensions of this microcontroller are 11.73 mm in length, 7.59 mm in width, and 2.39 mm in height.
It is designed to operate reliably in temperatures ranging from 0°C to 70°C, suitable for commercial environments.
This model is equipped with 73 bits of RAM, suitable for small data storage needs.
It is constructed in a compact 18-pin SOIC surface-mount package, facilitating space-saving designs.
This microcontroller utilizes a RISC instruction set architecture, enhancing processing efficiency.
It incorporates one 8-bit timer and a hardware watchdog timer for reliable operation.
The maximum power dissipation for this microcontroller is 800 mW.
This microcontroller is widely used in industrial, commercial, and embedded systems, particularly where OTP memory is critical.
