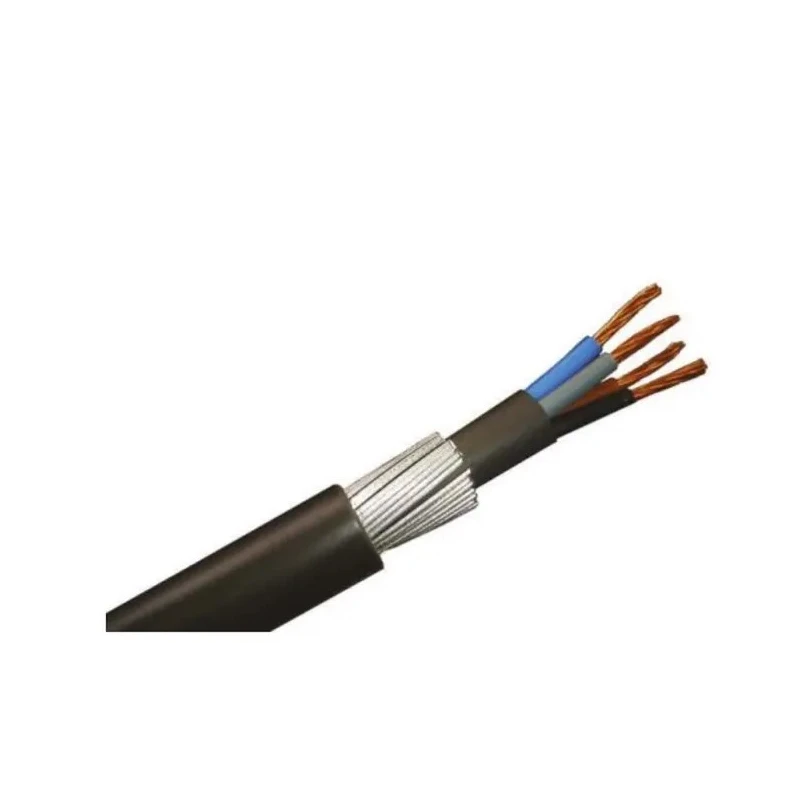

RS PRO 4 Core Armoured Power Cable Black 16mm² 90°C 50m Cross Linked 196-4671
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1000, 600V |
| Brand | RS PRO |
| Model | 196-4671 |
| Cable Length | 50m |
| Outside diameter | 22.8mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 4 |
| Conductor Material | Annealed Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Cross Linked |
| Standards/Approvals | BASEC |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 1.70mm |
| Size of Strands | 1.70mm |
| Cable CSA | 16mm² |
| Standards and Approvals | BS 5467 |
Key Features
- The cable features four cores with 16mm² cross-sectional area each for reliable power transmission.
- Annealed copper conductors provide excellent electrical conductivity.
- Construction includes Cross-linked polyethylene (XPLE) insulation, PVC bedding, and a PVC sheath for protection.
- Galvanised steel wire armour offers enhanced mechanical strength and protection against physical stresses.
- Rated for 600/1000V voltage and operating temperatures up to 90°C.
- Flame retardant cable jacket ensures improved fire safety.
- Suitable for direct burial, underground ducting, and embedding in concrete.
- Complies with BS 5467 standard and BASEC approvals.
Product Description
RS PRO 196-4671 4 Core Armoured Power Cable Black 16mm² 90°C 50m Cross Linked is engineered for industrial electrical wiring and mains power distribution. This cable features stranded plain annealed copper conductors ensuring excellent conductivity and durability. Its four cores each have a cross-sectional area of 16mm², making it ideal for moderate to heavy electrical loads.
The cable insulation uses Cross-linked Polyethylene (XPLE) which delivers superior thermal and mechanical performance with enhanced chemical resistance. It is further protected by a PVC bedding layer and an outer PVC sheath providing waterproofing and resilience against environmental factors. A galvanised steel wire armour surrounds the cable providing robust mechanical protection suitable for demanding industrial environments.
Rated at 600/1000 volts, the cable supports a maximum operating temperature of 90°C, withstanding minimum temperatures down to -15°C, making it adaptable for a wide temperature range. Its flame retardant jacket increases safety by reducing the risk of fire propagation. The cable’s outside diameter of 22.8mm allows compatibility with standard conduit and installation practices.
This armoured power cable complies with BS 5467 standards and holds BASEC certification, validating its compliance with electrical and safety regulations. Designed for installation in direct burial applications, embedding in concrete, and underground ducting, it is well suited for construction, industrial plant wiring, and power distribution systems.
Four stranded copper cores of 16mm² ensure robust power transmission. Cross-linked polyethylene insulation improves chemical and thermal resistance. Galvanised steel wire armour offers protection from mechanical stresses.
PVC bedding and sheath provide waterproofing and durability. Flame retardant jacket enhances safety in industrial environments. Complies with BS 5467 and BASEC approvals for power cables. Supports a voltage of 600/1000 volts and operating temperatures from -15°C to 90°C.
Outside diameter of 22.8mm for easy installation. Manufactured in the United Kingdom with high build quality.
This RS PRO Power Cable is ideal for industrial, construction, and electrical utility applications requiring a reliable and durable armoured cable solution. Explore more RS PRO cables and electrical components on EnvMart for comprehensive industrial wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this power cable is 90°C.
Each core in this cable has a cross-sectional area of 16mm².
This cable is rated for 600/1000V voltage.
The conductors are made of stranded plain annealed copper, which provides excellent electrical conductivity.
The outside diameter of this cable is 22.8mm.
Yes, this cable is suitable for direct burial, underground ducting, and embedding in concrete.
This cable uses Cross-linked Polyethylene (XPLE) insulation, which offers superior thermal and mechanical performance.
This power cable complies with BS 5467 standards and holds BASEC certification.
The minimum operating temperature for this cable is -15°C.
The cable features a flame retardant jacket and galvanised steel wire armour for enhanced mechanical protection.
This power cable has four cores.
The length of this power cable is 50 meters.
