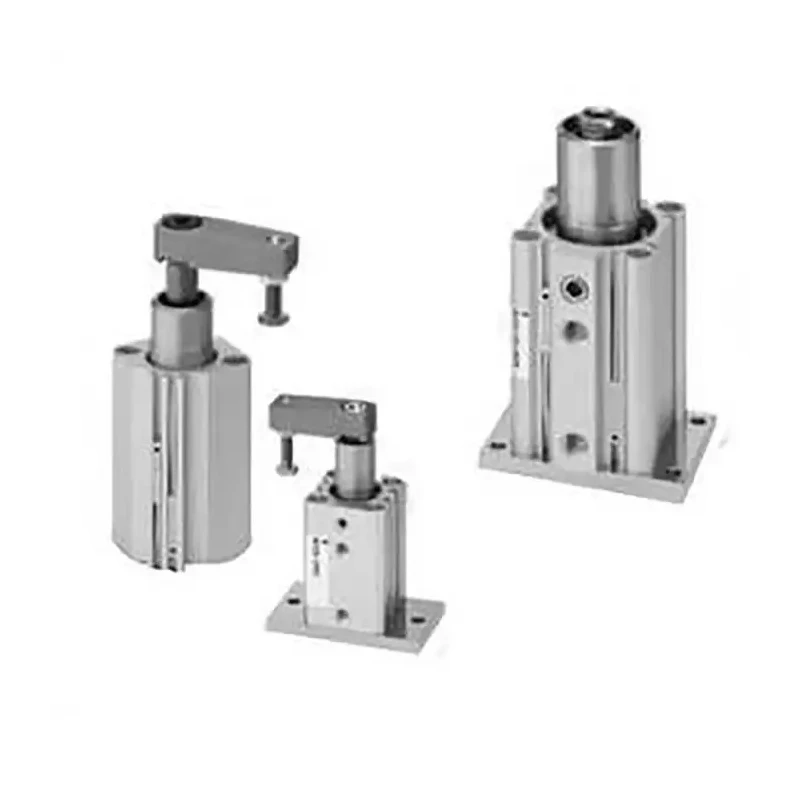

SMC Pneumatic Cylinder Bore Diameter 20mm Stroke Length 10mm Maximum Operating Pressure 1 Mpa MK Series MKB20-10LZ

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Cylinder Bore Diameter 20mm Stroke Length 10mm Maximum Operating Pressure 1 Mpa MK Series MKB20-10LZ



Category Pneumatic Cylinders & Actuators Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Model	MKB20-10LZ
Gross Weight	222g
Mount Type	Through Hole
Series	MK
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	10mm
Bore Diameter	20mm
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Piston Rod Thread Size	M5 x 0.8
Angle of Rotation	90°

Key Features

This double acting pneumatic cylinder utilizes aluminium alloy for a lightweight and durable body.
The MK series design includes a 90° angle of rotation and rubber bumper cushioning for smooth operation.
Compact size with a piston rod thread size of M5 x 0.8 and through hole mount type for flexible installation.
Operative within a temperature range from -10°C to 60°C, ensuring performance in varied environments.
The unit weighs 222 grams and is manufactured in China.
Compatible with compact auto switch D-M9 mountable on four sides and magnetic field resistant auto switches.
Reduced length compared to MK2 series, offering space-efficient design, available in bore sizes ranging from 12mm to 63mm.

Product Description

SMC MKB20-10LZ Pneumatic Cylinder, part of the MK series, provides precise and reliable motion control with a 20mm bore diameter, 10mm stroke length, and a maximum operating pressure of 1 Mpa. Designed for industrial automation, this double acting cylinder uses a durable aluminium alloy body and incorporates a rubber bumper cushioning system to reduce operational noise and wear.

Its through hole mount type allows secure mounting options, while the 90° angle of rotation supports versatile mechanical setups. The compact format with a piston rod thread size of M5 x 0.8 enables easy integration into pneumatic systems. Operating comfortably from -10°C to 60°C, it suits many industrial, manufacturing, and automation applications.

The cylinder's lightweight design at just 222 grams aids in applications where minimal mass is critical. It is compatible with compact auto switch D-M9 units that can be mounted on four sides and supports magnetic field resistant auto switches, enhancing sensor robustness in challenging environments.

With its length reduced compared to the MK2 series, this model is space-saving yet maintains availability in wider bore size ranges including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm. The product is engineered in China, complying with industry standards for pneumatic clamping cylinders.

This pneumatic cylinder features aluminium alloy construction for enhanced strength and reduced weight. Double acting with rubber bumper cushioning minimizes impact during operation. Through hole mount type supports secure and flexible attachment.

Operating temperature range is from -10°C to 60°C, suitable for varied industrial conditions. Compact auto switch D-M9 can be mounted on four sides for sensor versatility. 90° angle of rotation allows integration into different machine designs.

Compatible with magnetic field resistant auto switches for reliable sensing. Available in multiple bore sizes from 12mm to 63mm for different application needs.

SMC pneumatic cylinders are widely used in industrial automation, manufacturing, HVAC systems, laboratory automation, and fluid power tools. Explore EnvMart's extensive selection of hydraulic and pneumatic tools and accessories to find compatible components for your application needs.
