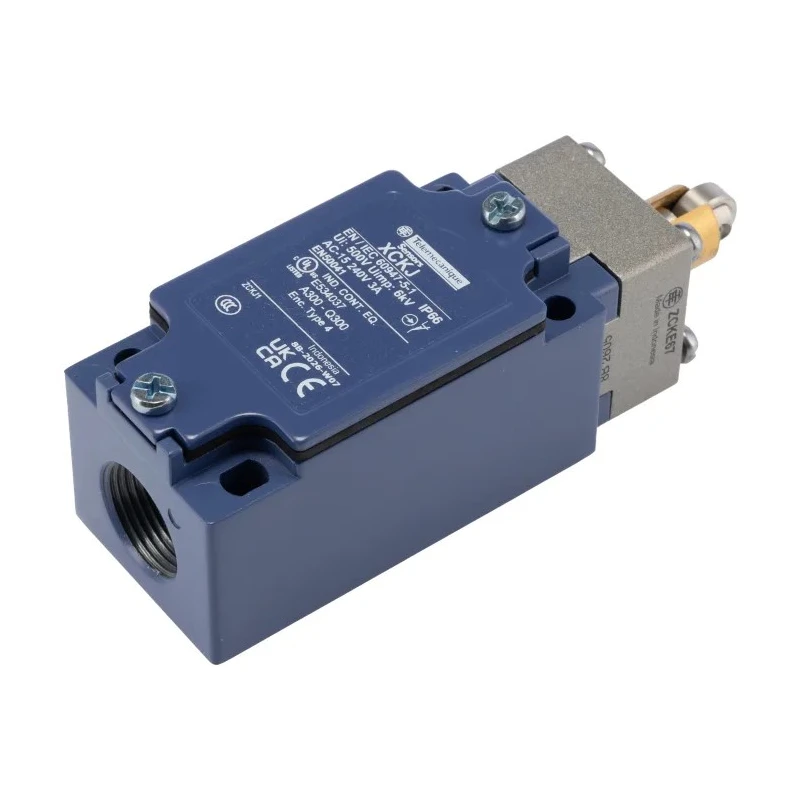

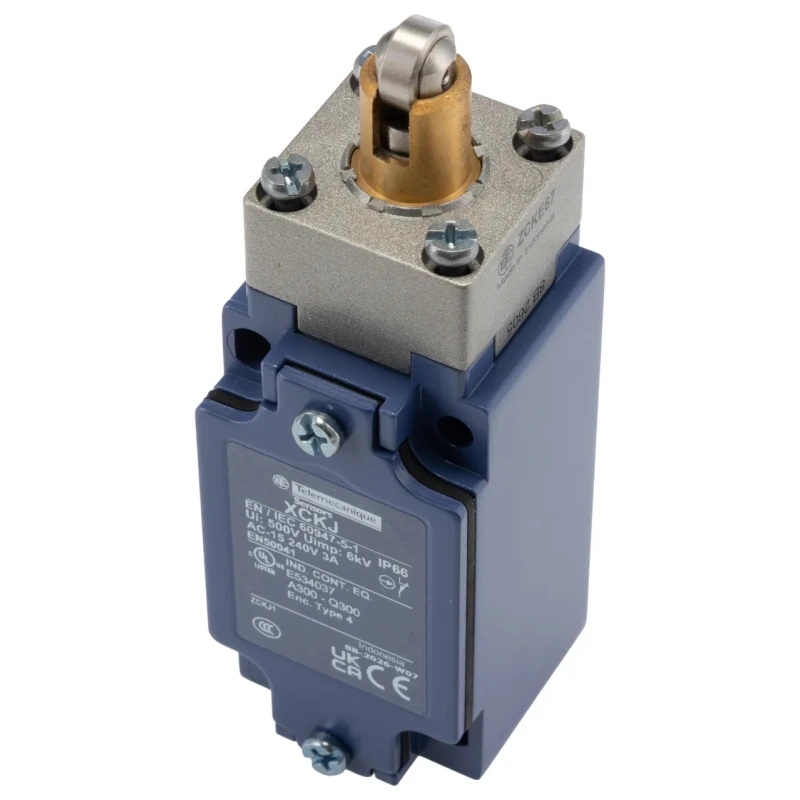

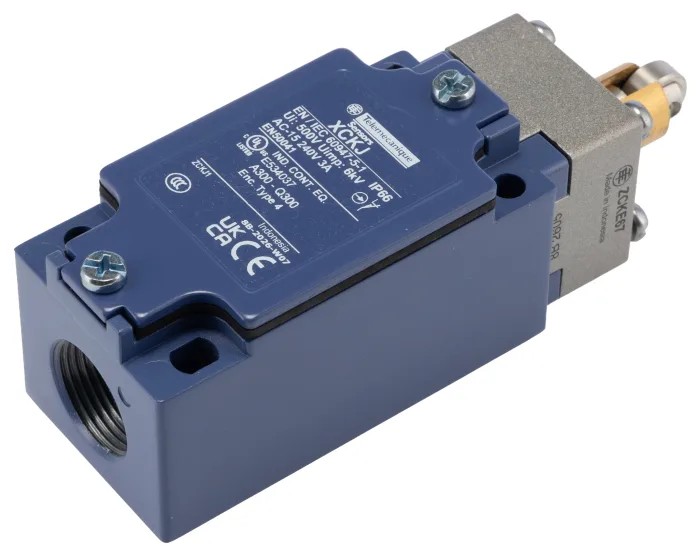

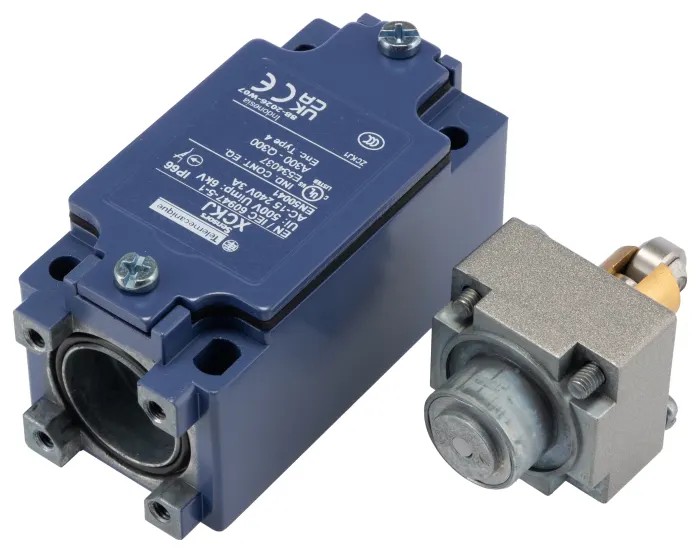

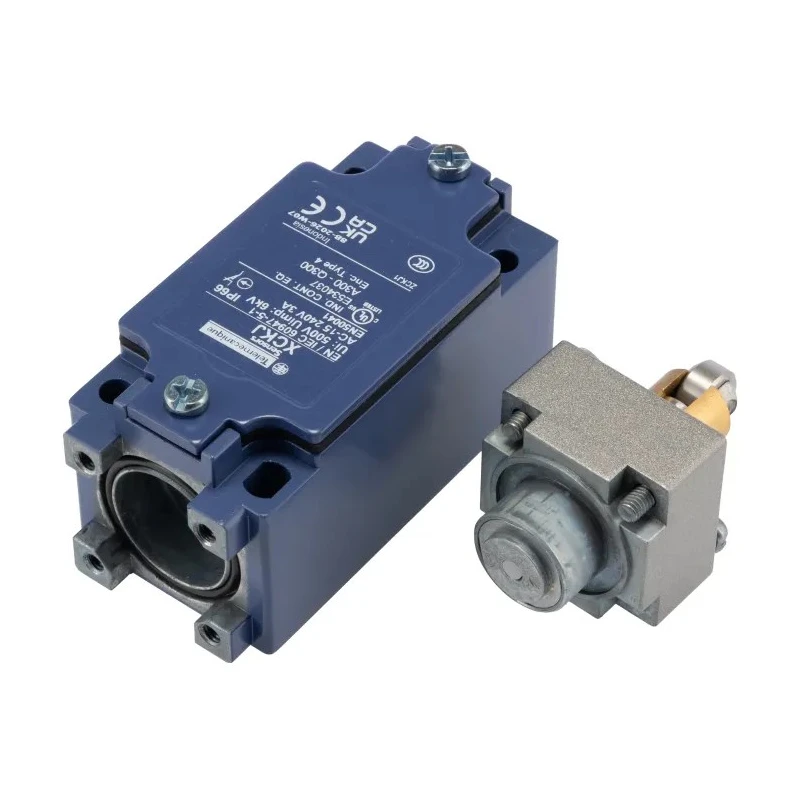

Telemecanique Sensors XCKJ Series Roller Plunger Limit Switch 1 NO/1 NC 3A 50V AC IP66 Zinc Alloy Housing
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 40mm |
| Model | IP66 |
| Depth | 44mm |
| IP Rating | IP66 |
| Width | 40mm |
| Housing Material | Zinc Alloy |
| Series | XCKJ |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Cable |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw Clamp |
| Standards/Approvals | RoHS |
| Operating Force | 40N |
| Mechanical Life | 25000000Cycles |
| Switching DC Voltage | 50V dc |
| Switching AC Voltage | 50V ac |
| Conduit Entry | PG13 |
Key Features
- Features snap-action contacts for fast and reliable electrical switching.
- 1 NO and 1 NC contact configuration provides both make and break functionality.
- IP66 rated housing ensures dust-tight and water jet resistance.
- Zinc Alloy housing offers durable and corrosion-resistant structure.
- Supports switching voltage up to 50V AC/DC.
- Mechanical life rated for 25 million cycles for long durability.
- Operating temperature range from -25°C to 70°C for diverse environments.
- Screw clamp terminals facilitate secure and easy wiring connections.
Product Description
Telemecanique Sensors XCKJ167 Roller Plunger Limit Switch is a compact industrial actuator engineered for precise position detection and control switching in automated systems. It features a roller plunger actuator combined with a snap-action switching mechanism, delivering fast electrical transitions and reliable operation at up to 3A switching current.
The device is built with an IP66 rated Zinc Alloy housing, making it suitable for harsh industrial environments requiring dust-tight and water jet resistance. It supports both AC and DC switching voltages up to 50V, enabling versatile application across control and signalling tasks.
Designed specifically for cable-mounted installations, the switch uses screw clamp terminals for secure wiring and a PG13 conduit entry for external cable protection. Its robust Zinc Alloy body provides excellent mechanical strength and corrosion resistance, ideal for industrial settings.
The XCKJ167 limit switch operates reliably within a wide temperature range of -25°C to 70°C and is mechanically rated for 25 million cycles, underscoring its long operational life. An operating force of 40N ensures dependable actuation even under mechanical load.
Snap-action contacts deliver fast and precise electrical switching. 1 NO/1 NC contact configuration supports both make and break signalling. IP66 ingress protection offers dust and water jet resistance. Zinc Alloy housing provides durable and corrosion-resistant construction.
Supports switching voltage of 50V AC and DC with 3A current rating. Mechanical life rated to 25,000,000 cycles for extended durability. Operating temperature range from -25°C to +70°C. Equipped with screw clamp terminals for secure wiring.
PG13 conduit entry suitable for cable-mounted orientation. Operating force of 40N for reliable actuation.
This limit switch is ideal for diverse industrial applications including position feedback on conveyor drives, interlock signalling on motorised gates, safety sensing on industrial presses, and usage in packaging machinery. It integrates effectively in control panels requiring robust and reliable switching devices.
Explore EnvMart's extensive selection of Limit Switches and industrial automation components for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The limit switch has a switching current rating of 3A.
It supports a maximum switching voltage of 50V AC or DC.
The operating temperature range is from -25°C to 70°C.
This model uses a roller plunger actuator.
The switch features a contact configuration of 1 normally open (NO) and 1 normally closed (NC).
The housing has an IP66 ingress protection rating, ensuring it is dust-tight and resistant to water jets.
The housing is made of zinc alloy, providing durability and corrosion resistance.
The mechanical life of the switch is rated for 25 million cycles.
It is equipped with screw clamp terminals for secure wiring connections.
The operating force required for actuation is 40N.
The switch is designed for cable-mounted installations.
This model complies with RoHS standards.
