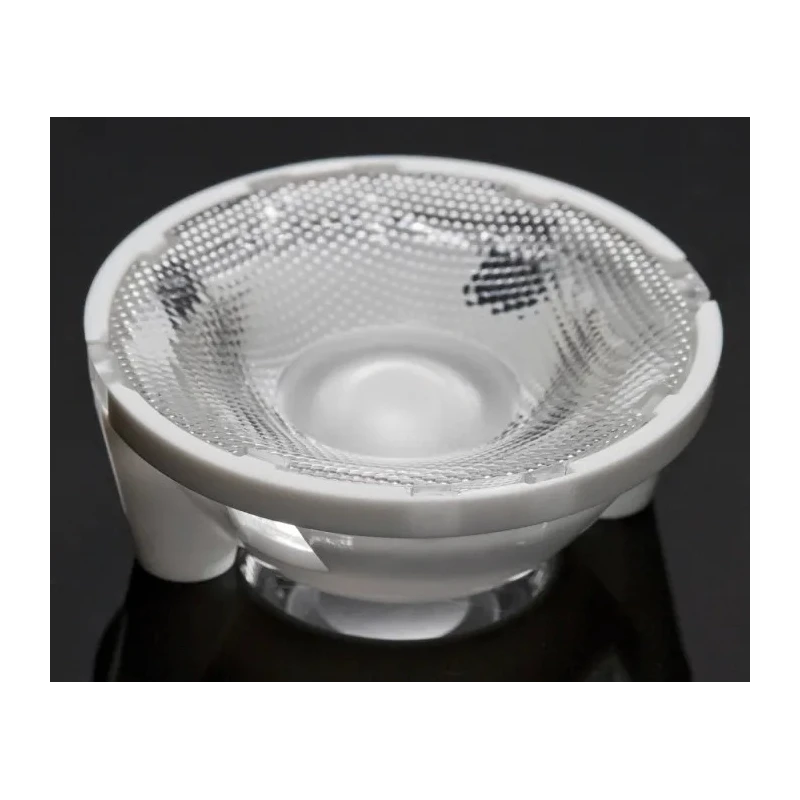

Ledil Winnie Series LED Lens 42 to 49 ° Round Beam CN14238_WINNIE-W

Ledil CN14238_WINNIE-W is part of the Winnie Series LED lenses, featuring a round beam with a viewing angle between 42 and 49 degrees. This LED lens is designed specifically for use with high-performance COB LEDs with a light-emitting surface (LES) diameter of up to 21 mm. The lens utilizes a uniquely engineered flat folded total internal reflection (TIR) optical design, which provides efficient light distribution and enhanced beam control.

The lens itself is made from optical-grade polymethyl methacrylate (PMMA), which offers excellent UV stability and high-temperature resistance, ensuring durability in demanding lighting conditions. It is mounted in a hyper-reflective white polycarbonate holder with a screw fixing method to ensure secure installation.

With a standard MR16 form factor, the CN14238_WINNIE-W lens is suitable for a variety of retrofit luminaire designs. Its compact size includes a diameter of 49.8 mm and a height of 19.3 mm.

This lens is compatible with a broad range of LED emitters including Citizen CLL01x, CLL02x, CLU024, CLL03x, CLU034, CLU700/710/720, Cree CXA1816, CXA1820, CXA1850, CXA/B 13xx, CXA/B 15xx, CXB1816, CXB1820, Lumileds LUXEON CoB models such as 105, 107, 109, 1202, 1202s, 1203, OSRAM DURIS S10, OSRAM SOLERIQ P13, P6, P9, S13, S19, and Seoul ZC 12/18 and ZC 4/6 series.

Typical industrial and commercial applications include track lighting systems, downlighting fixtures, and indoor or outdoor spotlighting solutions, where precise beam control and high optical efficiency are required. The product meets RoHS compliance requirements and originates from China.

The lens features a round shape with a diameter of 49.8 mm and height of 19.3 mm. Made from optical grade polymethyl methacrylate (PMMA) providing high UV and temperature resistance. Utilizes a unique flat folded TIR design for efficient light control.

Standard MR16 size suitable for retrofit lighting designs. Secured by screw fixing method in a hyper-reflective white PC holder. Compatible with multiple COB LED models from leading manufacturers. Suitable for track, downlights, and indoor/outdoor spotlights.

RoHS compliant and manufactured in China.
