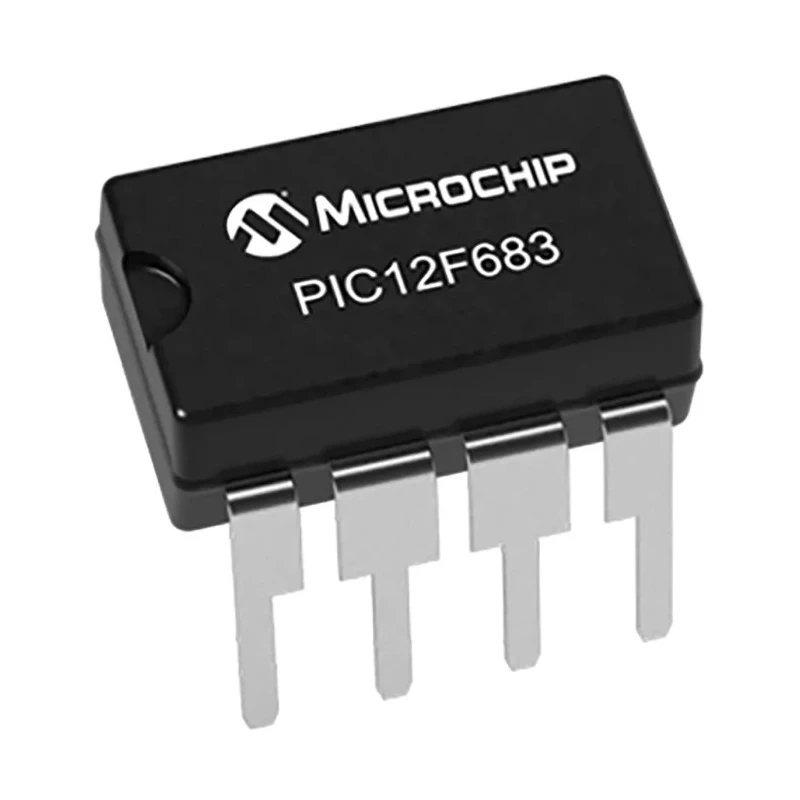

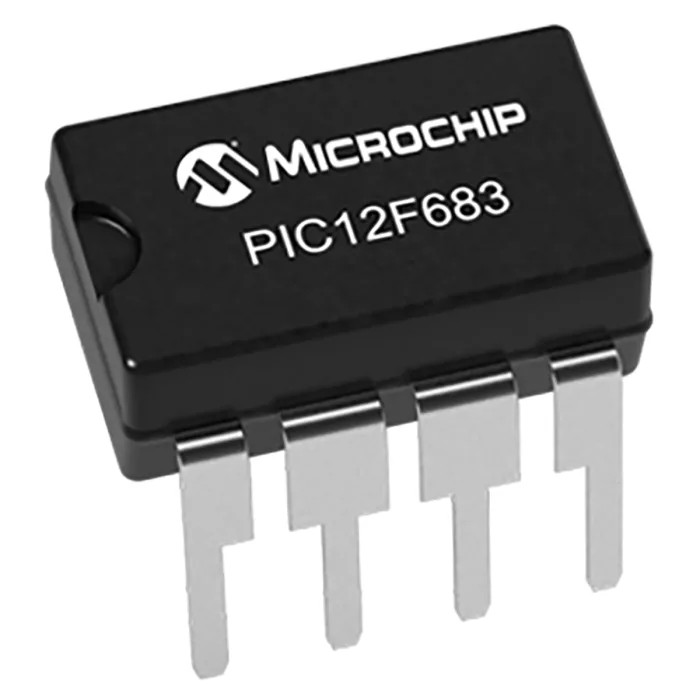

Microchip PIC12F683-I/P 8-Bit PIC Microcontroller, 20 MHz, 256B FLASH, 8-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 10.16mm |
| Model | PIC12F683-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 5.5V and a minimum of 1.8V.
- Features 35 instructions and an 8-level hardware stack for efficient processing.
- Includes 128 bits RAM and 256 bytes EEPROM for data storage.
- Equipped with 4-channel 10-bit ADCs and 2 analogue comparators for versatile analog interfacing.
- Supports In-Circuit Serial Programming (ICSP) allowing easy programming and debugging.
- Offers up to 5 MIPS of processing speed and a maximum clock frequency of 20 MHz.
- Designed for industrial temperature range from -40°C to 85°C for robust applications.
- Compact dimensions with 10.16mm length, 7.11mm width, and 4.95mm height in a through-hole PDIP package.
Product Description
Microchip PIC12F683-I/P is an 8-bit PIC microcontroller featuring a 20 MHz maximum clock frequency and 256 bytes of FLASH memory in a compact 8-pin PDIP package. The device operates over a wide voltage range from 1.8V to 5.5V with a maximum power dissipation of 800 mW, making it suitable for low-power embedded applications.
These microcontrollers feature an 8-level hardware stack, implementing a rich instruction set of 35 instructions and providing up to 5 million instructions per second (MIPS). The PIC12F683-I/P includes 128 bits of RAM and 256 bytes of EEPROM for data retention, plus four 10-bit analog-to-digital converters (ADCs) and two analog comparators, suitable for challenging sensor interface tasks.
Additional features include two 8-bit timers and one 16-bit timer, Capture/Compare/PWM modules, and the RISC-based PIC architecture. In-circuit serial programming (ICSP) capability enables easy programming and debugging in system, facilitating fast prototyping and development.
The device is housed in an industry-standard 8-pin PDIP through-hole package, measuring 10.16 mm long, 7.11 mm wide, and 4.95 mm high, supporting easy integration into existing PCB designs. It supports operating temperature ranges from -40°C to +85°C, which is suitable for automotive and industrial environments.
Operates up to 20 MHz clock frequency with 5 MIPS performance. 256B FLASH program memory and 128bit RAM memory. Configurable internal RC oscillator with ±1% accuracy. Low power consumption and power-saving modes. Supports SPI interface for communication.
Offers 36 programmable input/output pins. Robust operating temperature for harsh conditions. Flash memory type with EEPROM data storage capabilities.
This microcontroller is ideal for embedded control systems, automotive electronics, instrumentation, consumer electronics, and other industrial applications. Microchip's PIC12F series continues to be valued for its compact size, feature set, and robust performance.
Explore this product and other microcontrollers in the Electronics & Electricals > Semiconductor > Microcontroller category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates with a supply voltage range from 1.8V to 5.5V.
This model features 256 bytes of FLASH memory.
The microcontroller includes 128 bits of RAM.
It is equipped with four 10-bit analog-to-digital converters (ADCs).
This model is housed in an 8-pin PDIP (Plastic Dual In-line Package).
It is designed to operate within a temperature range from -40°C to +85°C.
The maximum power dissipation for this microcontroller is 800 mW.
This microcontroller offers up to 36 programmable input/output pins.
It utilizes a RISC (Reduced Instruction Set Computer) architecture.
Yes, it supports In-Circuit Serial Programming (ICSP) for easy programming and debugging.
This model includes two 8-bit timers and one 16-bit timer.
