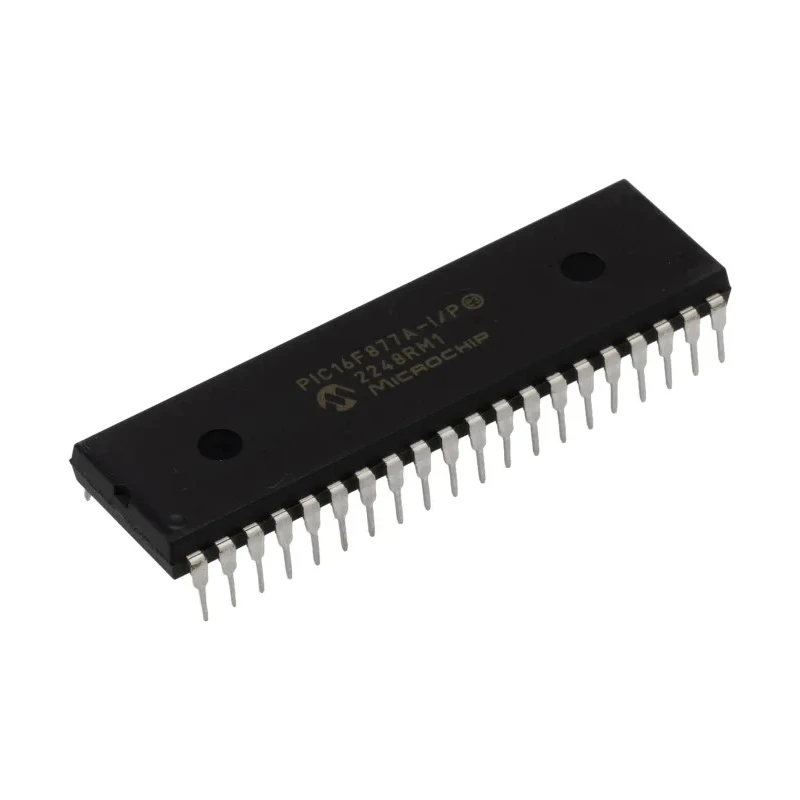

Microchip 8-Bit PIC16F Microcontroller 20 MHz 14.3 kB Flash 256 B RAM 40-Pin PDIP PIC16F877A-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 52.45mm |
| Model | PIC16F877A-I/P |
| Width | 14.22mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 368bit |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14.3, 256kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes an 8-bit PIC device core suitable for embedded applications.
- Includes 33 programmable input/output pins for versatile interfacing.
- Features 8 ADC channels with 10-bit resolution for precise analog measurements.
- Operates within a wide temperature range from -40°C to 85°C for reliability.
- Employs FLASH program memory providing reprogrammability and data retention.
- Supports a RISC instruction set architecture for efficient processing.
- Includes three hardware timers to support complex timing tasks.
- Configured with a 40-pin PDIP through-hole mount with dimensions 52.45 mm length, 14.22 mm width, and 4.06 mm height.
Product Description
Microchip PIC16F877A-I/P is an 8-bit PIC microcontroller designed for embedded electronic applications requiring moderate processing capabilities and versatile I/O options. This microcontroller operates at a maximum clock frequency of 20 MHz, enabling effective real-time control and processing.
Featuring 14.3 kB of FLASH memory for program storage and 368 bits of RAM, the device supports a wide range of firmware implementations. The device includes 33 programmable input/output pins to interface with peripherals, sensors, and actuators in industrial, automotive, and consumer electronics systems.
It is packaged in a 40-pin PDIP through-hole format with compact physical dimensions of 52.45 mm length, 14.22 mm width, and 4.06 mm height, facilitating integration into legacy and modern circuit boards.
With 8 analog-to-digital converters (ADC) at 10-bit resolution, the chip enables accurate analog signal acquisition for sensing applications.
Engineered to operate reliably across a wide temperature span from -40°C to 85°C, this microcontroller suits demanding environments such as industrial control and automotive electronics.
The PIC16F877A-I/P is powered within a voltage range of 2V to 5.5V with a maximum power dissipation of 1W, ensuring efficient energy use in battery-operated systems. Utilizes an 8-bit PIC device core optimized for performance and low power.
Includes 33 programmable input/output pins facilitating extensive connectivity. Features 8-channel, 10-bit ADC for precise analog inputs. Robust operation in temperatures from -40°C to 85°C supports industrial and automotive use.
FLASH memory type enables in-field device programming and updates. The device uses a RISC instruction set architecture for fast instruction execution. Three embedded timers allow flexible time-based operations. Packaged in a 40-pin PDIP through-hole housing with detailed dimensions.
Power consumption managed around 1 Watt maximum dissipation. This microcontroller is ideal for applications in industrial automation, consumer electronics, automotive systems, and laboratory instrumentation. Discover more Microcontrollers and related electronic components on EnvMart to support your development projects with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, allowing for effective real-time control and processing.
It features 14.3 kB of FLASH memory for program storage, providing reprogrammability and data retention.
This microcontroller includes 33 programmable input/output pins, facilitating extensive connectivity with various peripherals and sensors.
The PIC16F877A-I/P operates reliably within a wide temperature range from -40°C to 85°C, suitable for demanding environments.
It employs a RISC instruction set architecture, which is optimized for efficient processing and fast instruction execution.
This model is packaged in a 40-pin PDIP (Plastic Dual In-line Package) format, with dimensions of 52.45 mm length, 14.22 mm width, and 4.06 mm height.
The microcontroller has a RAM size of 368 bits, supporting various firmware implementations.
It features 8 analog-to-digital converters (ADCs) with 10-bit resolution for precise analog measurements.
The maximum supply voltage for this microcontroller is 5.5V, ensuring compatibility with various power sources.
This model includes three hardware timers to support complex timing tasks in applications.
The minimum operating temperature for the PIC16F877A-I/P is -40°C, making it suitable for use in harsh environments.
This microcontroller is ideal for applications in industrial automation, consumer electronics, automotive systems, and laboratory instrumentation.
