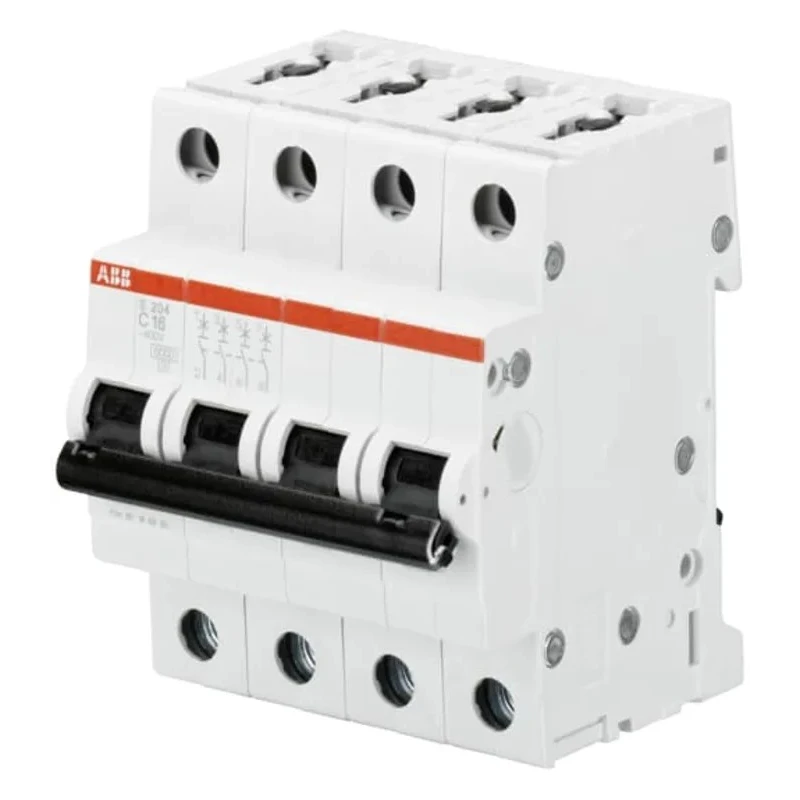

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 500mA, Type C, 400V AC 2CDS254001R0984 S204 C 0.5A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS254001R0984 S204 C 0.5A - 10 KA |
| Depth | 69mm |
| IP Rating | IP20 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 500mA |
| Series | S200 |
| Ambient air temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60898-1, UL1077, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromechanic, Anaerobic Adhesive |
Key Features
- Designed for DIN rail mounting with a secure screw terminal connection.
- Complies with IEC/EN 60898-1, UL1077, and IEC/EN 60947-2 standards.
- Electromechanic tripping mechanism provides overload and short circuit protection.
- Compact size with 70mm width, 88mm height, and 69mm depth for panel installation.
- IP20 rated enclosure prevents accidental finger contact and ensures safety.
- Operates within ambient temperatures from -25 to +55 °C, with storage -40 to +70 °C.
- Manufactured in Germany with a sustainable design for disassembly and reuse.
Product Description
ABB 2CDS254001R0984 S204 C 0.5A - 10 KA System Pro M Compact S200 miniature circuit breaker is a high-performance electrical protection device engineered for industrial and commercial electrical systems. Rated for 4 poles and a current rating of 500mA, it features Type C tripping characteristics suitable for general-purpose applications requiring short circuit and overload protection.
This circuit breaker supports a rated AC voltage of 400V and a breaking capacity of 6 kA, which ensures effective disruption of fault currents and protects electrical installations from damage. The device is designed for easy mounting on DIN rails and comes with screw terminals, facilitating secure and reliable wiring.
Manufactured under compliance with stringent standards including IEC/EN 60898-1, UL1077, and IEC/EN 60947-2, this ABB S200 series breaker guarantees operational safety. Its electromechanic tripping mechanism combines a delayed thermal response for overload protection with an immediate electro-mechanic trip for short circuit scenarios.
The protective enclosure with an IP20 rating ensures resistance to finger access, while the compact form factor (88mm height, 69mm depth, 70mm width) enables installation in confined panel spaces. Ambient operating temperature ranges from -25 °C to +55 °C, with storage conditions between -40 °C to +70 °C, allowing stable function across diverse environments.
This product embodies ABB's commitment to sustainability with designs enabling disassembly and reuse, all manufactured in Germany to ensure high quality. It is ideal for use in electrical panels and automation systems across industrial, commercial, and residential sectors.
Compact 4-pole MCB with 500mA current rating, Type C tripping. High breaking capacity of 6 kA to protect installations from faults. Compliance with international electrical safety standards. DIN rail mount with screw terminal for ease of installation.
IP20 enclosure rating for safe handling. Reliable performance across wide temperature ranges. Environmentally conscious design with disassembly capability. Explore a wide selection of Miniature Circuit Breakers and related electrical components on EnvMart for your industrial and construction needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500mA.
It features a breaking capacity of 6 kA, which helps protect electrical installations from fault currents.
The dimensions are 88mm in height, 69mm in depth, and 70mm in width.
It is designed for DIN rail mounting, ensuring easy installation in electrical panels.
The enclosure has an IP20 rating, which prevents accidental finger contact.
It operates within ambient temperatures from -25 °C to +55 °C and can be stored between -40 °C to +70 °C.
It complies with IEC/EN 60898-1, UL1077, and IEC/EN 60947-2 standards.
This model features Type C tripping characteristics, suitable for general-purpose applications requiring overload and short circuit protection.
It uses screw terminals for secure and reliable wiring connections.
This circuit breaker is manufactured in Germany.
It belongs to the System Pro M Compact series by ABB.
It is designed for disassembly, which supports sustainable practices in electrical installations.
