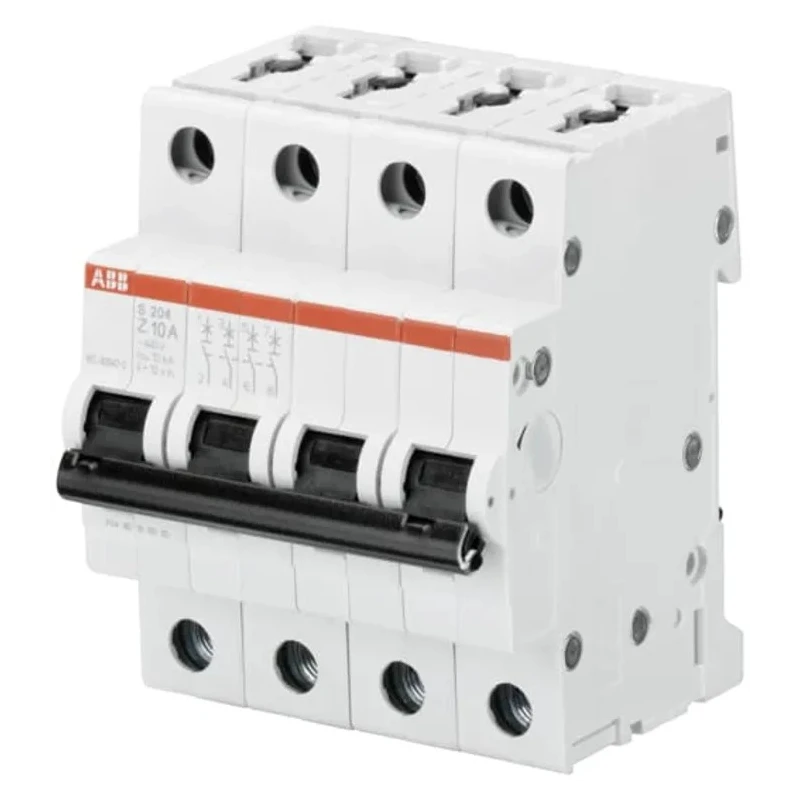

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 10A, Type Z, 440V AC, 20 2CDS254001R0428 S204 Z 10A - 10 KA

ABB 2CDS254001R0428 S204 Z 10A - 10 KA Miniature Circuit Breaker from the System Pro M Compact S200 series is engineered for precise and reliable electrical circuit protection in industrial, commercial, and automation settings. This 4-pole device features a 10A current rating and Type Z tripping characteristic, providing sensitive overload and short circuit protection under demanding electrical conditions.

Designed for DIN rail mounting, the compact breaker measures 70mm in width, 88mm height, and 69mm depth, fitting efficiently into electrical panels. It operates reliably at a rated AC voltage of 440V and can safely interrupt fault currents up to 20 kA, ensuring maximum safety and compliance with international standards IEC/EN 60947-2, IEC/EN 60898-1, and UL1077.

The tripping mechanism combines anaerobic adhesive and electromechanic technology to provide both thermal and instantaneous protection. The product is rated with IP20 and IP40 ingress protection, providing safe operation under typical industrial environments. Ambient temperature operating range extends from -25°C to +55°C, with storage ratings from -40°C to +70°C, allowing reliable performance across various climate conditions.

Manufactured in Germany, this Miniature Circuit Breaker is a Better World product designed for disassembly, contributing towards sustainability goals in electrical equipment management. It is ideal for use in electrical distribution systems across manufacturing, HVAC, water treatment, commercial buildings, and industrial automation sectors.

Supports a rated AC voltage of 440V suitable for industrial applications. Offers a high breaking capacity of 20 kiloamperes to ensure safe disconnection. Compact design fitting a 70mm width, 88mm height, and 69mm depth. Features an IP20 and IP40 rating providing dust protection for circuit safety.

Mounts easily on DIN rails for quick installation. Complies with IEC/EN 60947-2, IEC/EN 60898-1, and UL1077 safety standards. Designed with anaerobic adhesive and electromechanic tripping mechanisms. Operational in ambient temperatures from -25°C to +55°C and storage from -40°C to +70°C.

Manufactured in Germany with sustainable design for disassembly. Explore the ABB category on EnvMart for more reliable and certified electrical protection devices designed for stringent industrial and commercial applications.
