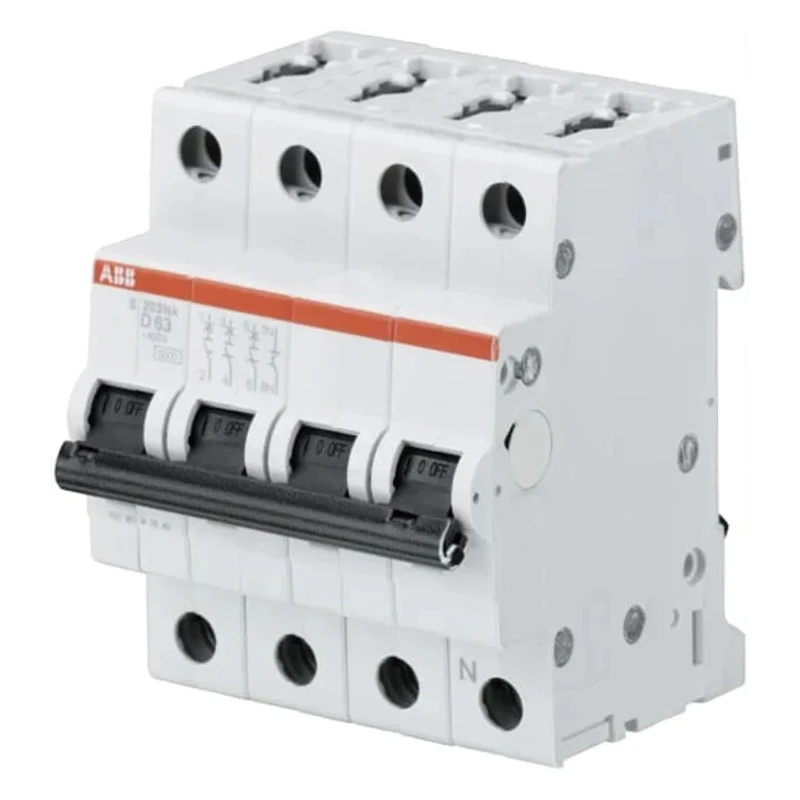

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 500mA Type D 400V AC 12V DC 20 kA Breaking 2CDS253103R0981
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253103R0981 |
| Depth | 69mm |
| IP Rating | IP20 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 500mA |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 20kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2, UL1077 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromechanic, Thermal |
Key Features
- Equipped with a 3-pole configuration, providing comprehensive circuit protection.
- Current rating of 500mA ensures precise overload and short circuit detection.
- Type D tripping characteristic suitable for high inrush currents.
- Rated for 400V AC and 12V DC voltage applications.
- Breaking capacity of 20 kA provides high fault clearing capability.
- Mounts easily on DIN rail for streamlined installation.
- IP20 rated for protection against solid objects larger than 12mm.
- Terminals use screw type connection ensuring secure wiring.
Product Description
ABB 2CDS253103R0981 System Pro M Compact S200 Miniature Circuit Breaker is a high-performance electrical protection device ideal for industrial, commercial, and electrical automation applications. This 3-pole MCB provides a current rating of 500mA with a Type D tripping characteristic, well-suited for circuits with high inductive loads and inrush currents.
It supports rated AC voltage of 400V and DC voltage of 12V, making it versatile for multiple power system configurations. The 20 kA breaking capacity ensures reliable fault clearance, protecting electrical equipment and wiring from damage.
The device features an electromechanic thermal tripping mechanism combining delayed thermal protection against overloads and immediate electromagnetic protection against short circuits. It mounts conveniently on DIN rails allowing ease of installation and maintenance.
The compact dimensions (88mm height, 70mm width, 69mm depth) and IP20 protection rating make it suitable for various electrical panels and switchgear environments. Screw terminal connections provide robust and secure wiring points.
Compliant with international safety and performance standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, this ABB miniature circuit breaker delivers trusted circuit protection with enhanced durability.
3-pole miniature circuit breaker for comprehensive protection. 500mA current rating with Type D tripping for inductive loads. Supports 400V AC and 12V DC voltage systems. High breaking capacity of 20 kA for fault clearing.
DIN rail mounting ensures easy installation. IP20 rated for protection against solid objects. Screw terminal type for secure electrical connection. Compact design with precise dimensions. Meets IEC/EN and UL safety standards.
Electromechanic thermal trip mechanism for dual protection.
This Miniature Circuit Breaker from ABB is highly suitable for industrial automation, electrical panels, manufacturing plants, and commercial infrastructure where reliable overload and short circuit protection is essential. Explore more quality circuit protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500mA, ensuring precise overload and short circuit detection.
It features a breaking capacity of 20 kA, providing reliable fault clearing capability.
It supports a rated AC voltage of 400V and a rated DC voltage of 12V, making it versatile for various power system configurations.
This unit mounts conveniently on DIN rails, allowing for streamlined installation and maintenance.
It has an IP20 rating, which provides protection against solid objects larger than 12mm.
The dimensions are 88mm in height, 70mm in width, and 69mm in depth.
It utilizes an electromechanic thermal tripping mechanism for dual protection against overloads and short circuits.
It features a Type D tripping characteristic, which is suitable for circuits with high inrush currents.
It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards, ensuring safety and performance.
It uses screw type terminals, ensuring secure wiring connections.
This miniature circuit breaker is part of the S200 series, designed for comprehensive circuit protection.
The country of origin for this model is Germany.
