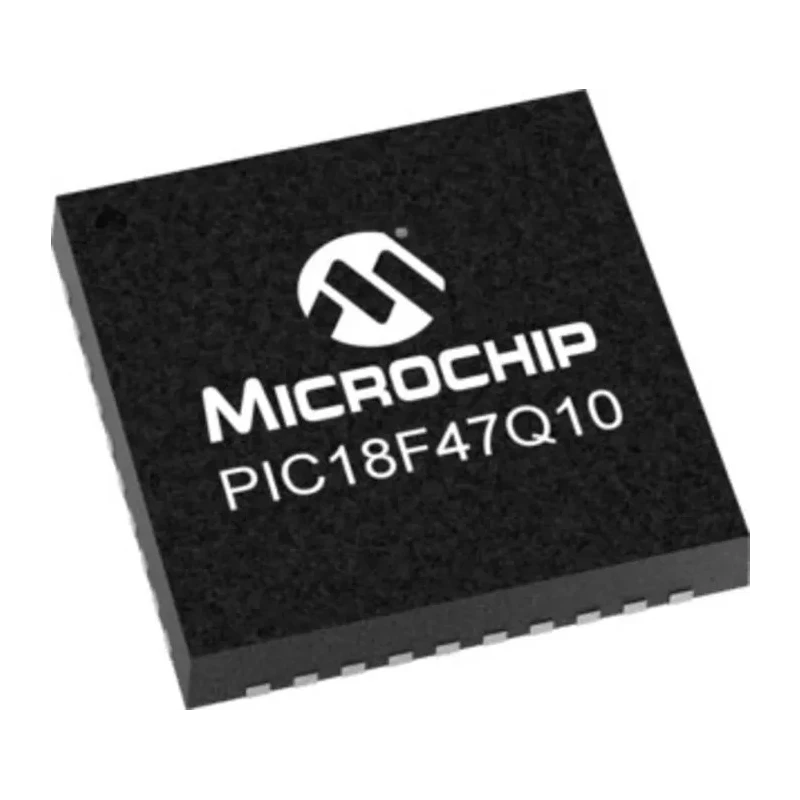

Microchip PIC18F 8-bit PIC Microcontroller 64 MHz 128kB FLASH 40-Pin QFN PIC18F47Q10-I/MP

Microchip PIC18F47Q10-I/MP is an advanced 8-bit PIC microcontroller designed with a PIC18 core that supports 83 instructions and 31 stack levels. It operates at a maximum clock frequency of 64 MHz and provides a robust 128 kB flash program memory with self read/write capability. The microcontroller functions over a wide operating voltage range of 1.8V to 5.5V and supports industrial temperature environments from -40°C to 85°C, making it suitable for demanding applications.

The device features 3728 bytes of data SRAM and 1024 bytes of EEPROM, enabling efficient data storage. It offers 35 channels of 10-bit ADC and a 5-bit DAC, supporting precise analog inputs and outputs for embedded systems. It includes two analogue comparators and a fixed voltage reference module with output levels of 1.024V, 2.048V, and 4.096V.

Incorporated peripherals include multiple timers: three 8-bit timers/counters, four 16-bit timers/counters, and two capture/compare/PWM modules. Additional features such as a hardware capacitive voltage divider for mTouch buttons/sliders, zero-cross detect, and multiple communication interfaces (2 x I2C/SPI, 2 x EUSART with LIN) provide versatility in embedded design.

Power-saving modes including Doze, Idle, and Sleep ensure energy efficiency. Built-in safety features comprise a low current power-on reset, brown-out reset with low-power BOR, windowed watchdog timer, and extended watchdog timer. The microcontroller supports peripheral pin selection and in-circuit serial programming and debugging via two pins for flexible development.

The device is housed in a 40-pin QFN package with surface mount technology, measuring 5 mm by 5 mm and a height of 850 μm. It complies with RoHS standards ensuring environmental safety.

This microcontroller is ideal for use across industrial automation, embedded systems, consumer electronics, automotive applications, and other environments where reliability and power efficiency are critical. Developers benefit from its comprehensive feature set and robust performance at a competitive operating voltage range.

The seamless integration of advanced peripherals and high memory capacity makes PIC18F47Q10-I/MP a preferred solution for complex embedded systems development, offering both flexibility and performance.

Employs PIC18 core with 83 instructions and 31 stack levels. Operates at supply voltage range 1.8V to 5.5V, suitable for industrial temperatures from -40°C to 85°C. Includes 128 kB flash program memory with self read/write capability.

Equipped with 3728 bytes data SRAM and 1024 bytes EEPROM memory. Features 10-bit ADC with 35 channels and 1 5-bit DAC. Provides multiple timers including three 8-bit and four 16-bit timers/counters. Integrates hardware peripherals such as CRC with memory scan and windowed watchdog timer.

Supports low power modes including Doze, Idle, and Sleep for energy saving. Designed with a 40-pin QFN package for surface mount applications. Includes peripheral pin select and in-circuit serial programming via two pins.
