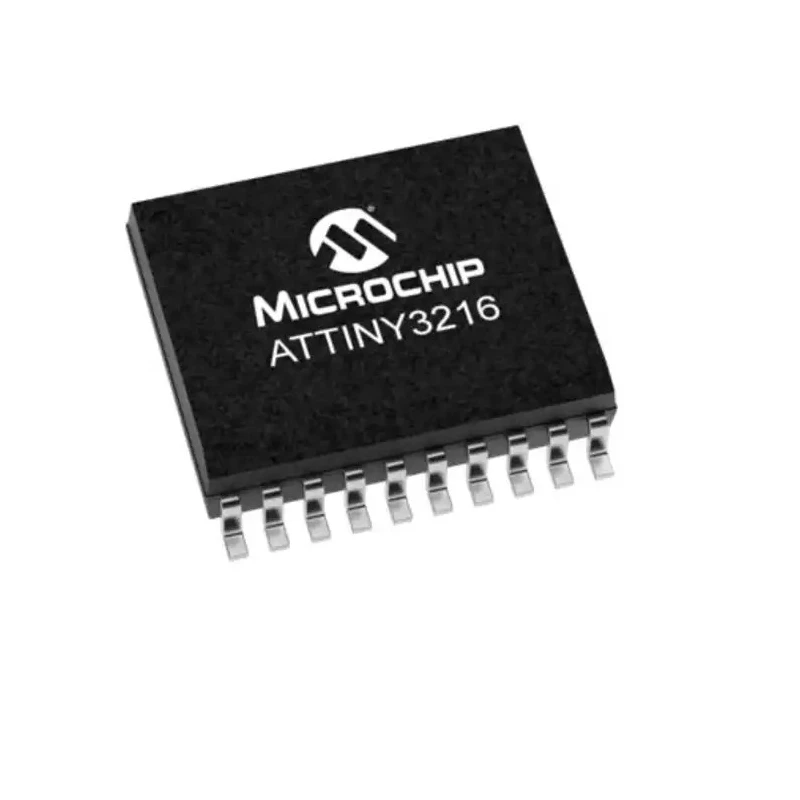

Microchip 8-bit AVR ATTINY3216 Microcontroller 20 MHz 32kB FLASH 20-Pin SOIC ATTINY3216-SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 13mm |
| Model | ATTINY3216-SN |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | ATTINY3216 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 3 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 3 x 8 Bit |
Key Features
- Operates at a maximum clock frequency of 20 MHz.
- Features 32 kB of FLASH program memory and 2 kB of RAM.
- Equipped with 3 x 8-bit DACs and 16 channels of 10-bit ADC.
- Supports multiple sleep modes including Idle, Standby, and Power Down.
- Includes advanced peripherals like Event System, Watchdog Timer, and Peripheral Touch Controller.
- Operates within a supply voltage range of 1.8 V to 5.5 V.
- Has a temperature operating range from -40°C to 125°C.
- Utilizes RISC instruction set architecture with 256 bytes EEPROM.
Product Description
Microchip ATTINY3216-SN 8-bit AVR microcontroller features an 8-bit AVR processor operating at speeds up to 20 MHz, providing efficient processing for embedded applications. It includes 32 KB of FLASH memory for program storage, 2 KB of SRAM, and 256 bytes of EEPROM for non-volatile data retention. This microcontroller comes in a compact 20-pin SOIC surface mount package, measuring 13 mm in length, 7.5 mm in width, and 2.35 mm in height, making it suitable for space-constrained designs.
The device supports low power consumption with three sleep modes: Idle, Standby, and Power Down, enhancing battery life in portable applications. It includes advanced Core Independent Peripherals such as the Event System, Watchdog Timer, and the QTouch Peripheral Touch Controller for capacitive touch sensing applications. Additionally, it integrates three 8-bit Digital-to-Analog Converters (DAC), sixteen 10-bit Analog-to-Digital Converters (ADC), and three analog comparators for versatile analog interfacing.
Designed for industrial, consumer electronics, and embedded control applications, the ATTINY3216-SN operates over a wide temperature range from -40°C to 125°C and supports operating voltages between 1.8 V and 5.5 V. It implements a RISC architecture instruction set for optimized code execution.
Operates up to 20 MHz maximum clock frequency. 32 KB FLASH program memory and 2 KB SRAM for effective program and data storage. Three 8-bit DACs and sixteen 10-bit ADC channels for versatile analog functionality. Multiple low-power sleep modes improve power efficiency.
Includes Core Independent Peripherals such as Event System and Peripheral Touch Controller. Wide operating voltage range from 1.8 V to 5.5 V. Temperature operating range suitable for harsh environments (-40°C to 125°C). RISC-based instruction set architecture for fast and efficient processing.
Compact 20-Pin SOIC surface mount package dimensions: 13 x 7.5 x 2.35 mm.
This microcontroller is ideal for industrial automation, consumer electronics, and compact embedded systems requiring a high level of integration and low power consumption. Explore more Microchip Microcontrollers and related semiconductor components on EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features 32 kB of FLASH program memory for storing programs.
This model includes 2 kB of RAM for data storage.
It operates within a supply voltage range of 1.8 V to 5.5 V.
This microcontroller is equipped with sixteen 10-bit ADC channels.
It comes in a compact 20-pin SOIC package measuring 13 mm in length, 7.5 mm in width, and 2.35 mm in height.
It includes three 8-bit Digital-to-Analog Converters (DACs) for analog output functionality.
The operating temperature range for this microcontroller is from -40°C to 125°C.
It utilizes a RISC instruction set architecture for efficient processing.
This model includes advanced peripherals such as an Event System, Watchdog Timer, and a Peripheral Touch Controller.
It supports 18 programmable I/O pins for interfacing with other components.
This microcontroller complies with RoHS standards.
