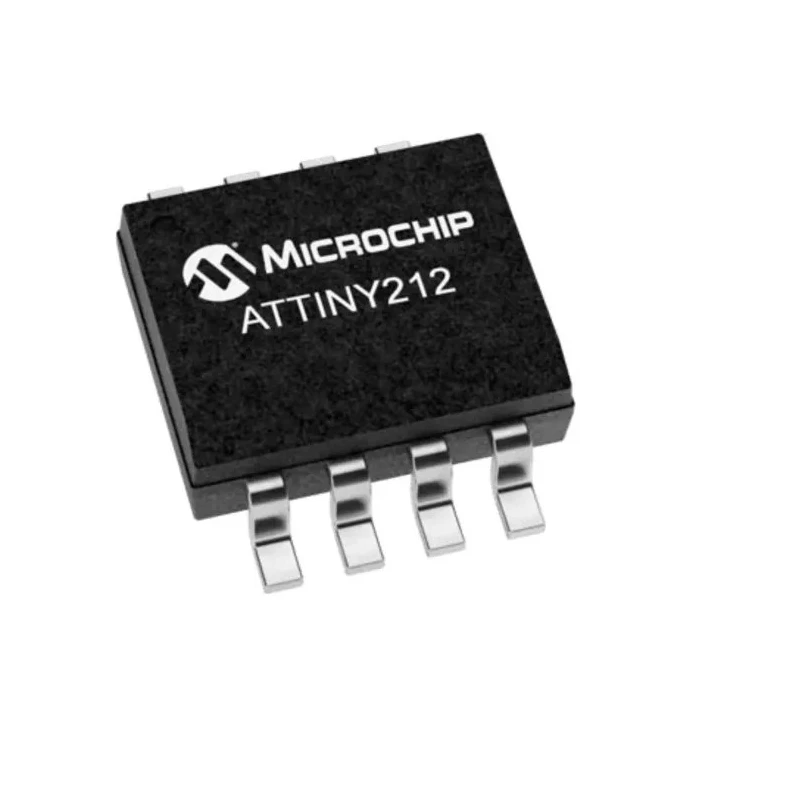

Microchip 8-bit AVR ATTINY212 Microcontroller 20 MHz, 2kB FLASH, 8-Pin SOIC ATTINY212-SSN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 5mm |
| Model | ATTINY212-SSN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | ATTINY212 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 2kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 6 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 8 Bit |
| Operation Voltage | 1.8V - 5.5V |
Key Features
- Features an 8-pin SOIC package suitable for surface mounting.
- Operates at a voltage range from 1.8V to 5.5V with low power consumption.
- Includes 128 bytes of SRAM and 64 bytes of EEPROM for flexible memory applications.
- Supports 6 programmable I/O pins with advanced peripherals such as DAC and ADC.
- Equipped with a 1x 8-bit DAC and six 10-bit ADC channels for analog signal processing.
- Provides multiple sleep modes to save power during idle states.
- Incorporates a hardware multiplier and supports 135 RISC instructions for efficient processing.
- Offers built-in safety features including watchdog timer, brown-out detection, and power-on reset.
Product Description
Microchip ATTINY212-SSN is an 8-bit AVR microcontroller designed for applications requiring compact size and low power consumption. It runs at a maximum clock frequency of 20 MHz and features a 2kB Flash program memory complemented by 128 bytes of SRAM and 64 bytes of EEPROM.
The device comes in an 8-pin SOIC surface mount package, making it suitable for densely packed electronic systems. Operating voltage ranges from 1.8V up to 5.5V, allowing flexibility for various power supply designs while maintaining ultra-low power consumption, ideal for battery-powered and portable gadgets.
Equipped with a rich set of peripherals, the ATTINY212-SSN includes 6 programmable I/O pins, 1 channel 8-bit Digital to Analog Converter (DAC), 6 channels of 10-bit Analog to Digital Converters (ADC), and an analog comparator. These features enable precise analog sensing and output tasks in embedded control systems.
The microcontroller employs a high-performance AVR RISC CPU with 135 instructions and includes a hardware multiplier to accelerate arithmetic operations. Power management is enhanced with three sleep modes: idle, standby, and power-down, maximizing energy efficiency.
Safety and reliability are ensured with integrated watchdog timer, power-on reset, and brown-out detection circuits. The device supports single-pin programming and debugging through the UPDI interface. Its compact 5mm x 3.9mm x 1.5mm dimensions facilitate space-conscious PCB designs.
Features: 8-bit AVR CPU, 2kB Flash memory, 128 bytes SRAM, 64 bytes EEPROM. Operating voltage: 1.8V to 5.5V for flexible power configurations. Max clock frequency: 20 MHz for responsive control performance. Built-in peripherals: ADCs, DAC, comparators, timers.
Low power architecture with multiple sleep modes. Package: 8-pin SOIC, surface mount.
This microcontroller is suited for embedded, industrial control, consumer electronics, and IoT applications requiring compact and efficient processing units. Browse the Microchip Microcontroller selections at EnvMart for compatible development tools and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates within a voltage range of 1.8V to 5.5V.
This model features 2kB of FLASH program memory.
It includes 128 bytes of SRAM and 64 bytes of EEPROM.
The microcontroller supports 6 programmable I/O pins.
The dimensions of this microcontroller are 5mm in length, 3.9mm in width, and 1.5mm in height.
It includes 1 x 8-bit DAC and 6 x 10-bit ADC channels for analog signal processing.
The operating temperature range is from -40°C to 85°C.
It incorporates a watchdog timer, brown-out detection, and power-on reset for safety and reliability.
This microcontroller comes in an 8-pin SOIC surface mount package.
It features 3 timers for various timing applications.
The microcontroller uses a RISC instruction set architecture with 135 instructions.
