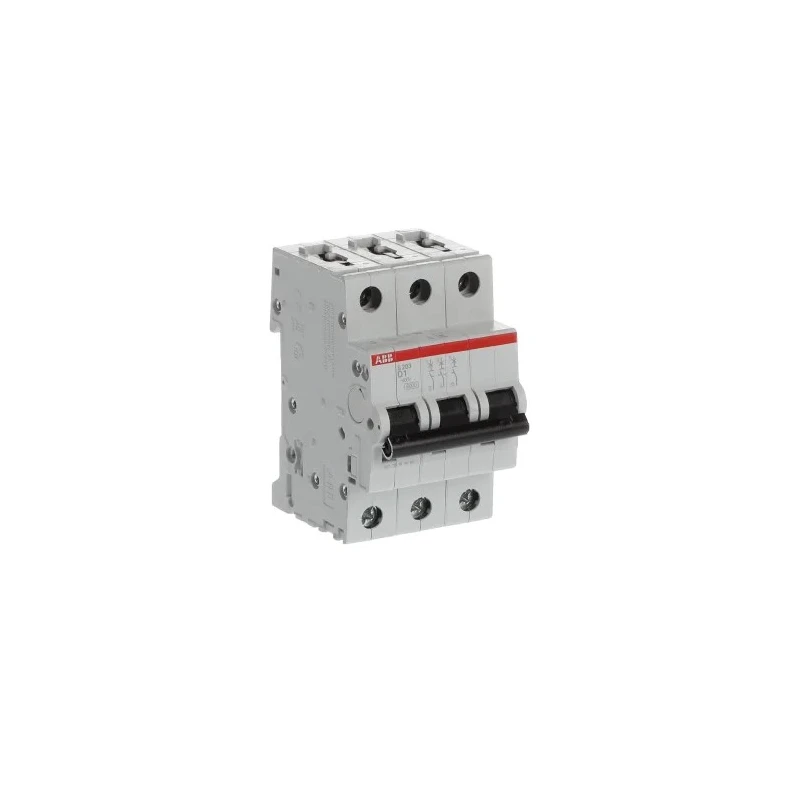

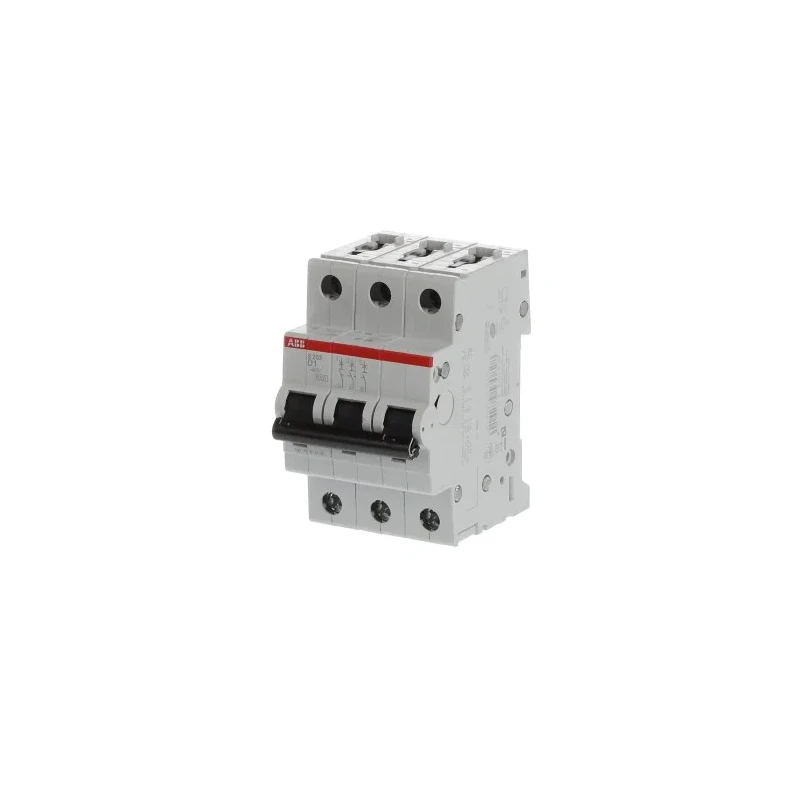

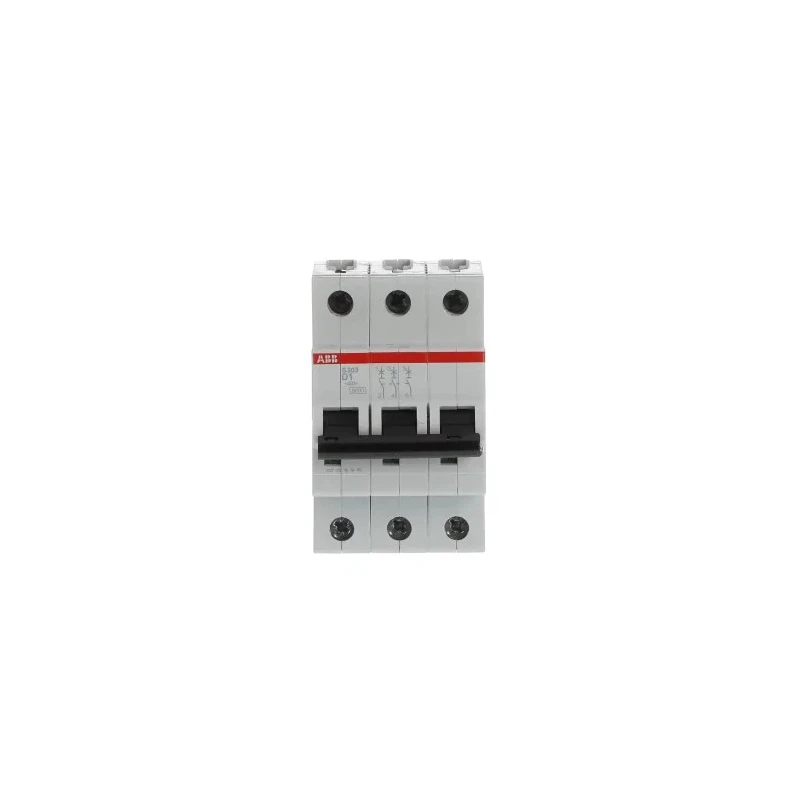

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 1A, Type D, 400V AC, 12V 2CDS253001R0011 S203 D 1A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253001R0011 S203 D 1A - 10 KA |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 12V |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle |
Key Features
- Designed for 3-pole industrial use with 400V AC and 12V DC rated voltage compatibility.
- Type D tripping characteristic supports high inrush currents typical of motor startups.
- Compact System Pro M Compact S200 series design enables DIN rail mounting and space-efficient panel integration.
- Breaking capacity of 6 kA ensures secure interruption of fault currents.
- Screw terminal connections deliver robust and stable conductor installation.
- IP20 and IP40 protection ratings provide basic ingress protection in compliant enclosures.
- Thermomagnetic and electromagnetic tripping mechanisms offer dual protection from overload and short circuits.
- Designed for disassembly with toggle reset actuator for ease of maintenance.
Product Description
ABB 2CDS253001R0011 S203 D 1A - 10 KA Miniature Circuit Breaker from the System Pro M Compact S200 series is a high-quality circuit protection device engineered for three-phase power distribution in industrial, automation, and commercial electrical installations. Rated at 1 ampere current with Type D tripping, it is suited for applications with high transient inrush currents, such as motor control circuits and transformer energisation.
This device supports both AC and DC operation, with rated voltages of 400V AC and 12V DC. It features a 6 kA interrupting capacity that safely disconnects fault currents, safeguarding electrical systems and connected equipment. The device mounts easily onto standard DIN rails, facilitating quick installation and modular assembly within distribution boards.
The dual thermomagnetic and electromagnetic tripping mechanisms provide enhanced protection by responding accurately to prolonged overloads as well as instantaneous short circuits. Screw-type terminals ensure a durable and secure connection with wires, suitable for rugged industrial environments.
With compact dimensions - 52.5mm width, 88mm height, and 69mm depth - this breaker enables dense configurations where panel space is limited. Its IP20 and IP40 ratings grant basic protection against contact and ingress when mounted inside suitable enclosures. The toggle reset actuator simplifies operation and maintenance tasks.
Applications include protection in motor control centres, automation control panels, industrial distribution boards, and retrofit equipment. Designed for disassembly as part of ABB's sustainability initiatives, this breaker supports responsible lifecycle management.
Rated 3-pole, 1A with Type D thermal and electromagnetic tripping. Versatile for 400V AC and 12V DC electrical systems. Reliable 6 kA breaking capacity for fault interruption. Screw terminal connectivity for secure wiring.
Compact dimensions and DIN rail mounting. IP20 and IP40 ingress protection ratings. Toggle actuator for quick reset. Designed for sustainability with easy disassembly. Explore the ABB range of circuit breakers on EnvMart for industrial and automation electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, which ensures secure interruption of fault currents.
It is rated for 400V AC and 12V DC operation, making it versatile for different electrical systems.
This miniature circuit breaker has a current rating of 1 ampere.
It features both thermomagnetic and electromagnetic tripping mechanisms, providing dual protection from overload and short circuits.
This model is designed for DIN rail mounting, facilitating easy installation and modular assembly.
The dimensions are 52.5mm in width, 88mm in height, and 69mm in depth.
It has IP20 and IP40 ratings, providing basic ingress protection when mounted in compliant enclosures.
This model is suitable for applications such as motor control centres, automation control panels, and industrial distribution boards.
It features screw-type terminals for a secure and durable connection with wires.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
The toggle reset actuator simplifies operation and maintenance tasks, allowing for quick resets after tripping.
The country of origin for this model is Germany.
