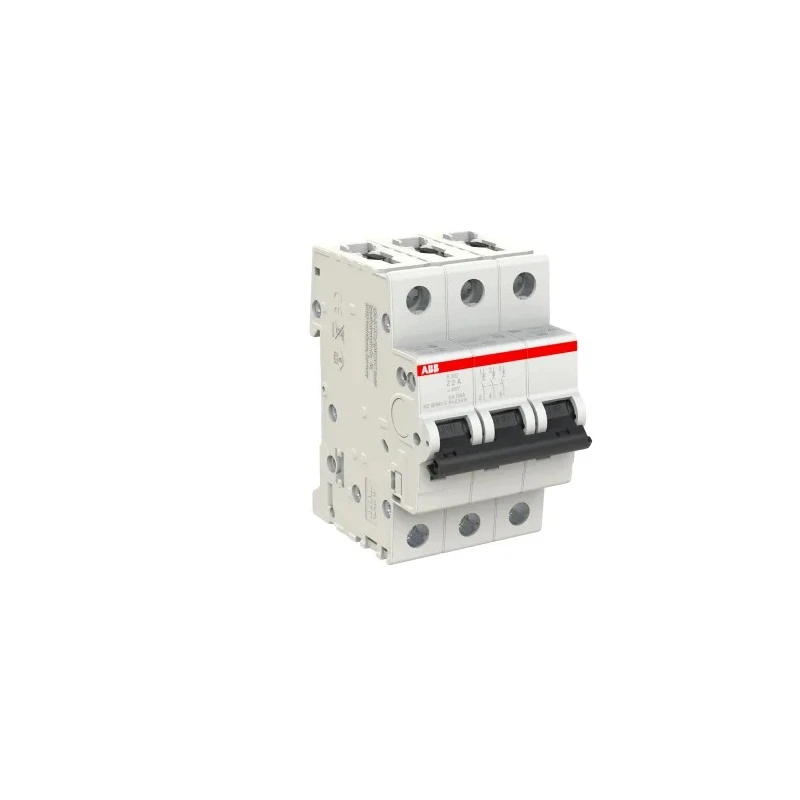

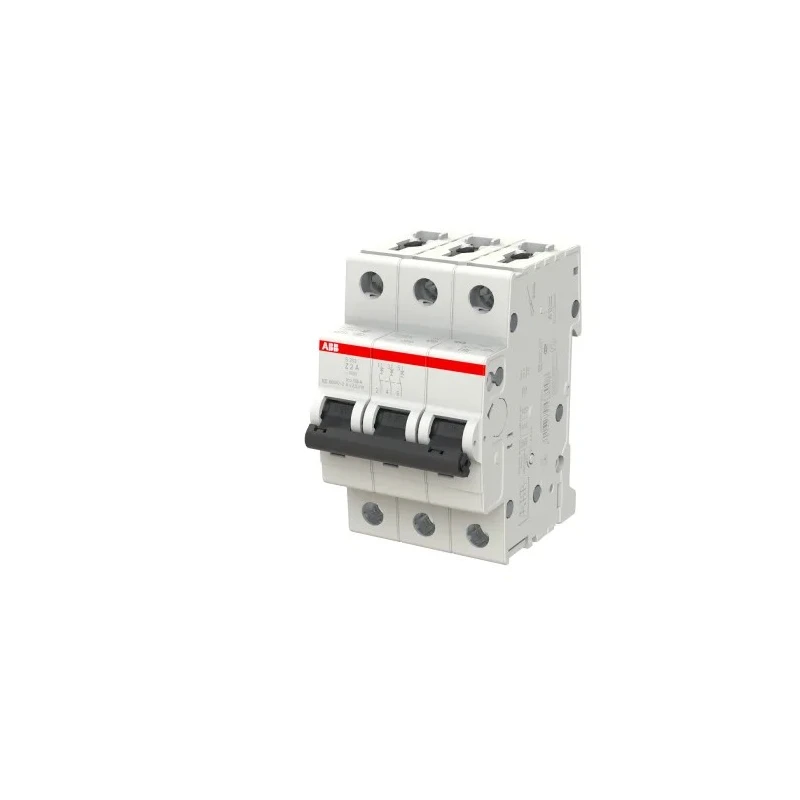

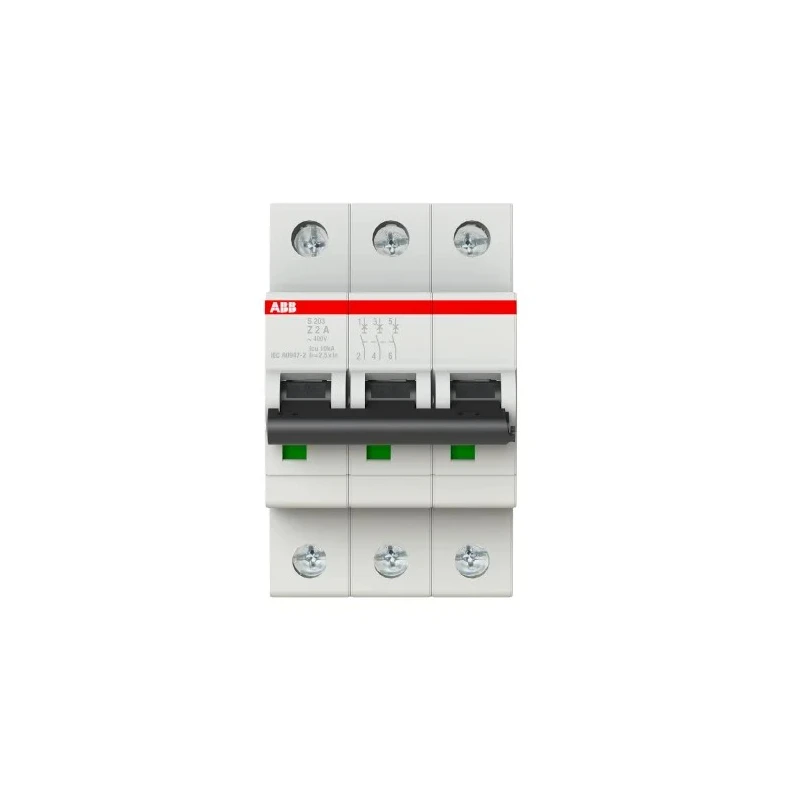

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 2A, Type Z, 400V AC, 6 kA 2CDS253001R0278 S203 Z 2A - 10 KA

ABB 2CDS253001R0278 S203 Z 2A - 10 KA System Pro M Compact S200 Miniature Circuit Breaker is engineered for overcurrent protection in three-phase electrical networks, especially suited for industrial and automation applications requiring high reliability and safety. Rated for 2 amperes current and 400 volts AC operation, it efficiently interrupts faults with a breaking capacity of 6 kA to safeguard circuits. The Type Z tripping characteristic helps prevent unwarranted trips caused by motor start-up inrush currents, ensuring stable operation in motor control circuits.

This 3-pole device is mounted on a DIN rail via an effortless clip mechanism and features secure screw terminal connections that ensure enduring electrical contact under mechanical and thermal stresses. It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, establishing its suitability for international industrial environments. The IP20 and IP40 rating provide personnel protection and limited ingress protection respectively, suitable depending on the installation environment.

The toggle reset actuator delivers clear manual reset capabilities, enhancing ease of maintenance. This breaker is ideal for safeguarding motor control circuits, automation control boards, distribution boards, and retrofit scenarios in DIN rail switchgear assemblies. Its compact design with dimensions of 88 mm height, 69 mm depth, and 52.5 mm width makes it compatible with modular panel assemblies.

Designed for 3-pole applications with a current rating of 2A. Type Z tripping characteristic reduces nuisance tripping from inrush currents. Supports up to 400V AC rated voltage for versatile usage. Offers 6kA breaking capacity for high short-circuit protection.

Mounts easily on DIN rails with screw terminal connections. Constructed to IEC/EN 60898-1 and IEC/EN 60947-2 standards. IP20 and IP40 rated for personnel safety and ingress protection. Toggle reset actuator allows clear manual operation.

Made in Germany ensuring high-quality manufacturing standards.

This Miniature Circuit Breaker is a key component in industrial electrical panels, offering protection in construction, manufacturing, electrical distribution, and automation sectors. It supports the reliable and safe operation of electrical systems.
