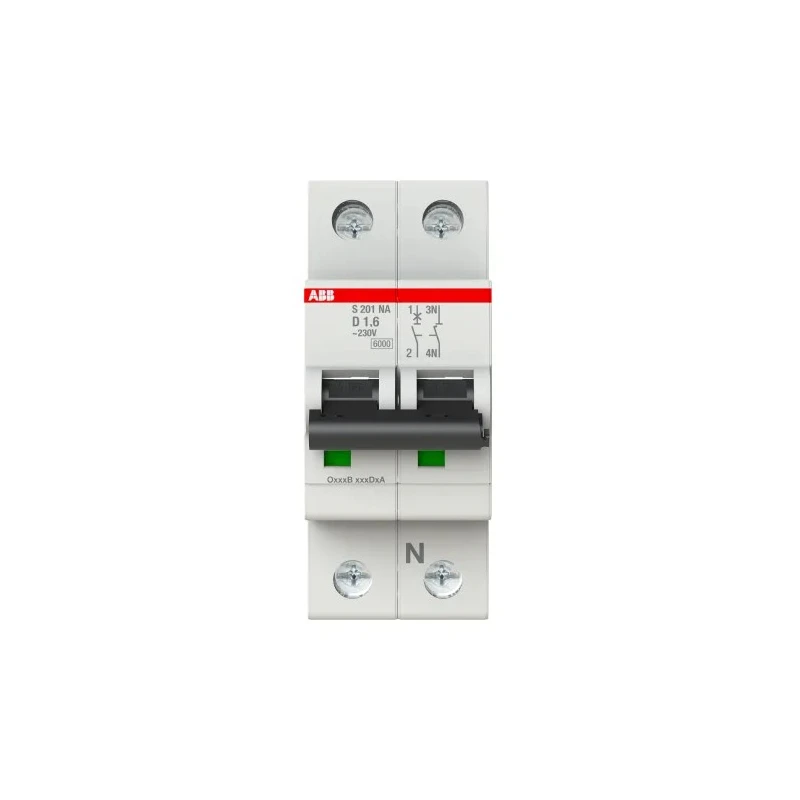

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 1.6A, Type D, 400V AC, 6 kA Breaking 2CDS251103R0971

ABB 2CDS251103R0971 System Pro M Compact S200 Miniature Circuit Breaker is engineered to deliver thermal and electromagnetic protection for single-phase installations. Designed for DIN rail mounting, this 1-pole breaker supports a rated current of 1.6A and a rated AC voltage of 400V AC, making it well-suited for industrial and commercial control panels.

This miniature circuit breaker incorporates a Type D tripping characteristic which is optimal for circuits with high inrush currents, such as motor start circuits. Its thermomagnetic mechanism provides a balance of delayed overload response and instantaneous short-circuit protection, ensuring circuit safety and reliability.

The breaker features a high breaking capacity of 6kA to secure safe fault interruption. Screw terminals with cylinder-lift mechanisms ensure robust and secure wiring connections. Designed for frequent switching operations, it withstands up to 20,000 electrical endurance cycles.

Installation is streamlined with compatibility for standard TH35 DIN rails and mounting profiles TH35-15 or TH35-7.5. The red/green visual indicator permits quick verification of contact status, enhancing operational convenience and safety checks.

Operating reliably across temperatures from -25 °C to +55 °C and being stored between -40 °C to +70 °C, this breaker withstands a range of environmental conditions. With IP20 enclosure protection and optional IP40 cover, it accommodates various protection needs in industrial and automation control cabinets.

Provides thermal and electromagnetic protection for single-phase circuits. Type D tripping characteristic ideal for motor-start and high inrush current applications. Rated for 400V AC voltage and 1.6A current rating for small circuit protection.

6 kA breaking capacity ensures secure electrical fault interruption. Durable screw terminals with cylinder-lift guarantee solid conductor connections. Capable of 20,000 electrical switching cycles supporting frequent use.

Simple mounting on standard TH35 DIN rails with compatible profiles. Visual ON/OFF position indicator aids quick status checks. Wide operational temperature range from −25 °C to +55 °C. IP20 enclosure with optional IP40 cover for enhanced protection.

This ABB Miniature Circuit Breaker is an essential component for commercial and industrial settings, providing reliable circuit protection and compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards. Explore EnvMart's selection to find compatible control gear and related electrical protection devices.
