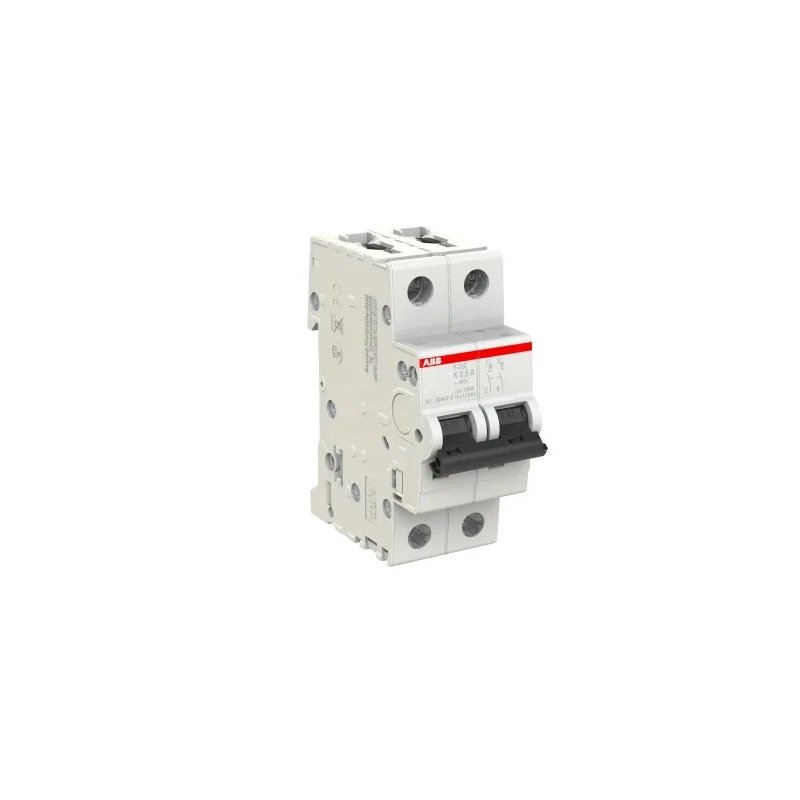

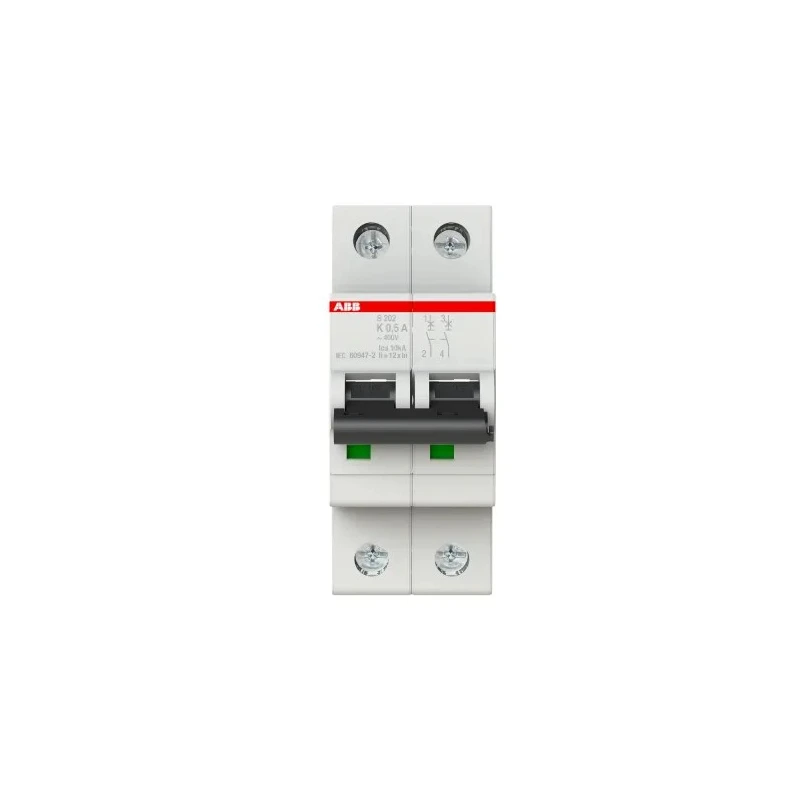

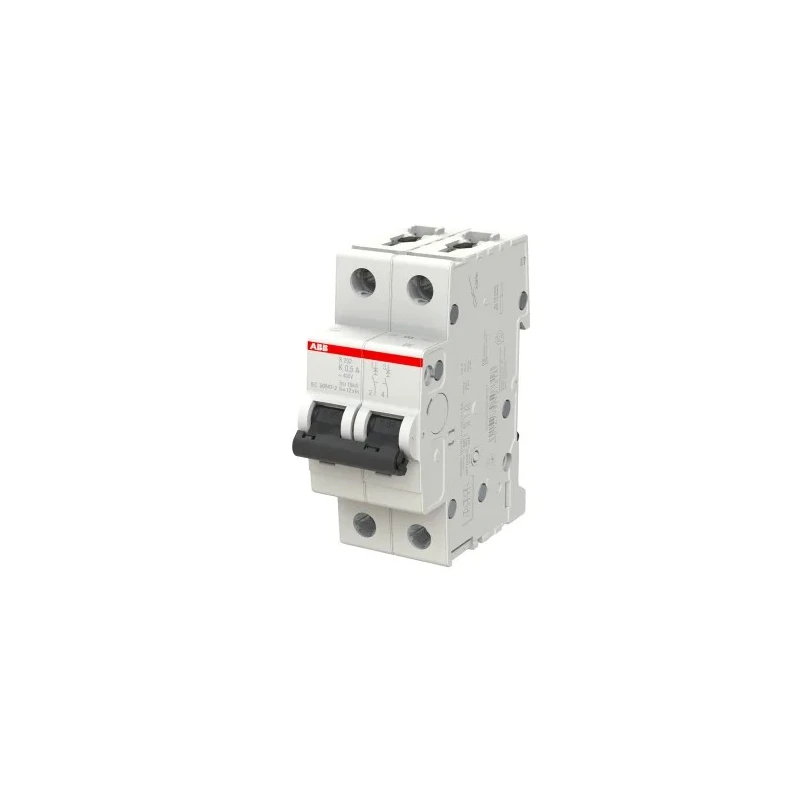

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 500mA, Type K, 400V AC 2CDS252001R0157 S202 K 0.5A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS252001R0157 S202 K 0.5A - 10 KA |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 500mA |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 125V |
| Tripping Characteristics | Type K |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermomagnetic, Electromagnetic |
| Reset Actuator Type | Toggle |
Key Features
- 2-pole design suitable for dual circuit protection.
- 500mA current rating ensures sensitive fault detection.
- Type K tripping characteristic provides selective earth-fault and motor protection.
- Rated for 400V AC and 125V DC applications.
- 6 kA breaking capacity supports short-circuit interruption.
- Thermomagnetic and electromagnetic trip mechanism for precise response.
- DIN rail mount for easy panel integration.
- Screw terminals provide secure conductor connections.
Product Description
ABB 2CDS252001R0157 S202 K 0.5A - 10 KA Miniature Circuit Breaker from the System Pro M Compact S200 series is a high-performance, 2-pole protective device delivering 500mA current rating with a Type K tripping characteristic. Designed for industrial and commercial electrical distribution and control panels, it offers reliable overcurrent protection through a combined thermomagnetic and electromagnetic trip mechanism.
With a 400V AC rating, 125V DC compatibility, and 6kA short-circuit breaking capacity, this breaker is suitable for three-phase power distribution systems and low-voltage DC circuits. The compact form factor (88mm height, 35mm width, and 69mm depth) and DIN rail compatibility enable efficient installation within control enclosures.
The screw terminal type ensures robust conductor clamping, minimizing vibration-related connection issues. The enclosure's IP40 and IP20 ratings provide protection against dust and accidental contact, making it ideal for indoor panel applications.
The Miniature Circuit Breaker is particularly well-suited for protecting motor feeders with high inrush currents, selective earth-fault protection, and retrofit in multi-branch switchboards. Its toggle reset actuator allows manual operation with visual position indication.
2-pole configuration for dual circuit interruption. 500mA current rating with Type K tripping for selective protection. 6 kA breaking capacity ensures high short-circuit withstand capability. DIN rail mount design for quick and secure panel integration.
Screw terminal connections for reliable conductor holding. Compact size supports efficient use of panel space. Thermomagnetic and electromagnetic trip mechanisms provide comprehensive fault response. Rated for both AC (400V) and DC (125V) systems.
IP40 and IP20 enclosure ratings suitable for indoor environments. Manufactured in Germany ensuring compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
This circuit breaker is essential for electrical engineers and maintenance professionals engaged in industrial automation, commercial building electrical design, and factory panel distribution systems. It delivers dependable and precise protection, ensuring operational safety and equipment longevity.
Explore additional ABB System Pro M Compact products and circuit breakers on EnvMart for comprehensive electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500mA, ensuring sensitive fault detection.
It has a breaking capacity of 6kA, which supports effective short-circuit interruption.
The circuit breaker is rated for 400V AC and 125V DC applications.
It features a thermomagnetic and electromagnetic trip mechanism for precise fault response.
It is designed for DIN rail mounting, facilitating easy installation within control panels.
The dimensions are 88mm in height, 35mm in width, and 69mm in depth.
It has IP40 and IP20 ratings, providing protection against dust and accidental contact for indoor applications.
It uses screw terminals, which ensure secure connections for conductors.
This model belongs to the System Pro M Compact series by ABB.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
It is suitable for protecting motor feeders, providing selective earth-fault protection, and use in multi-branch switchboards.
The reset actuator is a toggle type, allowing manual operation with visual position indication.
