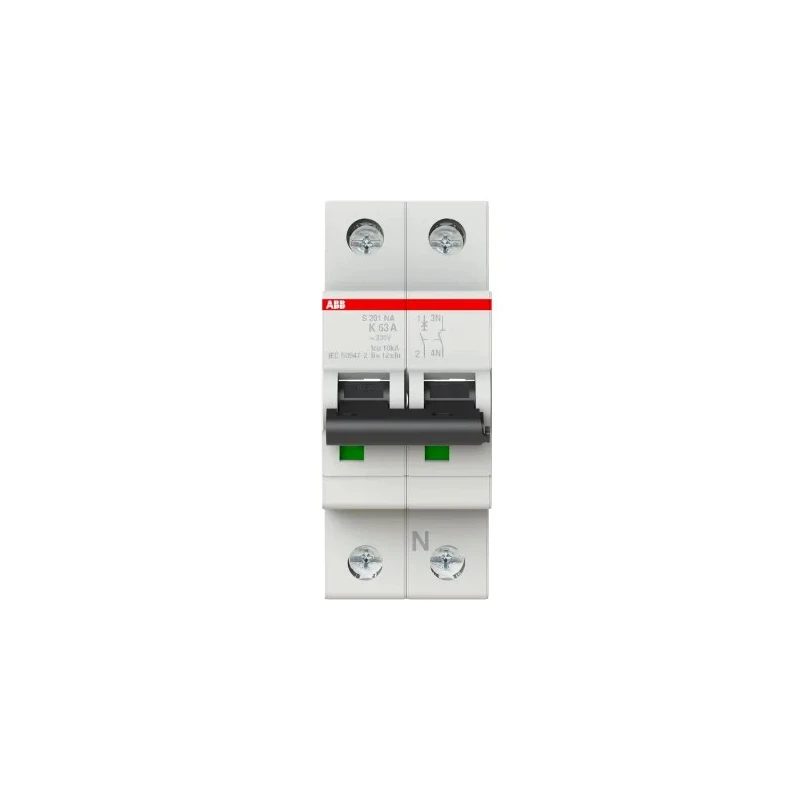

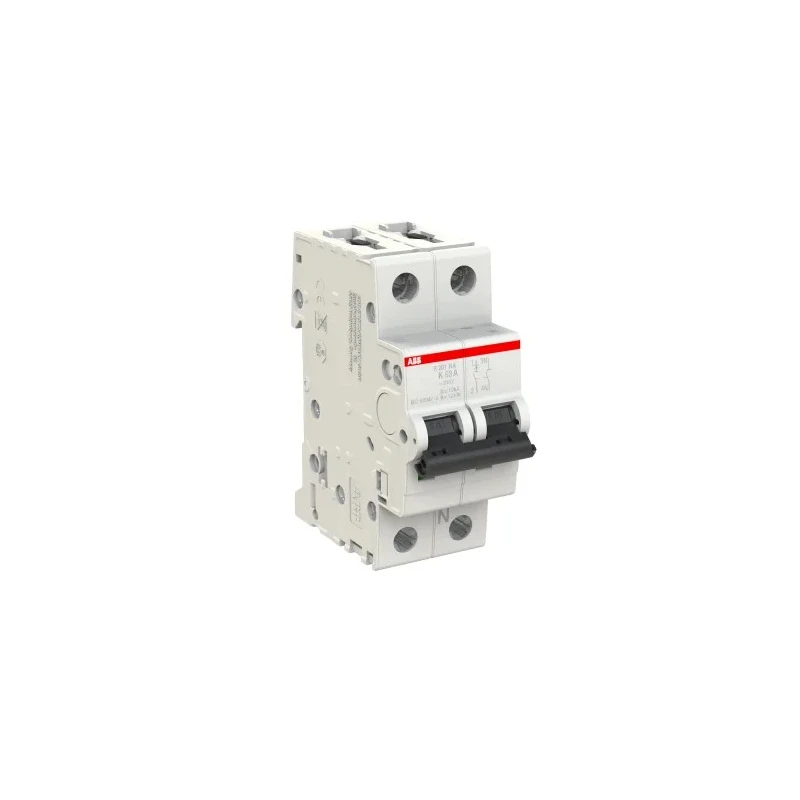

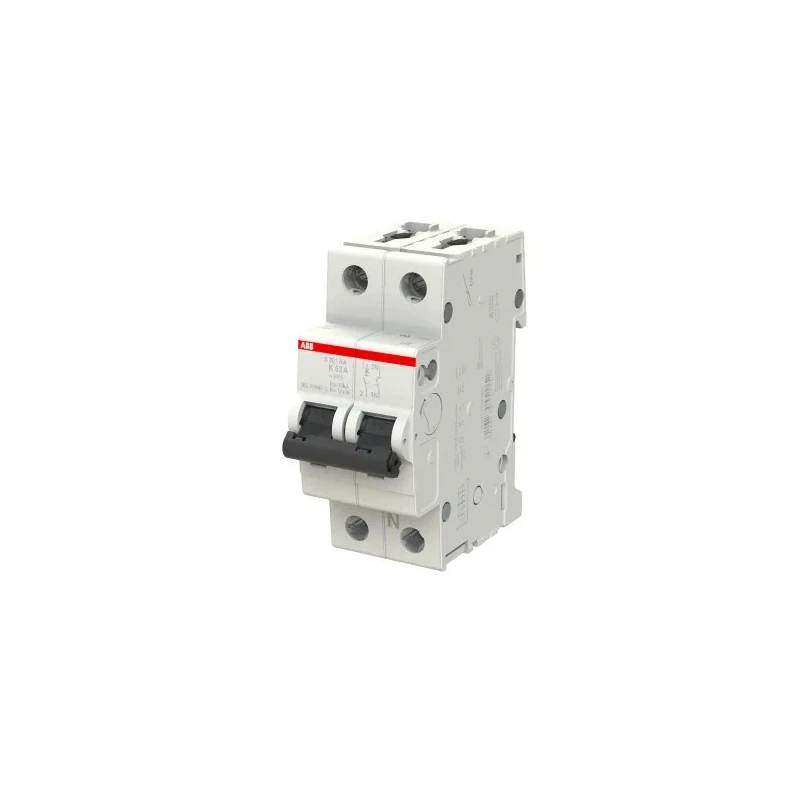

ABB System Pro M Compact S200 Miniature Circuit Breaker 1-Pole 63A Type K 400V AC 6kA Breaking Capacity 2CDS251103R0607

ABB 2CDS251103R0607 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality electrical protection device designed for single-phase installations up to 400 V AC with a rated current of 63A.

It combines thermomagnetic and electromagnetic tripping mechanisms to ensure reliable protection against overloads and short circuits in various industrial, residential, and commercial applications. The breaker is engineered for mounting on standard TH35 DIN rails, occupying a compact width of 35mm, height of 88mm, and depth of 69mm, allowing for modular and space-efficient distribution panel layouts.

The Type K tripping characteristic makes this breaker ideal for motor control circuits with high inrush currents, providing selective short-circuit response. Its breaking capacity of 6 kA limits fault energy, protecting downstream equipment effectively. The toggle switch actuator enables clear and safe manual operation, aided by a visible red ON/green OFF indicator showing contact position.

The device employs screw-type cylinder-lift terminals, accommodating flexible and rigid conductors up to 35 mm² depending on the conductor type and ferrule usage, ensuring secure electrical connections. It withstands operating temperatures ranging from −25 °C to +55 °C and is rated with IP40 and IP20 ingress protection levels for dust and accidental contact resistance.

Conforming to IEC/EN 60947-2 and IEC/EN 60898-1 standards, this breaker assures safety and performance standards compliance. Auxiliary and modular accessories such as auxiliary contacts, shunt trips, and undervoltage releases can be fitted to extend functionality as needed.

Rated current of 63A for high-load circuit protection. Type K characteristic provides selective short-circuit response. 6 kA breaking capacity to limit fault energy effectively. Toggle switch actuator for clear manual operation.

Screw terminals with cylinder-lift design for flexible conductor options. Mountable on standard TH35 DIN rails for modular panel installation. Compact size: 35mm width, 88mm height, 69mm depth. Operating temperature range between −25 °C and +55 °C.

Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards. Auxiliary accessories available for enhanced functionality.

This Miniature Circuit Breaker is suitable for industrial, commercial, and residential circuit protection applications, including motor control circuits, lighting, and socket wiring within automation and distribution panels. Explore EnvMart's extensive selection of electrical protection devices to find solutions tailored to your application needs.
