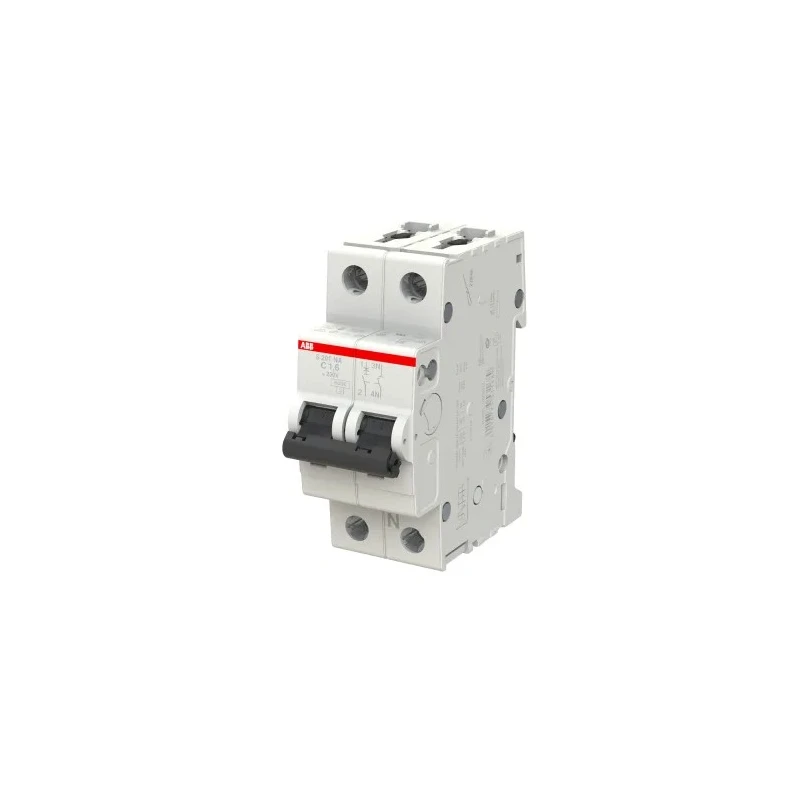

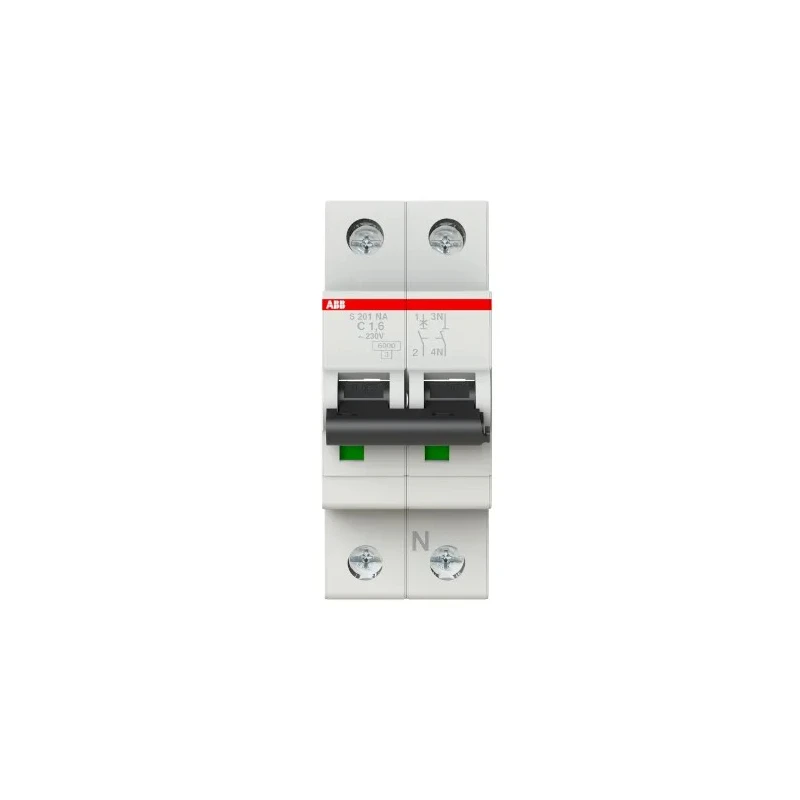

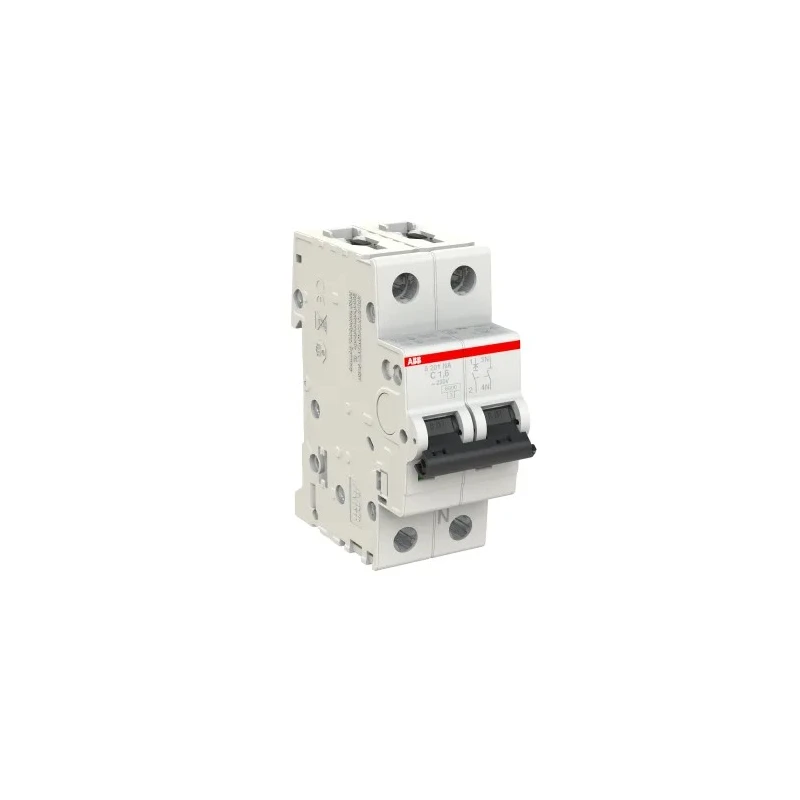

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 1.6A, Type C, 400V AC, 6 kA Breaking 2CDS251103R0974

ABB 2CDS251103R0974 Miniature Circuit Breaker, 1-Pole, 1.6A Current Rating, Type C Trip, and 400V AC Rated Voltage designed for safe and reliable circuit protection in low-voltage electrical systems.

This miniature breaker from the System Pro M Compact S200 series integrates a thermomagnetic tripping mechanism combining delayed thermal overload protection with rapid electromagnetic response to short circuits. It features a 6 kA breaking capacity, ensuring effective fault isolation under typical residential, commercial, and industrial electrical distribution conditions.

The device mounts easily on standard DIN rails, occupying a compact width of 35mm, height of 88mm, and a depth of 69mm. Screw terminals provide secure and versatile conductor connections, accommodating a range of cable sizes. The toggle switch actuator offers straightforward manual reset operation with clear indication of ON/OFF status.

Designed and manufactured in Germany, this circuit breaker conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring international compliance and quality. It is rated IP20 and IP40, delivering solid protection against physical impacts and ingress of dust in electrical panels.

Applications include protection for lighting and socket circuits in commercial premises, machine control panels, automation racks, and small industrial installations with moderate motor starting currents.

Provides 6 kA breaking capacity for efficient fault clearing. Type C characteristic protects circuits with moderate inrush currents. Screw terminals offer secure and reliable conductor connection. Compact DIN rail mountable design for easy integration.

Toggle switch actuator for clear manual ON/OFF indication. Thermomagnetic tripping protects against overload and short circuits. Suitable for ambient operation from −25°C to +55°C. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

IP20 and IP40 rated for dust and solid ingress protection.

This ABB Miniature Circuit Breaker is an excellent choice for industrial, commercial, and residential electrical protection needs, providing reliable operation and compliance with international standards. Explore more options and related ABB products at EnvMart to ensure optimal electrical safety solutions.
