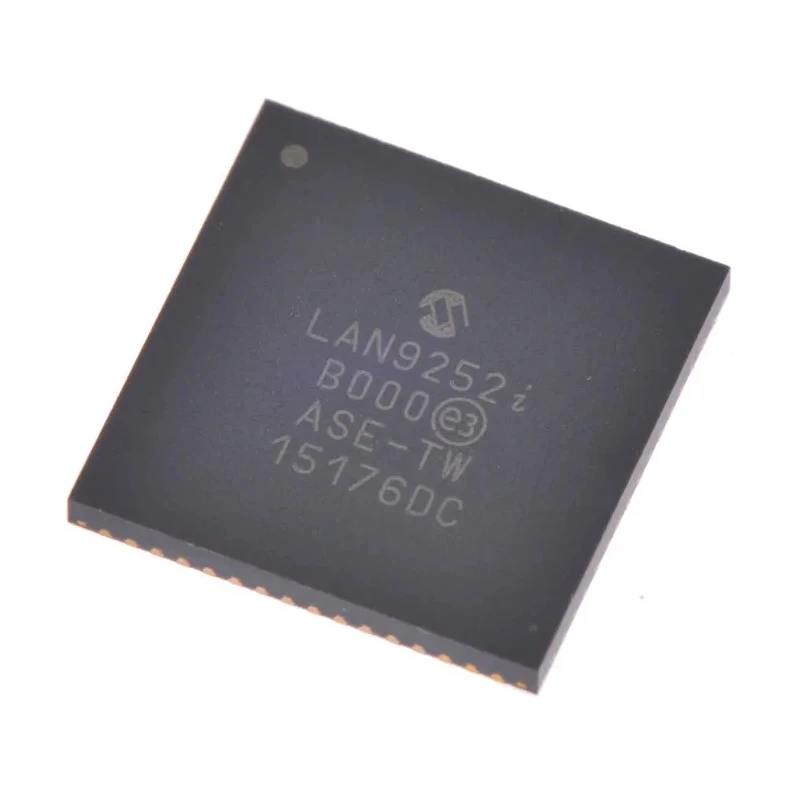

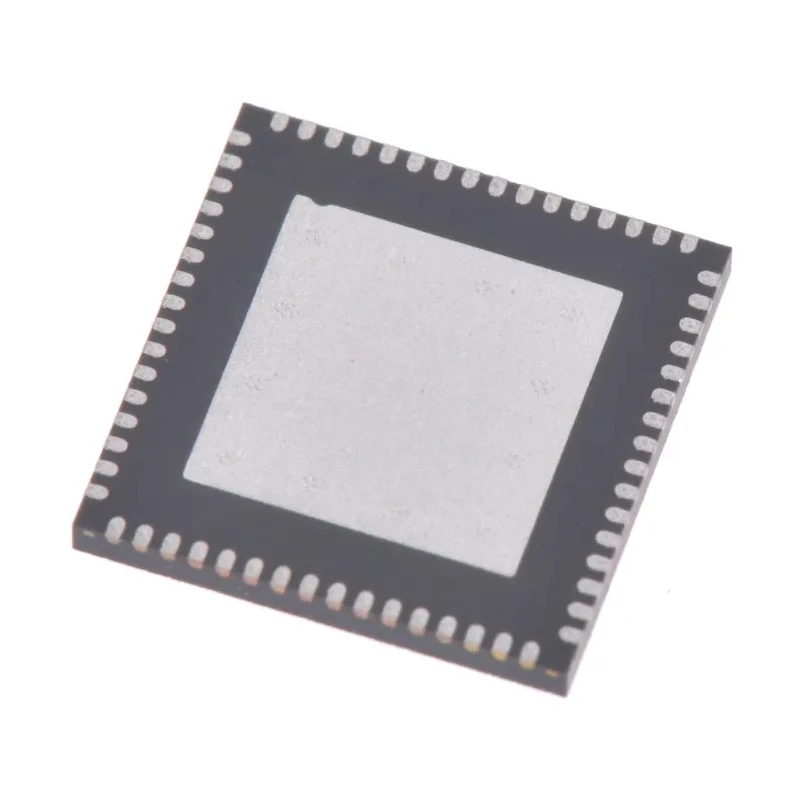

Microchip 64-Pin QFN Ethernet Controller 3.3V 100 Mbps Host Bus Full Duplex/Half Duplex LAN9252I/ML

Microchip LAN9252I/ML is a 64-Pin QFN Ethernet Controller designed for industrial and embedded applications operating at 3.3 V. It supports a maximum data rate of 100 Mbps and provides full duplex and half duplex communication modes. This Ethernet controller is suitable for high-performance network interfacing with low power consumption and compact packaging.

The device features dual integrated Ethernet PHYs, each with an HP Auto-MDI-X capability, enabling use of direct connect or crossover LAN cables without manual intervention. It supports internal loopback mode facilitating diagnostics and maintenance in industrial environments. Packaged in a surface mount QFN (Quad Flat No-lead) with 64 pins, it offers ease of mounting and minimal PCB space usage.

Operating temperature range from -40°C to 85°C ensures reliable performance in harsh industrial conditions. Supported standards include ANSI X3.263, IEEE 802.3u, and IEEE 802.3, making it compliant with established Ethernet protocols.

The LAN9252I/ML integrates a 3-port EtherCAT slave controller with four SyncManagers, three Fieldbus Memory Management Units (FMMUs), and a 64-bit Distributed Clock. It also provides 4K bytes of dual port memory (DPRAM) to facilitate efficient data transfers. The controller interfaces with multiple bus options including SPI/SQI, HBI, and 16-bit digital IO, offering flexible integration with various embedded controllers.

Additional features include cable diagnostic support and 100BASE-FX support through an external fiber transceiver, expanding its networking capabilities. It also includes a 1.8V to 3.3V variable voltage I/O and an integrated 1.2V regulator to support single 3.3V power operation, ensuring power efficiency.

Maximum data rate of 100 Mbps for fast data communication. Full and half duplex communication modes supported. Dual integrated Ethernet PHYs with HP Auto-MDIX for flexible cabling options. 3-port EtherCAT slave controller with FMMUs and SyncManagers.

Compatible with 8/16-bit and 32-bit embedded controllers via multiple bus interfaces. Operates reliably over extended temperature range (-40°C to 85°C). Surface mount QFN package with 64 pins for compact designs. Supports Ethernet standards ANSI X3.263, IEEE 802.3u, IEEE 802.3.

Includes integrated 1.2V regulator and variable voltage I/O. Industry applications include industrial automation, embedded networking, and manufacturing systems.

This Microchip Ethernet Controller LAN9252I/ML is ideal for industrial control, automated manufacturing, and embedded communications requiring efficient and robust networking hardware. Discover more advanced semiconductor components and Ethernet Interface Ics in our comprehensive catalog for your next industrial or product design project.
