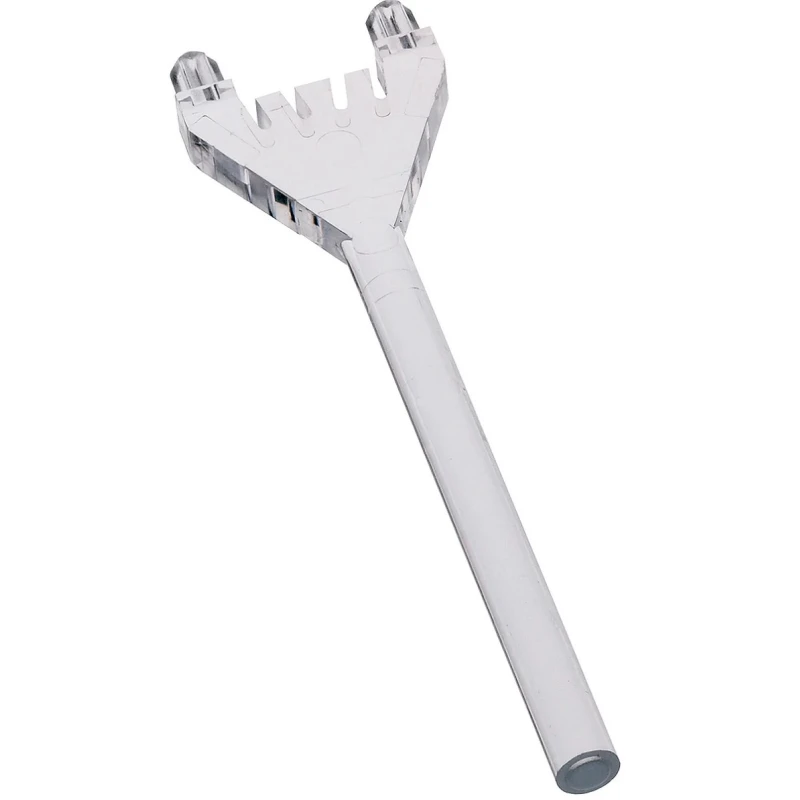

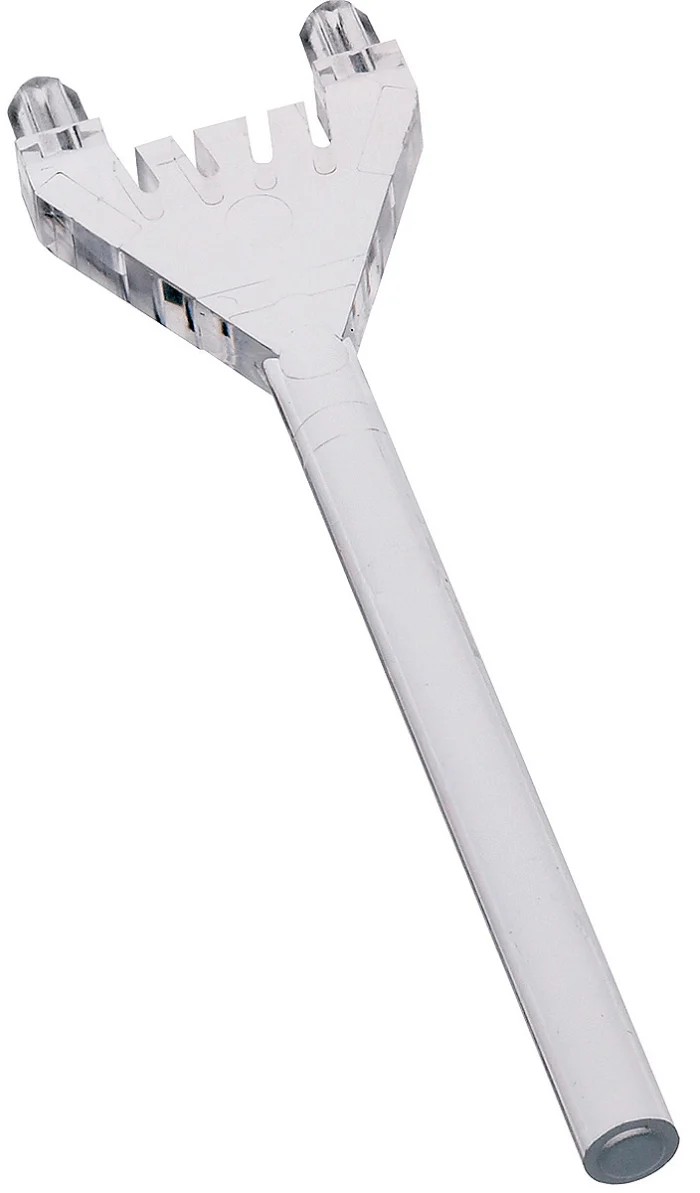

Mentor GmbH PCB 1-Way Straight Rigid LED Light Pipe Clear Lens Yellow LED 45mm 1294.1003
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Mentor GmbH |
| Orientation | Straight |
| Length | 45mm |
| Number Of Ways | 1 |
| Mount Type | PCB |
| Outside diameter | 3mm |
| Inside Diameter | 2.2mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Flexible/Rigid | Rigid |
| Light Pipe Shape | Round |
| Number of Light Pipes | 1 |
| Configuration Rows x Columns | 1 x 1 |
| 1294.1003 Mentor GmbH PCB 1-Way Straight Rigid LED Light Pipe Clear, YellowBrand | Mentor GmbH |
Key Features
- The light pipe has a clear lens with a yellow LED colour for effective illumination.
- Rigid construction ensures reliable light transmission and durability.
- Designed with one way and straight orientation for precise light guidance.
- Measures 45mm length with a 3mm outside diameter and 2.2mm inside diameter.
- Complies with RoHS standards and is manufactured in Germany for quality assurance.
- Suitable for use with up to three Chip LEDs with an 0805 footprint or smaller.
- Features push-fit lugs for secure PCB mounting and easy installation.
- Ambient operating temperature ranges from -40°C to +85°C, supporting various industrial conditions.
Product Description
Mentor GmbH 1294.1003 PCB 1-Way Straight Rigid LED Light Pipe is a high-performance vertical light guide designed for transmitting light from PCB-mounted LEDs to user interfaces with minimal luminance loss and no light bleed.
This rigid light pipe features a round shape with a 3mm diameter and 45mm length. It is designed with a clear lens and yellow LED colour, providing effective and precise illumination for electronic components and LED lighting applications.
The product is engineered for use with surface mount (SMD) LEDs and can accommodate up to three Chip LEDs with an 0805 footprint or smaller, enabling bi-colour or tri-colour display configurations. Push-fit lugs ensure secure attachment to the PCB, with the light pipe's inject face positioned close to the LED on the board for optimal light transmission.
Built for robust industrial use, this light pipe operates reliably within an ambient temperature range of -40°C to +85°C. It conforms to RoHS standards, ensuring compliance with environmental regulations.
Manufactured in Germany, this component guarantees quality and durability for industrial, electronic, and laboratory applications, including instrumentation, control panels, and display units.
The light pipe offers effective light transmission with minimal losses and no adjacent element light bleed. Rigid round shape with precise dimensions supports consistent performance. Compliance with RoHS ensures environmental safety and product reliability.
Versatile functionality suitable for bi-colour or tri-colour LED displays. Easy PCB mounting with push-fit lugs ensures quick and secure installation. Wide ambient temperature range supports diverse industrial environments.
Ideal for industrial electronics, laboratory instrumentation, and manufacturing control panels. Explore the full range of LED Lighting Components at EnvMart for reliable and efficient electronic lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a length of 45mm, an outside diameter of 3mm, and an inside diameter of 2.2mm.
It operates reliably within an ambient temperature range of -40°C to +85°C.
It is designed to accommodate up to three Chip LEDs with an 0805 footprint or smaller.
This unit features push-fit lugs for secure attachment to a PCB, allowing for easy installation.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
The configuration is designed as a single way, with a 1 x 1 row and column layout.
It has a round shape, which supports effective light transmission.
It is manufactured in Germany, ensuring quality assurance.
The light pipe features a yellow LED color for effective illumination.
It has a rigid construction, which ensures reliable light transmission and durability.
It is suitable for industrial electronics, laboratory instrumentation, and manufacturing control panels.
This model includes one light pipe.
