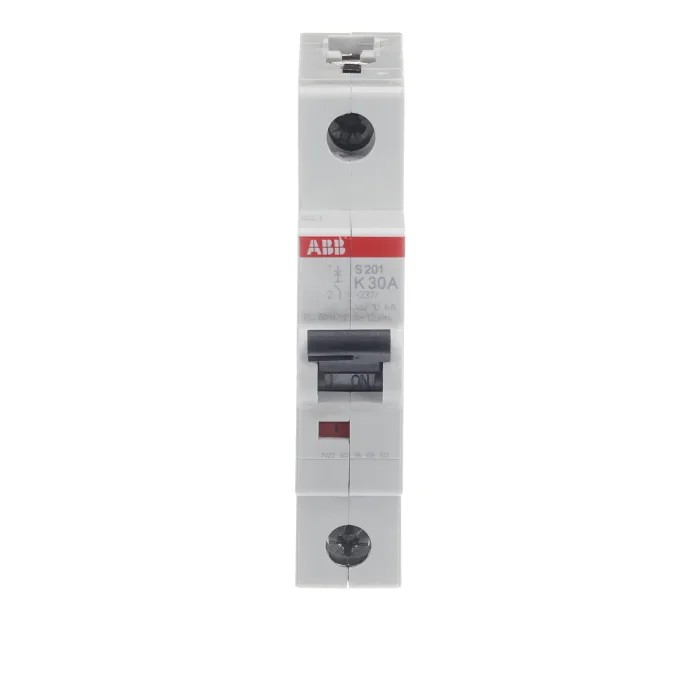

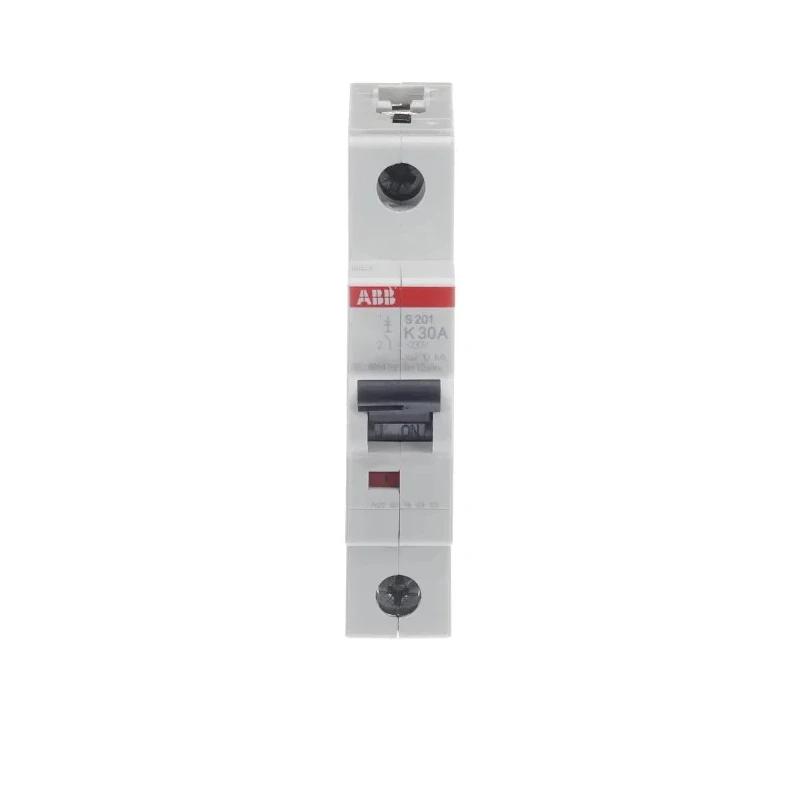

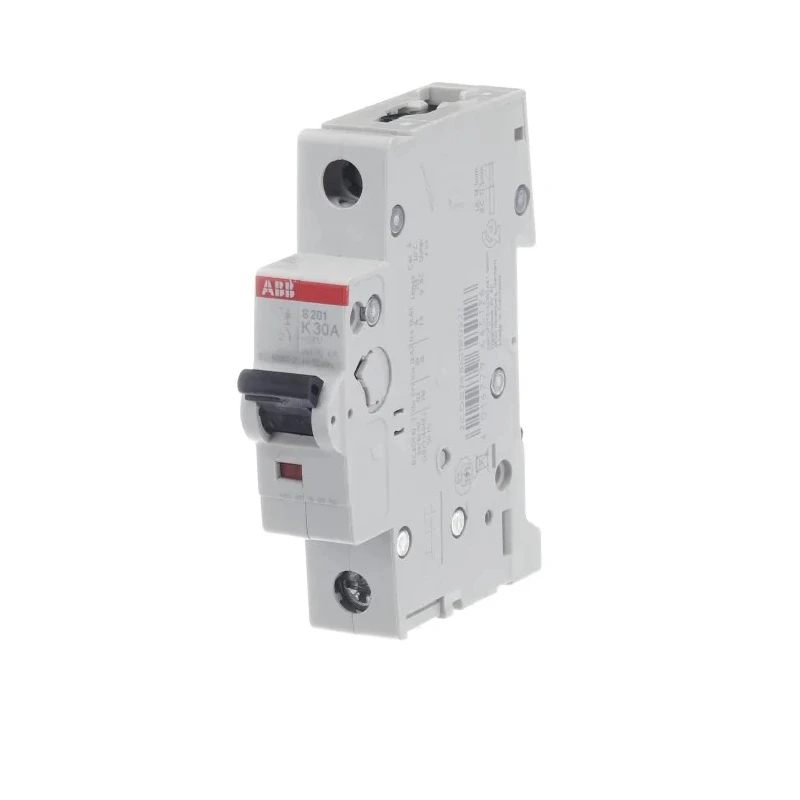

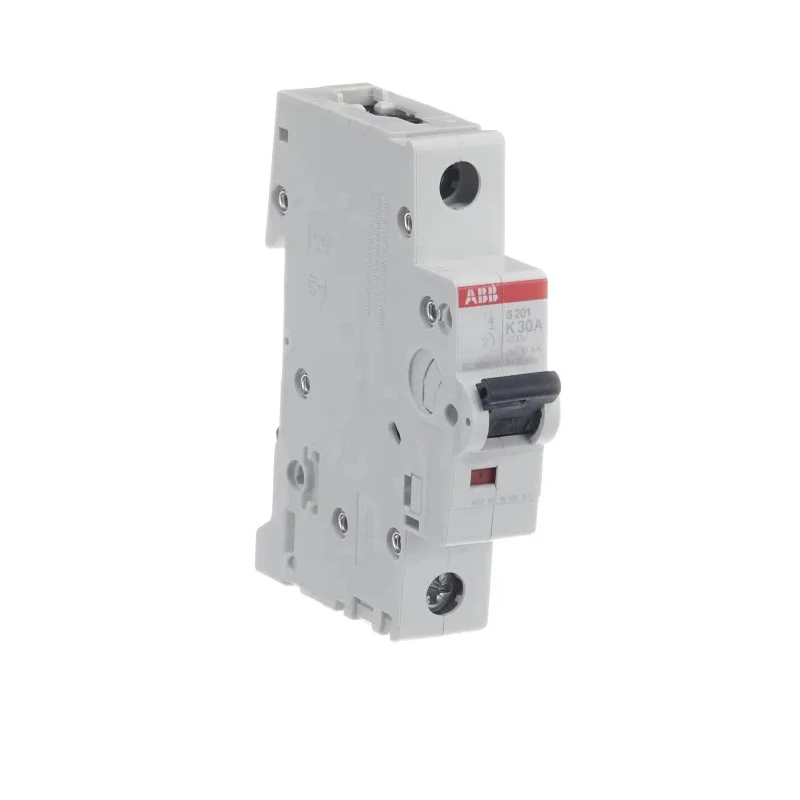

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 30A, Type K, 400V AC, 72V DC, 6 kA Breaking 2CDS251001R0527

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 30A, Type K, 400V AC, 72V DC, 6 kA Breaking 2CDS251001R0527



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS251001R0527
Depth	69mm
IP Rating	IP20, IP40
Width	17.5mm
Mount Type	DIN Rail
Current Rating	30A
Series	S200
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Rated DC Voltage	72V
Tripping Characteristics	Type K
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Compact 17.5mm width designed for DIN rail mounting.
Rated for 400V AC and 72V DC operational voltages.
Includes type K tripping characteristics for precise overload protection.
Features a toggle switch for easy reset and status indication.
Suitable for residential and commercial electrical applications.
Advanced thermal and electromagnetic tripping mechanisms enhance safety.
Robust screw terminal connection ensures secure wiring.
IP20 and IP40 ratings provide reliable protection against ingress.

Product Description

ABB 2CDS251001R0527 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality, 1-pole electrical protection device rated for 30 amperes with a type K tripping characteristic. Operating up to 400V AC and 72V DC, it features a breaking capacity of 6 kA, delivering reliable overload and short circuit protection for various electrical circuits.

This compact circuit breaker measures 17.5mm in width, 88mm in height, and 69mm in depth, designed for quick and secure DIN rail mounting. Its screw terminal type ensures safe and stable connections, while the toggle switch allows straightforward resetting and clear red ON/green OFF indication for operational status.

Equipped with both thermal and electromagnetic tripping mechanisms, it protects circuits against overloads and short circuits effectively. The device meets stringent IEC/EN 60898-1 and IEC/EN 60947-2 standards, confirming its compliance with international safety and performance requirements.

IP20 and IP40 ingress protection ratings make it suitable for diverse indoor electrical environments. This miniature circuit breaker finds use in residential, commercial, and light industrial electrical systems, providing essential safety and circuit reliability.

Manufactured in Germany as part of ABB’s Better World initiative, the product is designed for disassembly, supporting environmental sustainability. It is compatible with auxiliary contacts for enhanced functionality in complex installations.

Compact 1-pole MCB with 30A current rating. Type K tripping curve for efficient overload protection. Breaking capacity rated at 6 kA for safety against short circuits. DIN rail mounting with screw terminal connections. Clear toggle switch with ON/OFF indication.

Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards. IP20 and IP40 protection ratings for robust ingress protection. Designed and manufactured in Germany for high quality and sustainability.

This ABB Miniature Circuit Breaker is ideal for installers and electrical engineers seeking reliable circuit protection solutions in residential and commercial applications. Explore more ABB circuit breakers and electrical components at EnvMart for your project needs.
