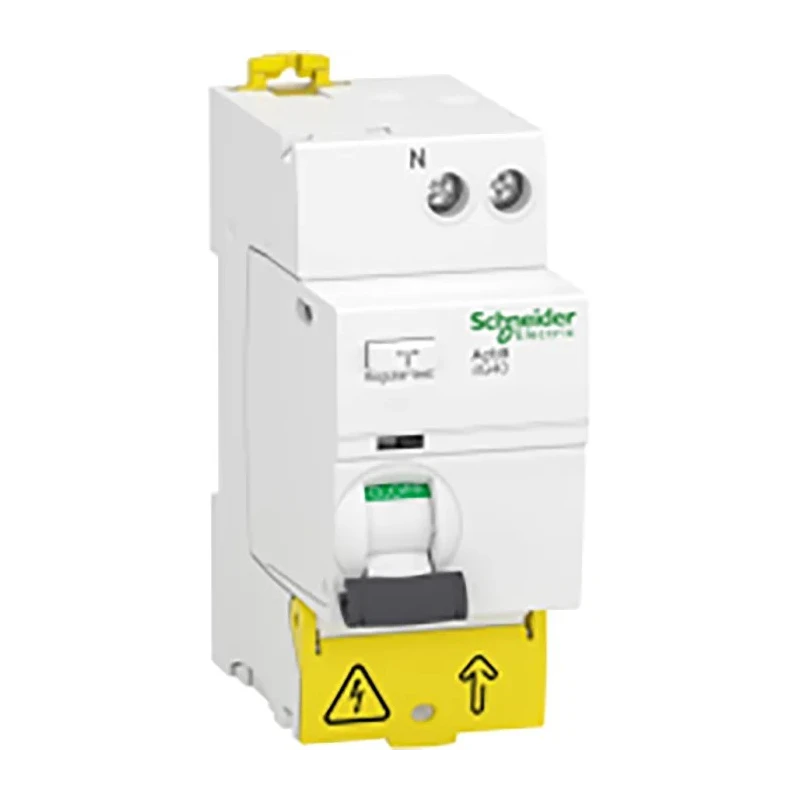

Schneider Electric Acti9 iIG40 Series Residual Current Circuit Breaker 25A 1-Pole 300mA Type AC 1500A
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | Acti9 |
| Depth | 85mm |
| Width | 74mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | Acti9 iIG40 |
| Terminal type | Screw |
| Breaking Capacity | 1500A |
| Number of Poles | 1 |
| Standards/Approvals | REACH, EU RoHS, RoHS |
| Impulse Voltage | 4 Kv |
| Tripping Characteristics | Type AC |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | AC |
Key Features
- Designed for AC type tripping characteristics to protect against earth leakage faults.
- Mounts easily on DIN rail systems for quick installation.
- Breaking capacity of 1500A ensures robust fault interruption.
- Compact dimensions of 85mm height, 74mm width, and 85mm depth.
- Equipped with a toggle switch reset actuator for manual control.
- Features thermal magnetic tripping mechanism for enhanced safety.
- Impulse voltage rating of 4 kV for resilience against transient surges.
- Made in Spain, conforming to REACH and RoHS environmental standards.
Product Description
Schneider Electric's Acti9 iIG40 Series Residual Current Circuit Breaker model A9R77625 is a high-performance electrical safety device rated at 25A with a 1-pole design and 300mA trip sensitivity, specifically engineered for AC type earth leakage protection. Operating at 230/400 Vac voltage and featuring a breaking capacity of 1500A, it offers instantaneous break time response to faults. The device mounts on DIN rail setups commonly used in industrial and commercial electrical panels, enabling straightforward installation and maintenance.
Constructed with a compact form factor measuring 85mm in height, 74mm in width, and 85mm in depth, this breaker fits well in confined electrical distribution boards. The toggle switch actuator allows for easy manual reset and control, while the thermal magnetic tripping mechanism provides dependable protection from electrical overloads and short circuits.
This residual current circuit breaker complies with international standards such as REACH, EU RoHS, and RoHS, ensuring environmentally responsible manufacturing and usage. The impulse voltage resistance of 4 kV protects against transient voltage spikes, enhancing device durability. Screw-type terminals provide reliable electrical connections suited for various wiring requirements.
Its robust design and technical specifications make it suitable for electrical, automation, construction, and industrial applications where reliable leakage current detection and interruption are critical to safety and equipment protection.
Designed for AC type tripping characteristics to protect against earth leakage faults. Mounts easily on DIN rail systems for quick installation. Breaking capacity of 1500A ensures robust fault interruption. Compact dimensions of 85mm height, 74mm width, and 85mm depth.
Equipped with a toggle switch reset actuator for manual control. Features thermal magnetic tripping mechanism for enhanced safety. Impulse voltage rating of 4 kV for resilience against transient surges. Made in Spain, conforming to REACH and RoHS environmental standards.
Terminal connections use screw type for secure wiring. Explore more from Schneider Electric and shop Residual Current Circuit Breakers at EnvMart for industrial-grade protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 25A, making it suitable for various electrical applications requiring that capacity.
It features a breaking capacity of 1500A, ensuring robust fault interruption during electrical faults.
The dimensions are 85mm in height, 74mm in width, and 85mm in depth, allowing it to fit in confined electrical distribution boards.
It mounts easily on DIN rail systems, facilitating quick installation in electrical panels.
It is designed with Type AC tripping characteristics, specifically for protecting against earth leakage faults.
The impulse voltage rating is 4 kV, which provides resilience against transient voltage surges.
It is equipped with a toggle switch reset actuator, allowing for manual control and reset of the device.
This unit conforms to REACH and EU RoHS environmental standards, ensuring responsible manufacturing and usage.
The trip sensitivity is 300mA, which allows for effective detection of earth leakage currents.
It features screw-type terminals, which provide secure wiring connections for reliable electrical performance.
It employs a thermal magnetic tripping mechanism, enhancing safety by providing protection against electrical overloads and short circuits.
