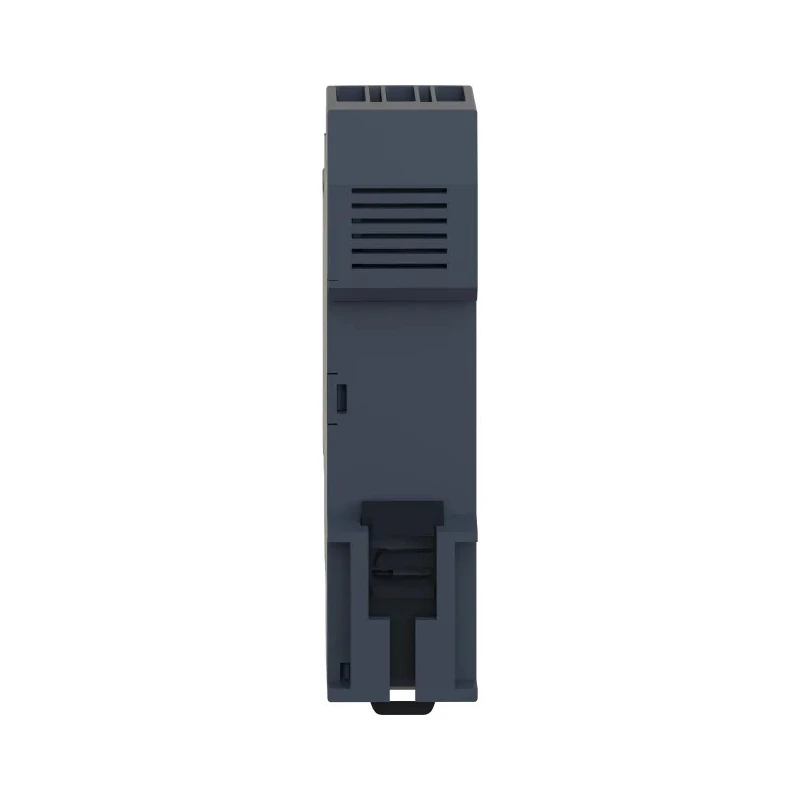

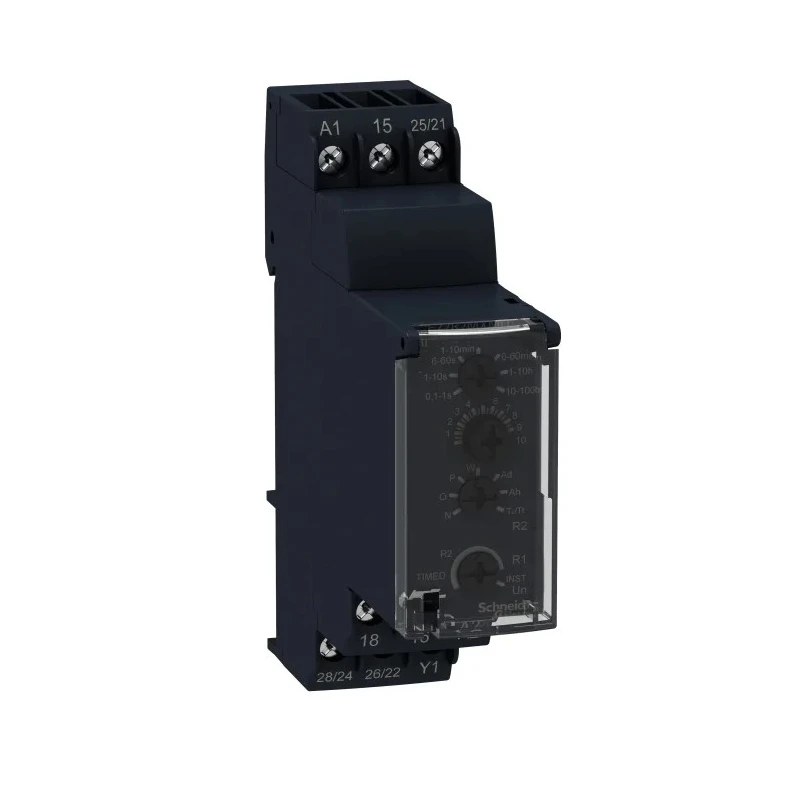

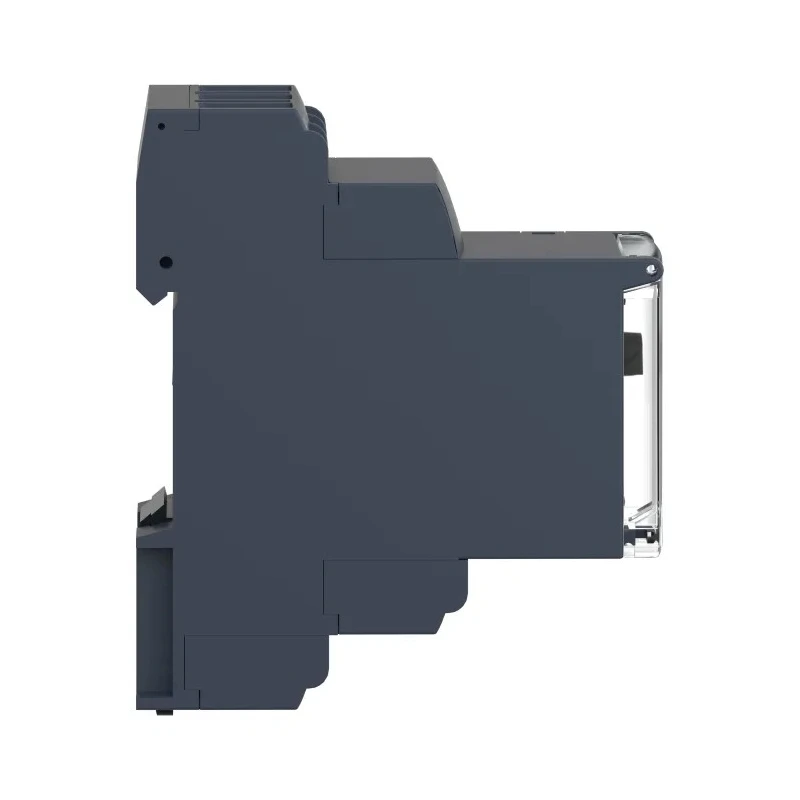

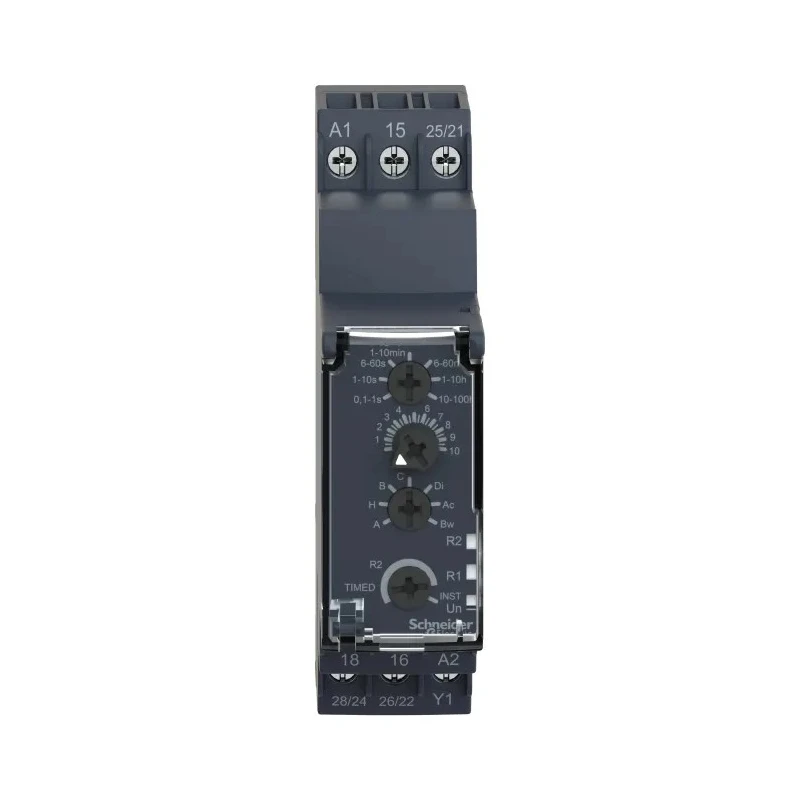

Schneider Electric Harmony Time Series DIN Rail Timer Relay, DPDT Contact Configuration, 12 to 240 V dc, 12 V ac RE22R2MMW
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 79.5mm |
| Length | 22.9mm |
| Model | RE22R2MMW |
| IP Rating | IP20, IP40 |
| Mode | Multifunction |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | Harmony Time |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s to 100 h |
| Terminal type | Screw |
| Number of Contacts | 4 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V |
| Contact Current | 8A |
| Supply DC Voltage | 12 to 240 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 12, 240V ac |
Key Features
- The device supports 4 contacts for diverse control operations.
- Multifunctional timer modes allow flexible timing customization.
- DIN Rail mounting enables easy and secure installation.
- Equipped with screw terminals for reliable wiring connections.
- Operates within temperature range -20°C to 60°C for versatile use.
- Contact current rating of 8A supports moderate load applications.
- Compact dimensions with 79.5mm height, 22.9mm length, and 90mm width.
- IP20 and IP40 ratings provide protection against solid objects and limited ingress.
Product Description
Schneider Electric RE22R2MMW Harmony Time Series DIN Rail Timer Relay is a multifunction timer relay featuring DPDT contact configuration. It supports a wide supply voltage range of 12 to 240 V DC and 12 V or 240 V AC, with timing intervals adjustable from 0.1 seconds up to 100 hours, suitable for diverse industrial timing requirements.
This timer relay is designed for DIN Rail mounting, ensuring convenient installation and stable fixing in control panels. The screw terminal type connections provide secure and maintenance-friendly wiring options.
With four contacts and multifunction timing modes, the relay allows simultaneous control of multiple timing functions, enhancing operational flexibility in automation, electrical machinery, and mechanical equipment control.
The relay operates effectively within a broad temperature range from -20°C to 60°C and carries an 8A contact current rating, making it suitable for a variety of controlled loads. Its IP20 and IP40 ratings offer protection against solid objects and limited ingress, ensuring durability in industrial environments.
The device features DPDT contact configuration for versatile switching. Multifunction timer offers several timing modes to suit application needs. DIN Rail mounting allows quick and space-efficient installation. Screw terminals provide secure and accessible wiring connections.
Wide supply voltage compatibility from 12 to 240 V AC/DC enhances flexibility. Timing range from 0.1 s to 100 hours covers short to long delays. Compact size with dimensions: 79.5mm (H) x 22.9mm (L) x 90mm (W). Suitable for automation systems, industrial controls, and process timing.
Certified to international standards including CE, CCC, and cULus ensuring compliance and safety.
Applications include control and synchronization of industrial automation processes, timing and sequencing in electrical machinery, precision timing in mechanical devices, and streamlining repetitive tasks in industrial and commercial environments.
This product is made in Indonesia and is part of the Schneider Electric Harmony Time series, known for reliability and performance in industrial electrical components. Explore the extensive range of Schneider Electric Timer Relays and related automation components available at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching operations.
It operates with a wide supply voltage range of 12 to 240 V DC and 12 or 240 V AC, providing flexibility for various applications.
The timing intervals are adjustable from 0.1 seconds up to 100 hours, accommodating both short and long delays.
The timer relay has compact dimensions of 79.5mm in height, 22.9mm in length, and 90mm in width.
It has a contact current rating of 8A, suitable for moderate load applications.
This model is designed for DIN Rail mounting, which allows for easy and secure installation in control panels.
It operates effectively within a temperature range of -20°C to 60°C, making it suitable for various environments.
The timer relay is equipped with screw terminals, providing secure and maintenance-friendly wiring connections.
It has IP20 and IP40 ratings, offering protection against solid objects and limited ingress, suitable for industrial environments.
This model supports four contacts, allowing for diverse control operations and enhanced operational flexibility.
It is suitable for applications including control and synchronization of industrial automation processes, timing in electrical machinery, and precision timing in mechanical devices.
It is certified to international standards including CE, CCC, and cULus, ensuring compliance and safety in various applications.
