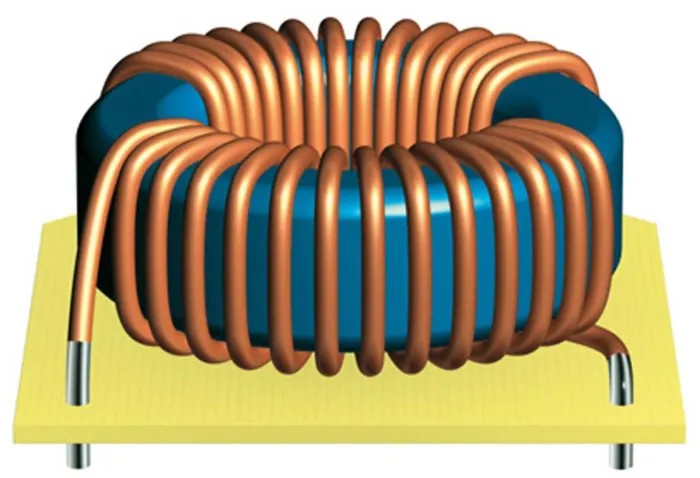

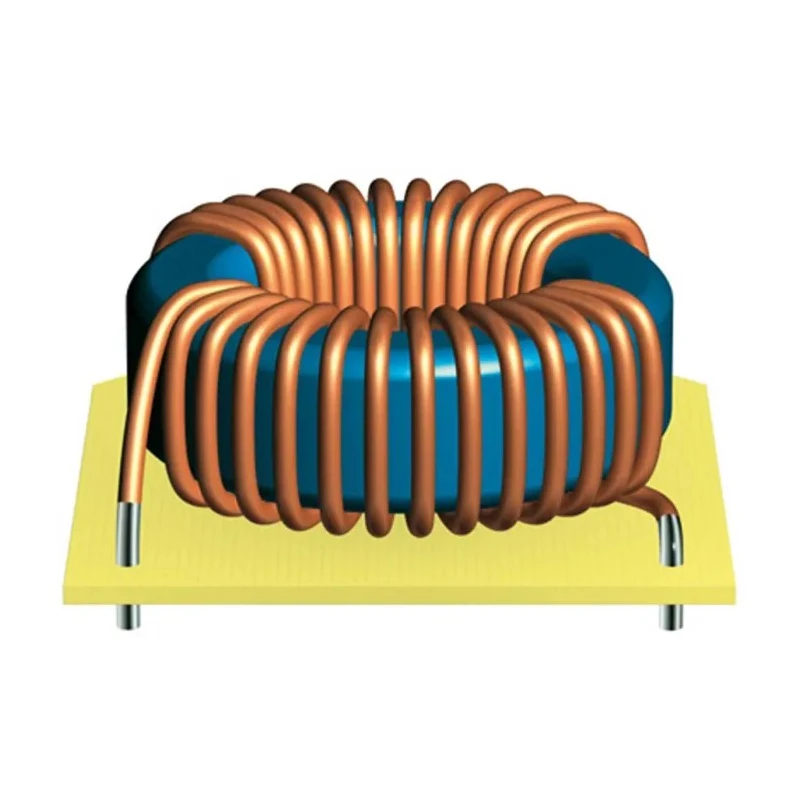

TDK 1.3 mH Ferrite Power Line Choke 18 A DC, 5 mΩ Resistance, Max SRF 10 kHz, 250V AC Radial Mount B82726S2183N020

TDK B82726S2183N020 is a 1.3 mH ferrite power line choke designed to provide effective suppression of electromagnetic interference in electronic circuits. Featuring a ferrite core and a robust radial mounting configuration, this choke is optimized for power line filtering applications up to a maximum current of 18 A DC. The device's maximum DC resistance of 5 mΩ and a self-resonant frequency capped at 10 kHz contribute to its excellent performance in reducing common-mode noise.

This power line choke has a compact toroidal design with a diameter of 51 mm and height of 22 mm, enabling integration into tightly packed circuit layouts. Its lead diameter of 1.8 mm and a pitch of 41 mm are suited for printed circuit board mounting using PC pin termination style. The product withstands operating temperatures from -40°C to 125°C, making it reliable in industrial, manufacturing, and electronic equipment environments.

Key industrial applications include electromagnetic interference suppression in switch-mode power supplies, power line filters, and other noise-sensitive electronic devices. The choke is constructed with a polycarbonate base plate and spacer rated to UL 94 V-0 standards to facilitate wave soldering processes.

Compliance with internationally recognized certifications such as VDE, UL, RoHS, IEC, and EN affirms the choke's adherence to stringent safety and environmental standards. The B82726S series denotes a quality line of current-compensated ferrite core inductors ideal for electrical and electronic engineering uses.

Ferrite core material guarantees efficient magnetic properties for noise suppression. Radial mount style supports reliable PCB assembly and mechanical stability. High maximum DC current rating of 18 A suits demanding power environments.

Low DC resistance (5 mΩ) reduces heat generation and power loss during operation. Wide temperature tolerance ensures durability in extreme conditions. Compact dimension supports integration in limited-space applications.

Wave soldering compatibility enhances manufacturing throughput and reliability. Meets global standards to assure safety, quality, and environmental compliance. Designed for suppression of common-mode and differential-mode interference.

Ideal for use in industrial, laboratory, and electronic power filtering applications. Discover more electronic components and inductors in the Electronics Components category in EnvMart for industrial and commercial needs.
