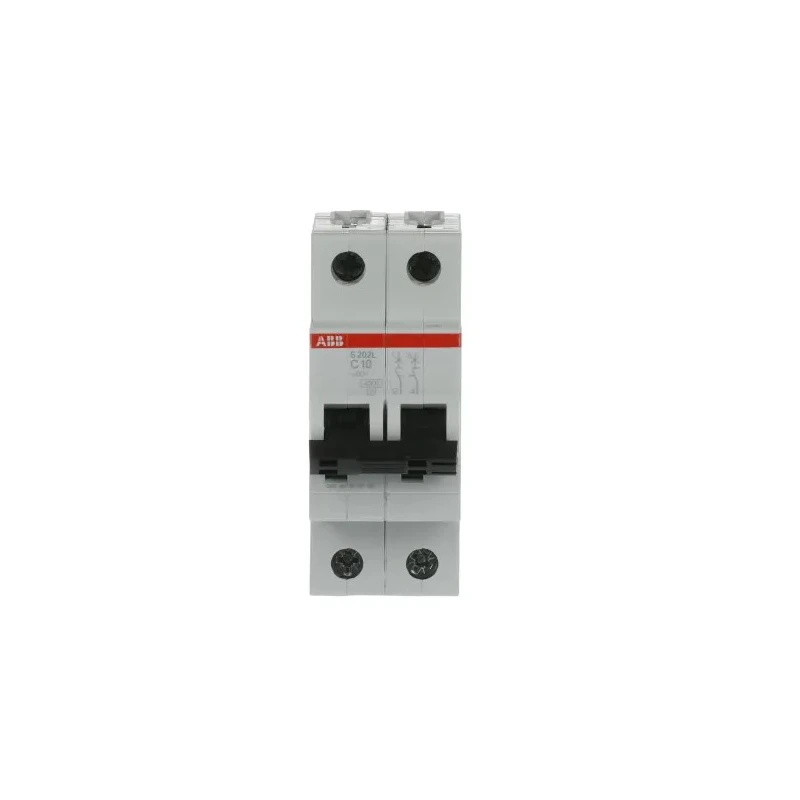

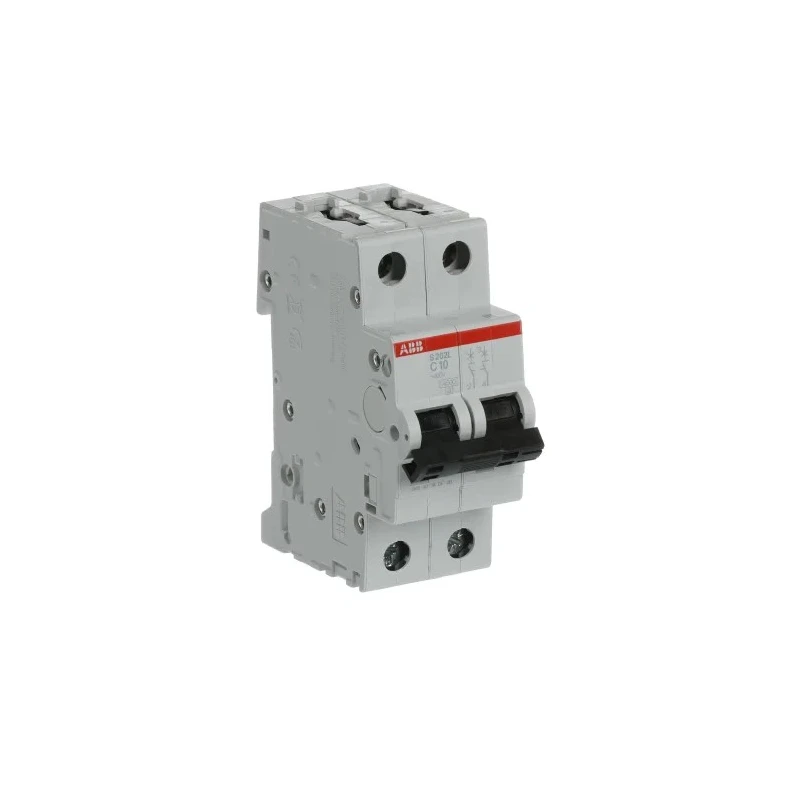

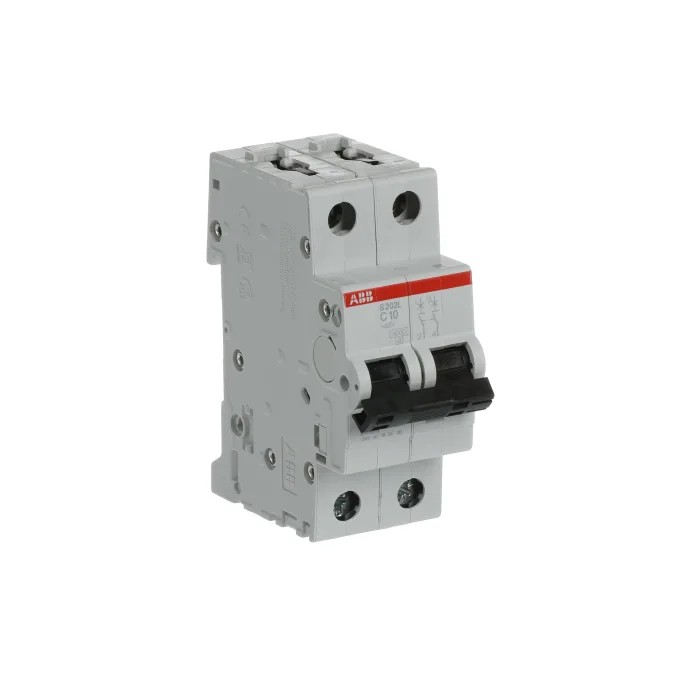

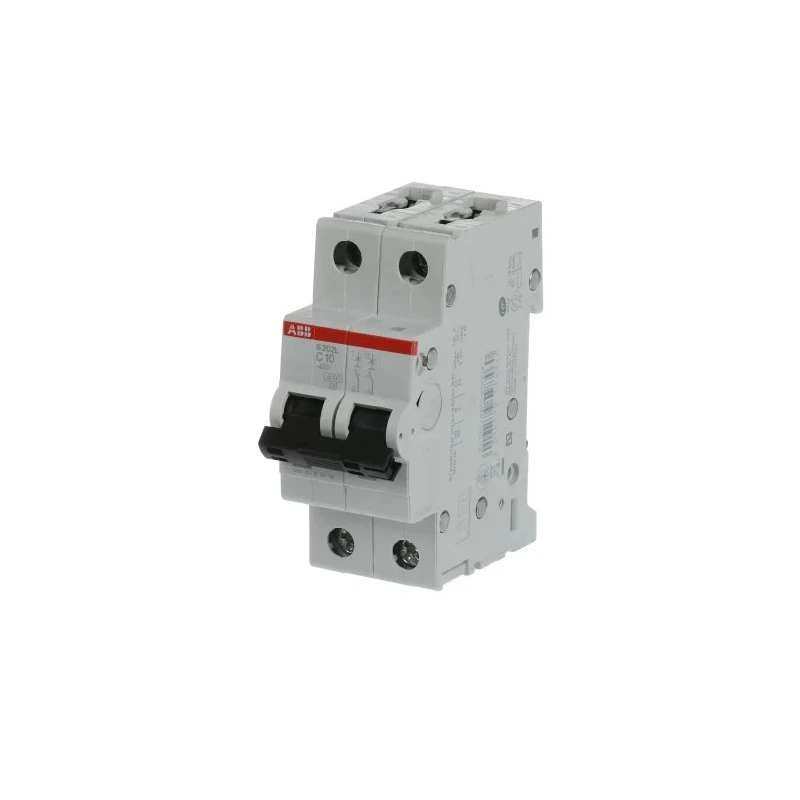

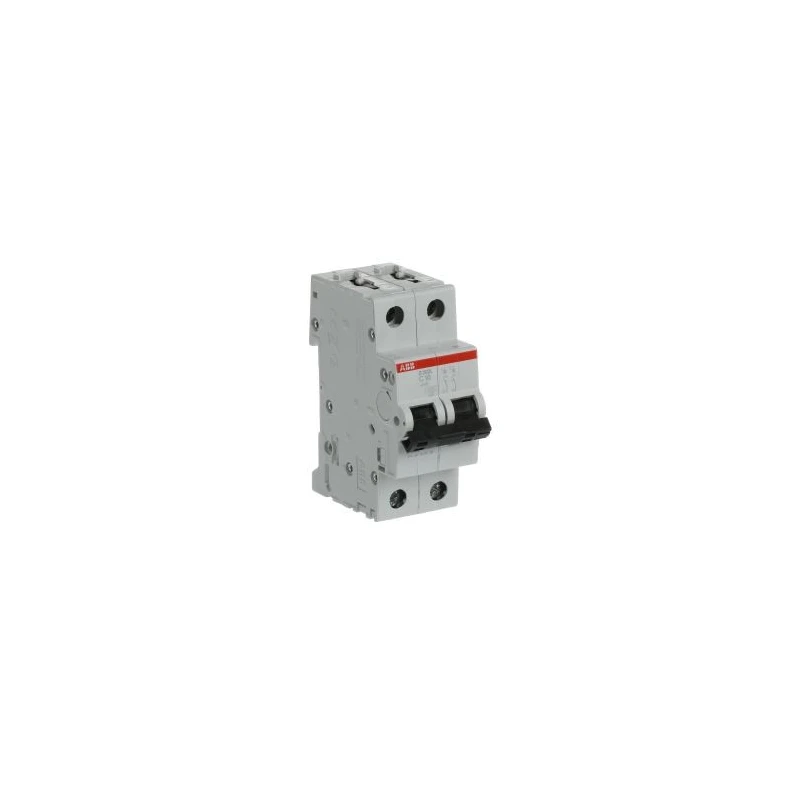

ABB System Pro M Compact Miniature Circuit Breaker 2-Pole 10A Type C 400V AC 6 kA Breaking Capacity 2CDS242701R0104

ABB 2CDS242701R0104 System Pro M Compact Miniature Circuit Breaker is engineered for safeguarding electrical circuits with high precision and reliable operation. Featuring a 2-pole configuration and a current rating of 10A, it provides essential protection in both residential and industrial environments.

This MCB operates at a rated voltage of 400V AC and offers a breaking capacity of 6 kA, effectively interrupting fault currents and reducing risks of equipment damage or electrical fires. Its Type C tripping characteristic is designed to handle moderate inrush currents typical of motors and transformers, preventing nuisance trips during start-up.

Designed for DIN rail mounting, this circuit breaker offers secure installation with screw terminals and is equipped with a toggle switch for straightforward manual reset and control. Compact in size with dimensions of 35mm width, 88mm height, and 88mm depth, it integrates seamlessly into distribution boards and control panels.

Compliant with IEC/EN 60898-1 standards, the device adheres to stringent electrical safety requirements. Its IP20 and IP40 ratings deliver protection against solid objects and limited ingress, suitable for typical installation environments.

The product is suitable for diverse applications including residential electrical protection, commercial installations, machine control panels, and industrial automation systems. It is built to operate efficiently within ambient temperatures ranging from -25 to +55°C, ensuring performance reliability in various environmental conditions.

Designed for DIN rail mounting with screw terminals for secure connections. Operates at 400V AC rated voltage for stable electrical performance. Type C tripping characteristic handles moderate inrush currents without nuisance tripping.

Compact dimensions: 35mm width, 88mm height, and 88mm depth. Includes toggle switch reset actuator for simple operation. Complies with IEC/EN 60898-1 standards for circuit breakers. IP20 and IP40 rated for environmental protection.

Suitable for residential, commercial, and industrial electrical circuit protection. Effective breaking capacity of 6 kA ensures robust protection against electrical faults. Supports ambient temperature range from -25 to +55°C for versatile use.

This ABB System Pro M Compact Miniature Circuit Breaker provides reliable and compact electrical protection solutions. Explore more high-quality circuit breakers and electrical components in the Electronics & Electricals category at EnvMart.
