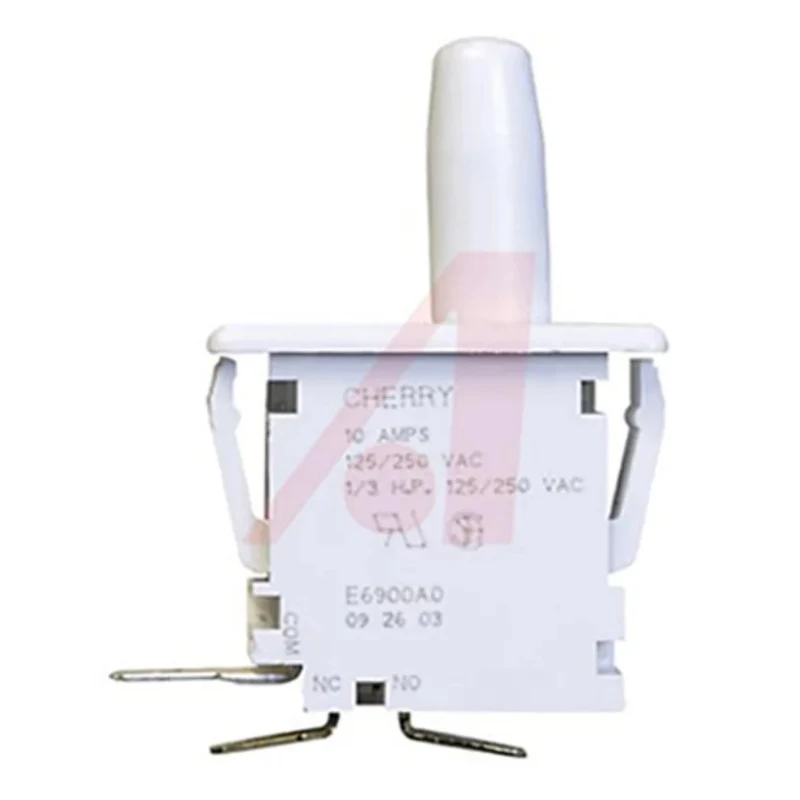

ZF Door Micro Switch Plunger SPDT 10A Thermoplastic Polyester 85°C -40°C 0E69-00A0

Free Delivery in India | Lowest Global Shipping Charges

ZF Door Micro Switch Plunger SPDT 10A Thermoplastic Polyester 85°C -40°C 0E69-00A0



Category Door Micro Switch Brand ZF Condition New

Specifications

Country of Origin	India
Brand	ZF
Length	17.27mm
Model	0E69-00A0
Depth	46.87mm
Width	39.88mm
Housing Material	Thermoplastic Polyester
Series	E65-E69
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Actuator Type	Plunger
Minimum Operating Temperature	-40°C
Terminal type	Quick Connect
Standards/Approvals	RoHS, VDE, UL
Operating Force	4.25N
Mechanical Life	6000Cycles
Contact AC Voltage	250V ac
Contact Current	10A

Key Features

The device operates efficiently within a temperature range of -40°C to 85°C.
Equipped with a plunger actuator and quick connect terminals sized 0.250" for easy installation.
Designed for a long mechanical life of 6000 cycles ensuring durability.
Operates at a mechanical force of 4.25 N, providing precise switching action.
Compact dimensions include length 17.27 mm, width 39.88 mm, and depth 46.87 mm.
Supports contact AC voltage up to 250 V AC, complying with RoHS, VDE, and UL standards.

Product Description

ZF 0E69-00A0 door micro switch plunger is a high-performance electrical switch designed for industrial and commercial applications. This SPDT (Single Pole Double Throw) micro switch is housed in durable thermoplastic polyester, capable of withstanding temperatures from -40°C to 85°C, making it suitable for harsh environments and demanding conditions.

The switch features a plunger actuator type that provides reliable mechanical action and quick connect terminals measuring 0.250 inches for fast and secure wiring connections. With a robust mechanical life rated at 6000 cycles and an operating force of 4.25 N, it ensures consistent operation over its lifespan.

Designed to handle a contact current of 10A and a contact AC voltage up to 250 V AC, this device meets rigorous safety and quality certifications including RoHS, VDE, and UL compliance. Its compact size with dimensions of 17.27 mm length, 39.88 mm width, and 46.87 mm depth allows it to fit various assembly applications.

This switch is part of the ZF E65-E69 series, which is known for its long-life coil spring mechanism optimized for high temperature use. Industrial sectors such as electrical automation, HVAC systems, and manufacturing equipment frequently utilize these switches for door interlock and safety control purposes.

The device operates efficiently within a temperature range of -40°C to 85°C. Equipped with a plunger actuator and quick connect terminals sized 0.250" for easy installation. Designed for a long mechanical life of 6000 cycles ensuring durability.

Operates at a mechanical force of 4.25 N, providing precise switching action. Compact dimensions include length 17.27 mm, width 39.88 mm, and depth 46.87 mm. Supports contact AC voltage up to 250 V AC, complying with RoHS, VDE, and UL standards.

This product is ideal for use in electrical controls, machinery safety devices, and other industrial applications requiring reliable and robust door micro switch solutions. Explore more from ZF and similar Door Micro Switches on EnvMart for your industrial automation needs.
