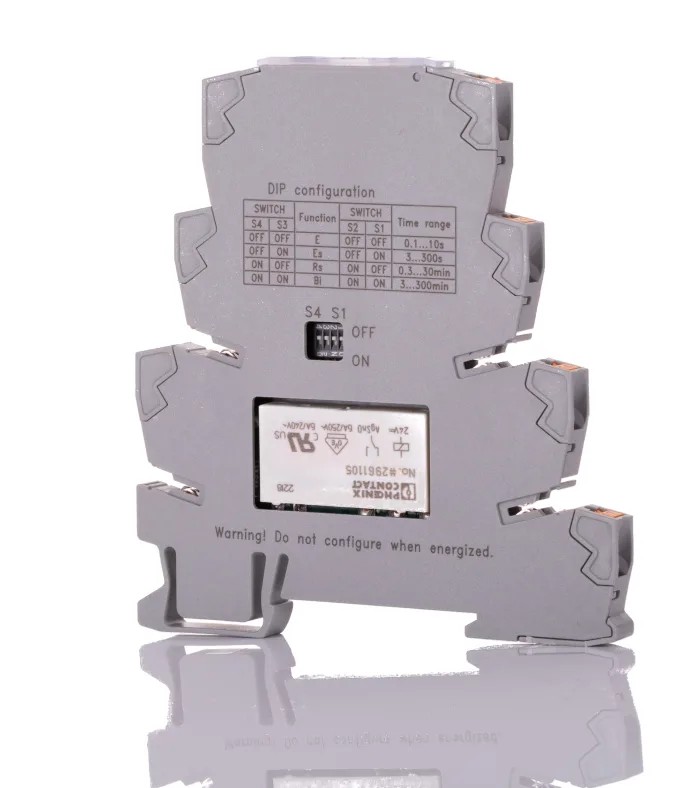

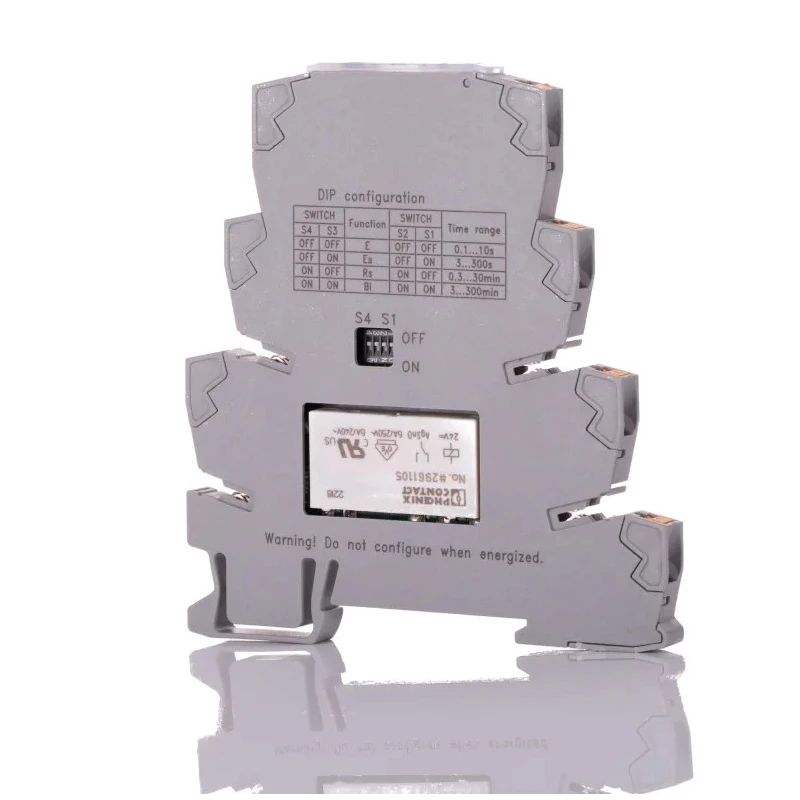

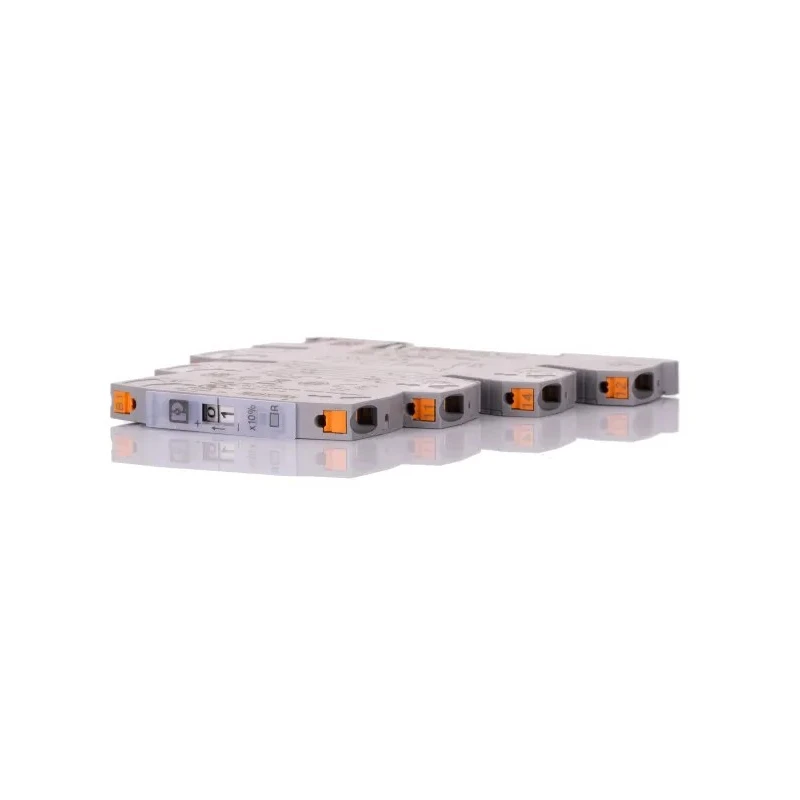

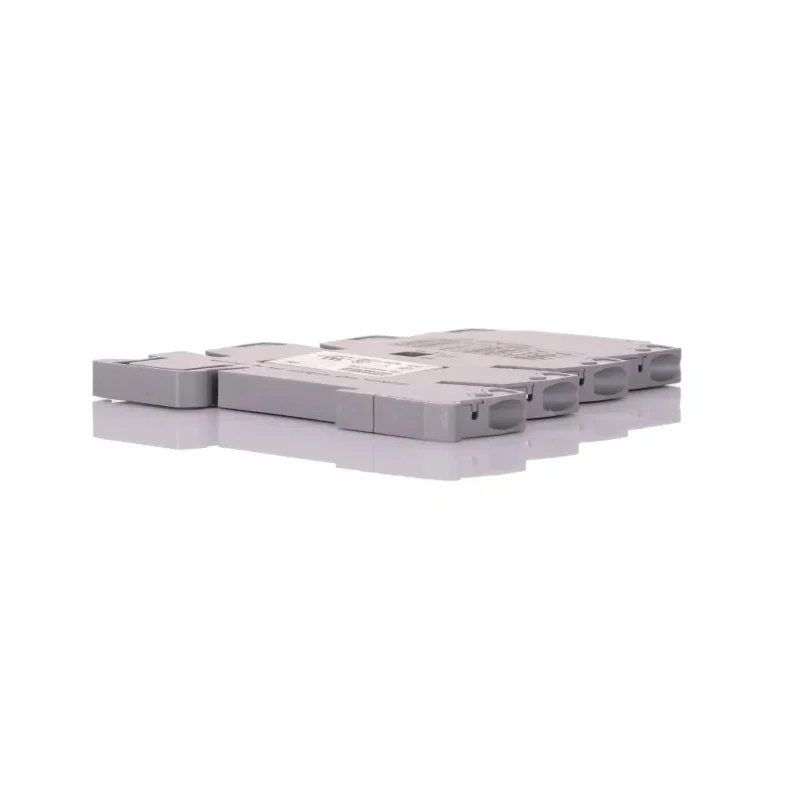

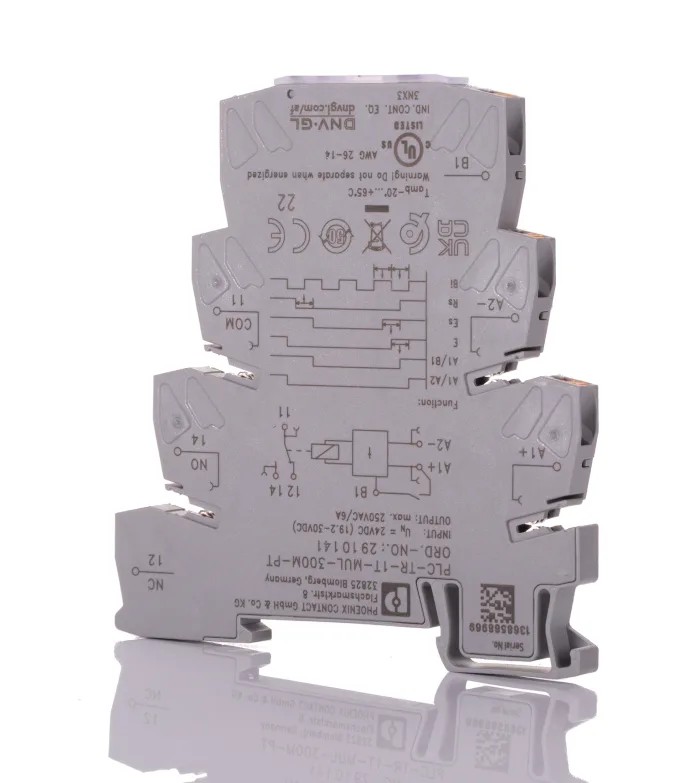

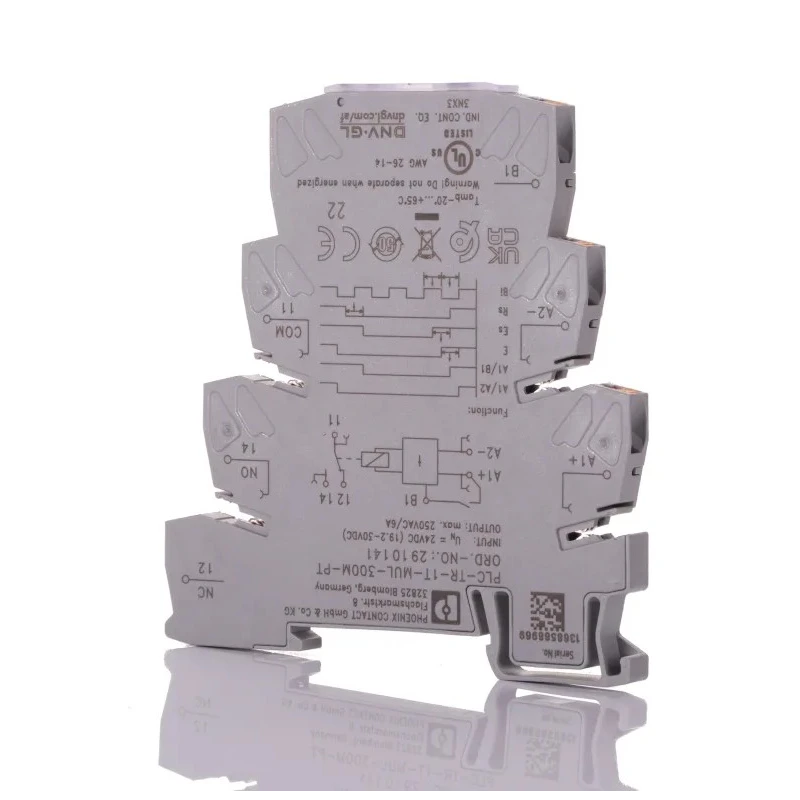

Phoenix Contact Timer Relay 1-Contact Multifunction 19.2 to 30 V DC 0.1 s to 300 min PLC-TR-1T-MUL-300M-PT 2910141

Phoenix Contact 2910141 PLC-TR-1T-MUL-300M-PT Series Timer Relay offers multifunction timing control for electrical circuits with a single-contact output and an adjustable time range from 0.1 seconds to 300 minutes operating at 19.2 to 30 V DC. Designed for DIN rail mounting with push-in terminal technology, it facilitates quick installation without additional tools.

Its compact polyamide housing provides reliable electrical insulation and robust protection, rated IP20 and IP40, suitable for industrial environments requiring safety against accidental touch and dust ingress. The device consumes a nominal power of just 0.45W, making it energy efficient for continuous operation.

This timer relay supports multiple operating modes including switch-on delay and release delay with control contact functions, reducing the need for multiple relays in complex control systems. The single-pole double throw (SPDT) contact configuration supports various automation and signaling applications.

The relay is rated for a maximum contact current of 6A and includes an integrated 6.3A fast-blow fuse for enhanced short-circuit protection. It withstands operating temperatures from -20°C up to 65°C, ensuring reliable performance across a wide range of industrial conditions. Mechanical durability is guaranteed with a service life of 2 × 10^7 switching cycles.

LED indicators in green and yellow provide visual feedback on the operational status of the relay, allowing for quick diagnostics without additional instrumentation. The device’s dimensions are compact, with a height of 80mm, width of 86mm, and a length of 6.2mm, suitable for standard control cabinets.

This timer relay is ideal for use in industrial automation, lighting control systems, HVAC equipment, manufacturing process controls, and other electrical timing applications requiring precise and versatile timing functions.

Allows flexible timing adjustment from 0.1 seconds to 300 minutes. Compact DIN rail mounting simplifies integration into panel systems. Robust polyamide casing offers safety and insulation. Push-in connections enable fast and secure wiring.

Multifunction timer reduces the need for multiple devices. Suitable for industrial environments with reliable IP ratings. Energy-efficient low power consumption. Built-in LED status indicators facilitate real-time monitoring.
