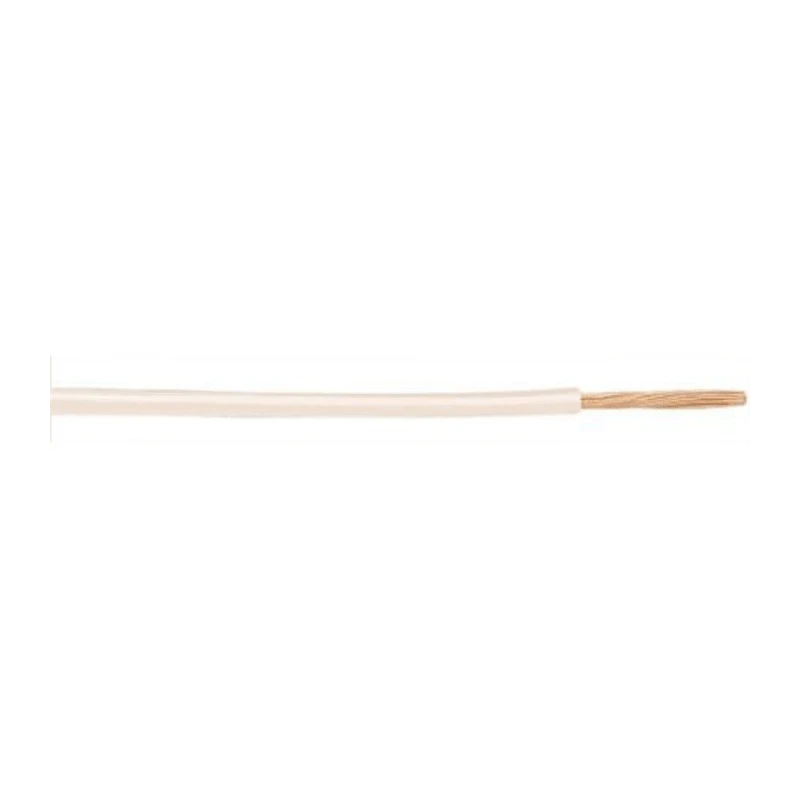

Alpha Wire Hook Up Wire Silicone Series White 5.2 mm², 10 AWG, 105x0.25 mm Strands, 30 m Length, 150°C, 40000V 391097 WH005

Alpha Wire 391097 WH005 Hook Up Wire Silicone Series is a high-quality electrical wire with a cross sectional area of 5.2 mm² and a length of 30 meters designed for demanding high-voltage and high-temperature environments. This wire features a 10 AWG size with 105 finely stranded copper strands, each strand measuring 0.25 mm, providing superior flexibility and reliable current-carrying capacity. The silicone rubber jacket offers excellent heat resistance, rated for continuous operation up to 150°C, and supports low-temperature operation down to -40°C, making it suitable for a wide range of industrial, laboratory, and electrical applications.

This hook up wire supports a rated voltage of 40000V dc, ensuring high-voltage insulation integrity. The silicone jacket conforms to VW-1 flame retardant standards enhancing safety against fire hazards. Its high strand count conductor construction ensures mechanical flexibility and minimizes strain during installation and repeated bending.

Key applications include high-voltage test leads in electrical laboratories, temperature-critical wiring within industrial ovens, flexible interconnect wiring in automation control equipment, and high-voltage harnesses in power supply assemblies. The wire is also well-suited for electrode and probe systems where softness and flexibility of the conductor are essential.

Mechanical details include 105 strands of copper conductor each 0.25 mm in diameter, and an overall cable diameter of 0.312 inches. The wire is identified by printed markings of UL AWM Style 3239 and voltage/temperature ratings, aiding traceability and installation verification. Typical commercial supply is provided on reels of lengths such as 100 feet, 500 feet, and 1000 feet with custom bulk spooling available on request.

Designed for continuous high-heat applications up to 150°C. Operates reliably in temperatures as low as -40°C. Rated voltage of 40000V dc for high-voltage insulation. Flame retardant silicone rubber jacket with VW-1 classification.

Complies with UL Listed standard UL AWM 3239. Highly flexible conductor with 105 strands of 0.25 mm copper wires. Applications include laboratory test leads, industrial ovens, and automation equipment wiring.

This product is made in India and designed to meet demanding industry standards, making it a reliable choice for electrical, industrial, HVAC, and manufacturing use cases. Explore the full range of Hook Up Wire and cables in EnvMart for complementary products.
