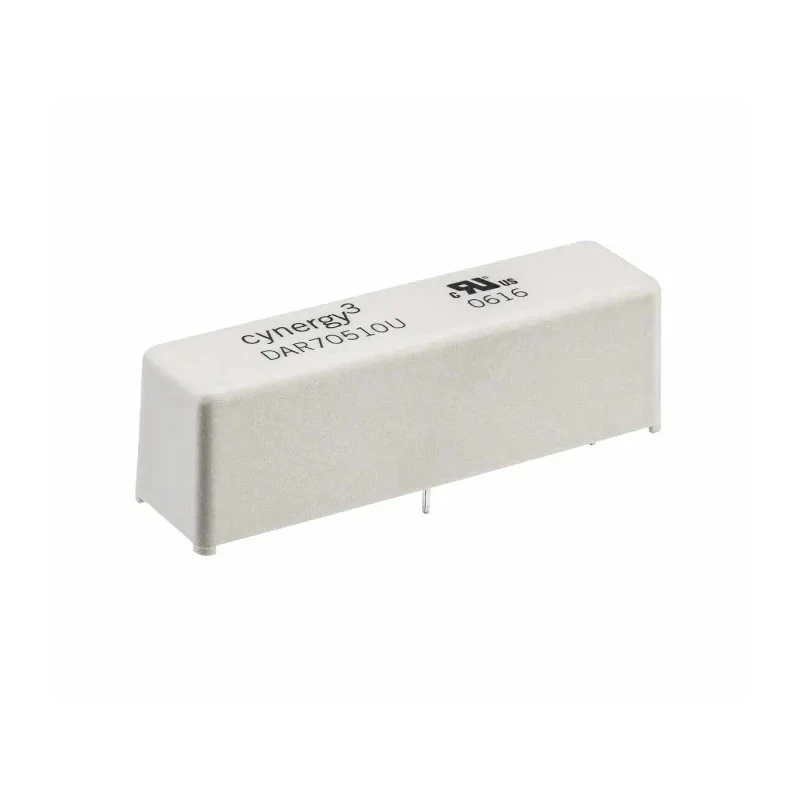

Cynergy3 PCB Reed Relay, 24V DC Coil, SPST Contact Configuration, 7000V DC Max Isolation, 2A Max Current, 780 Ω Coil

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 PCB Reed Relay, 24V DC Coil, SPST Contact Configuration, 7000V DC Max Isolation, 2A Max Current, 780 Ω Coil

Name: Cynergy3 PCB Reed Relay, 24V DC Coil, SPST Contact Configuration, 7000V DC Max Isolation, 2A Max Current, 780 Ω Coil
Brand: Cynergy3
SKU: 261614
Price: 1083.2 USD
Availability: InStock



Category Reed Relay Brand Cynergy3 Condition New

Specifications

Country of Origin	India
Brand	Cynergy3
Height	18.5mm
Length	60mm
Model	Cynergy3
Operating Time	3ms
Mount Type	PCB
Series	DA(UL)
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Terminal type	PCB Terminal
Contact Resistance	250mΩ
Standards/Approvals	UL
Coil Resistance	780Ω
Coil Power	50W
Switching Power	50W
Isolation Coil To Contact	17kV

Key Features

Features a coil resistance of 780 Ω ensuring stable operation.
Supports a maximum switching power and coil power of 50W each.
Designed with a fast operating time of 3 milliseconds.
Operates reliably within a temperature range of -20°C to 70°C.
Compact PCB mount type with dimensions of 60mm length and 18.5mm height.
Offers a contact resistance as low as 250 milliohms for efficient switching.
Built with UL standards compliance ensuring safety and quality.
Non-latching design ideal for precise control mechanisms.

Product Description

Cynergy3 DAT72405U is a high-performance PCB Reed Relay featuring a 24V DC coil and SPST contact configuration. It is engineered for electronic, electrical, and automation applications requiring reliable and precise switching with high isolation voltage capability up to 7000V DC. The relay is suitable for use in high reliability environments such as test equipment, medical devices including cardiac defibrillators, and high voltage power supplies.

The relay coil resistance measures 780 Ω and supports a coil power rating of 50W, matching a switching power of 50W. The quick operating time of 3ms ensures responsive performance in control circuits. Designed for PCB mounting, the relay measures 60mm in length and 18.5mm in height, making it ideal for compact electronic assemblies.

This relay complies with UL standards and offers an isolation voltage between coil and contact of 17kV, assuring safety and signal integrity. The contact resistance is a low 250mΩ, promoting effective signal transmission and longevity of switching operations. The non-latching mechanism supports applications requiring momentary switching.

Features a coil resistance of 780 Ω ensuring consistent electrical characteristics. Designed for operation between -20°C and 70°C for versatile environmental tolerance. Offers PCB terminal mounting for straightforward installation on electronic boards.

High isolation coil-to-contact rating of 17kV protects sensitive circuits. Complies with UL certification for safety and quality assurance. Compact size facilitates integration into diverse control systems. Fast 3ms operating time supports efficient circuit switching.

Non-latching SPST contact type for simple control applications.

This relay finds extensive industrial use in automation, electrical panels, medical devices, test instrumentation, and telecommunication equipment, offering reliable switching performance with excellent AC characteristics. It is a preferred component for applications requiring low contact resistance and high isolation, contributing to device stability and operational safety.
