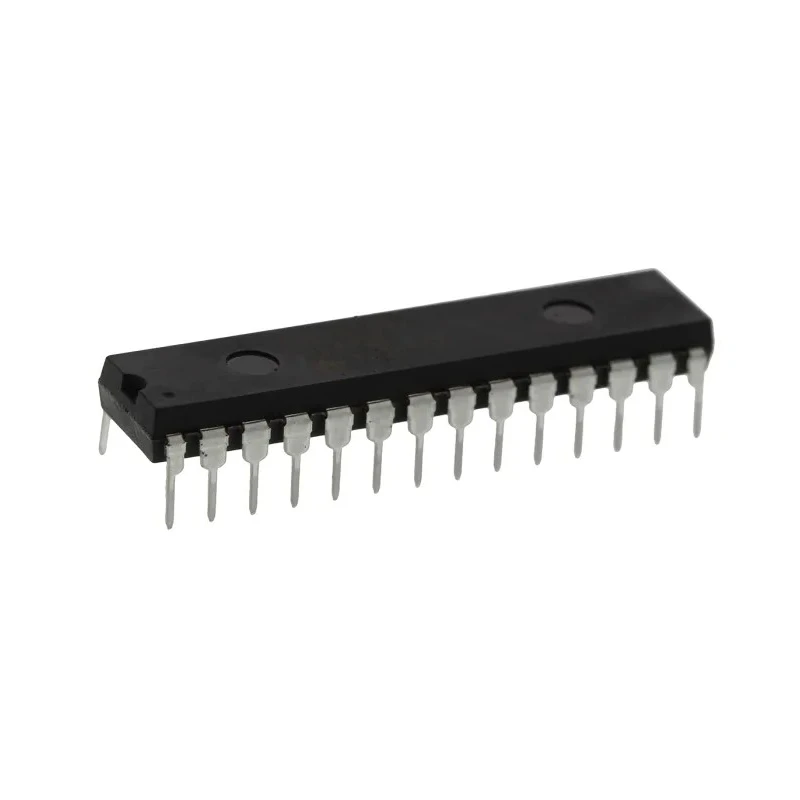

Microchip 8-bit PIC16F Microcontroller 20 MHz 14kB FLASH 28-Pin SPDIP PIC16F886-I/SP

Microchip PIC16F886-I/SP is an 8-bit microcontroller from the PIC16F series designed for efficient embedded system applications. It operates at a maximum clock frequency of 20 MHz, featuring 14 kB of FLASH program memory and 368 bits of RAM for advanced computing tasks. The device is housed in a 28-pin SPDIP package, facilitating through-hole mounting on printed circuit boards.

This microcontroller supports a supply voltage range of 2V to 5.5V and is capable of dissipating up to 800mW of power, making it suitable for low to moderate power embedded designs. The compact form factor measures 35.56mm in length, 7.49mm in width, and 3.81mm in height, allowing integration into space-constrained industrial and commercial electronics.

The PIC16F886-I/SP incorporates 24 programmable input/output pins and includes advanced peripherals such as Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART), Master Synchronous Serial Port (MSSP) for SPI and I2C communications, two analog comparators, and multiple timers which enhance real-time control capabilities.

Additional features include 11 channels of 10-bit analog-to-digital converters (ADC), facilitating precise analog signal measurement and conversion. The microcontroller supports in-circuit serial programming (ICSP) and in-circuit debugging (ICD), enabling efficient development and troubleshooting.

With an operating temperature range between -40°C and 85°C, the PIC16F886-I/SP is well-suited for industrial, commercial, and automotive environments that demand robustness and reliability.

The microcontroller's Reduced Instruction Set Computing (RISC) architecture with a 35 instruction set and an 8-level hardware stack allows efficient processing at speeds up to 5 MIPS.

Operates with a voltage range from 2V to 5.5V providing flexible power supply options. Includes 368-bit RAM and 11 x 10-bit ADC channels for versatile data handling. Equipped with 24 programmable I/O pins suitable for diverse peripheral controls.

Offers advanced peripherals such as EUSART and MSSP interfaces supporting SPI and I2C communications. Embedded with two analog comparators and multiple timers enhancing control applications. Supports in-circuit serial programming (ICSP) and debugging capabilities.

Compact dimensions of 35.56mm length, 7.49mm width, and 3.81mm height enable space-efficient designs. Operating temperature range from -40°C to 85°C makes it suitable for industrial environments. Programmed with RISC architecture offering up to 5 MIPS and 35 instruction set supporting efficient processing.

Maximum power dissipation rated at 800mW ensuring reliable operation under load.

This microcontroller is ideal for embedded designs in industrial automation, consumer electronics, automotive control systems, and communication devices requiring precise control and efficient processing in compact packages.
