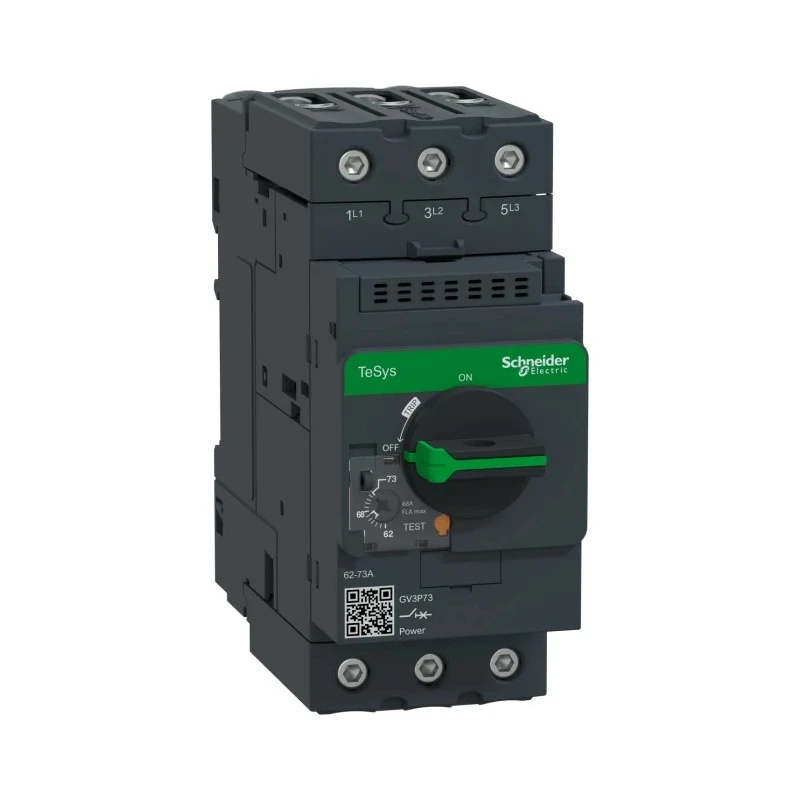

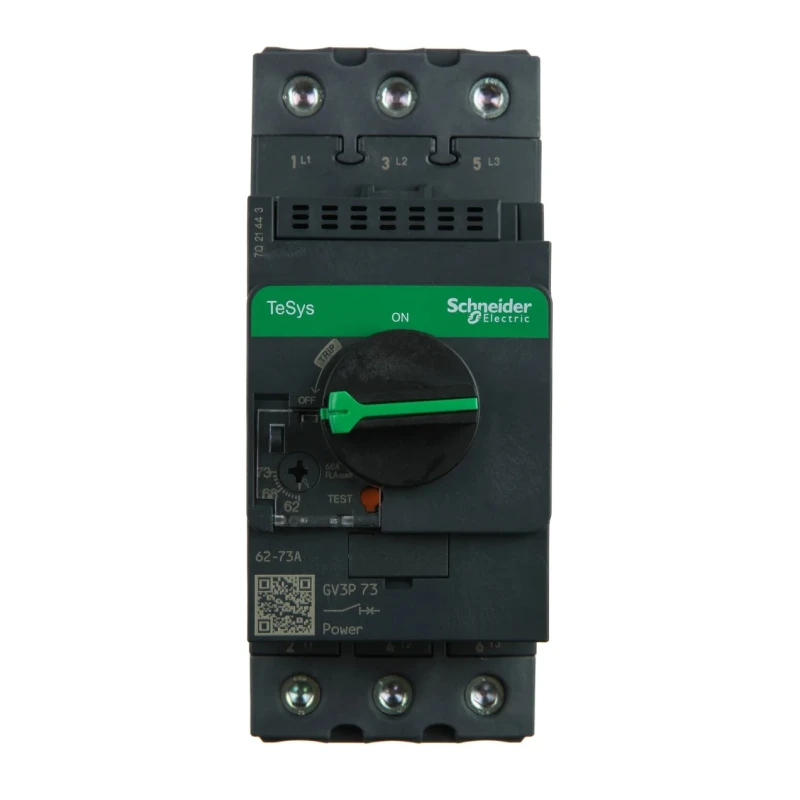

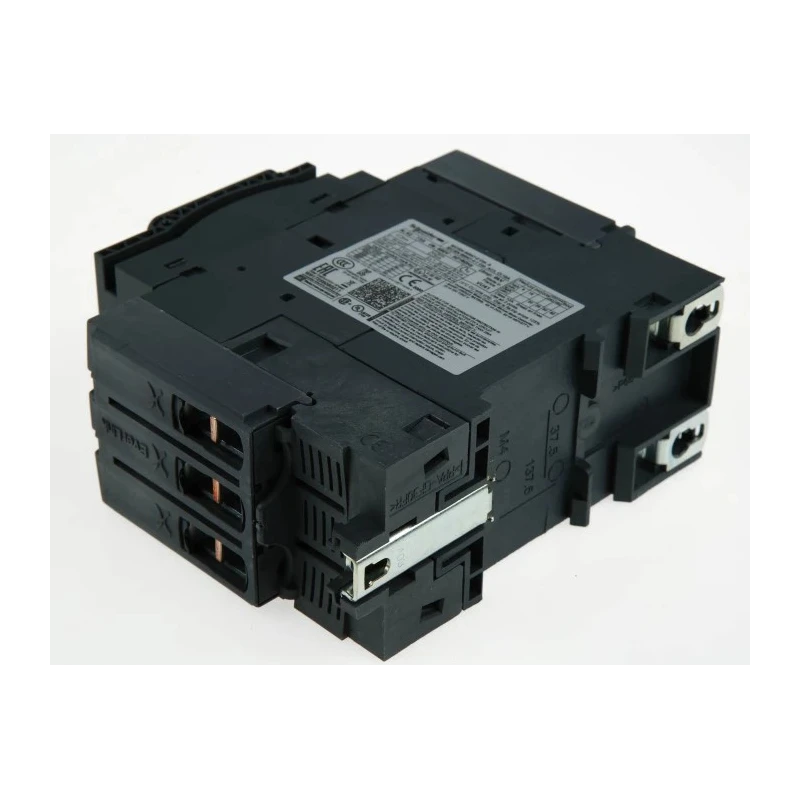

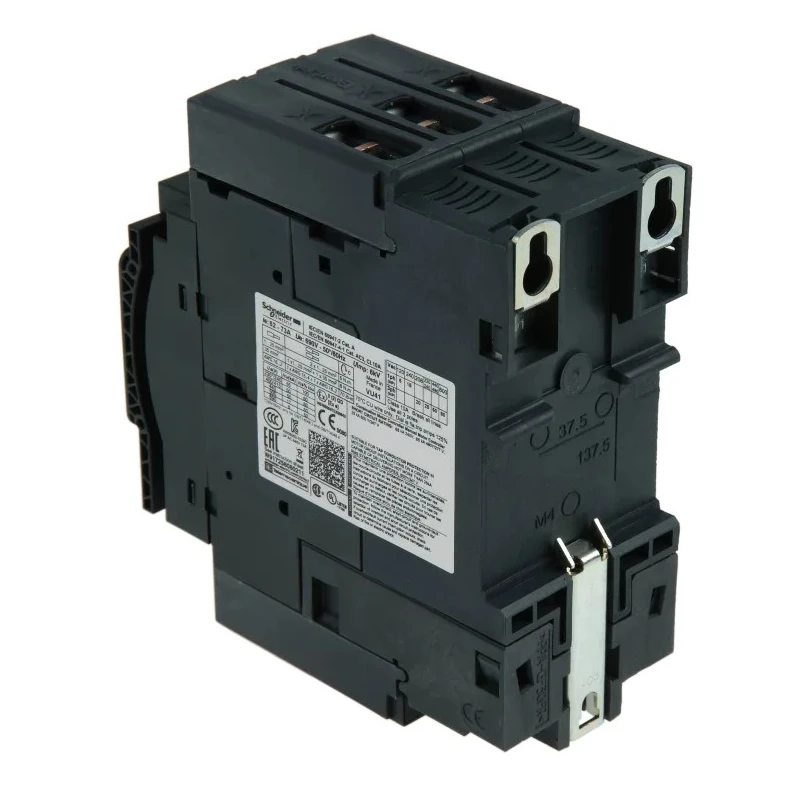

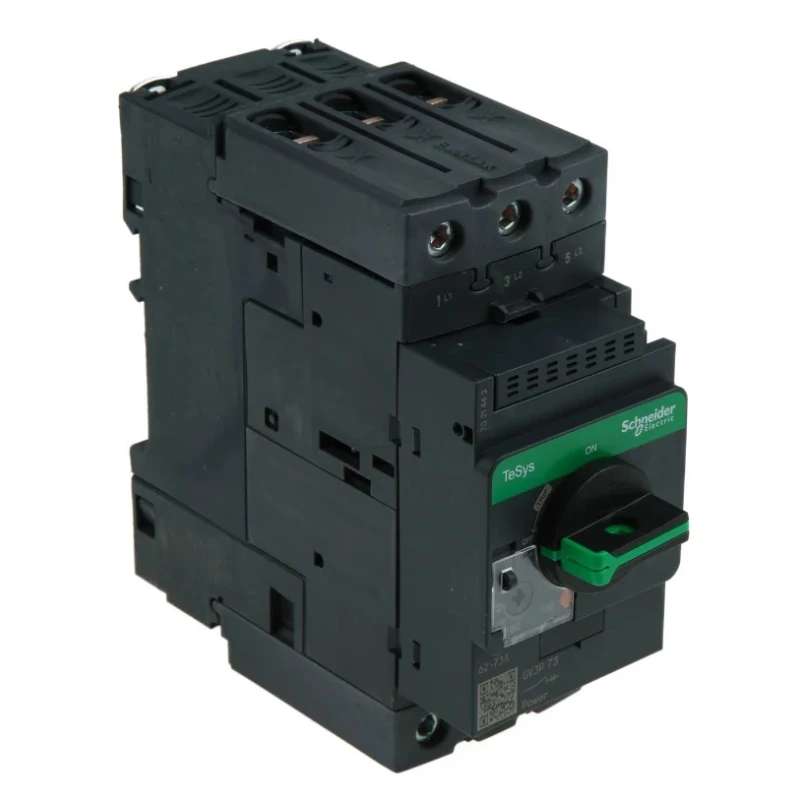

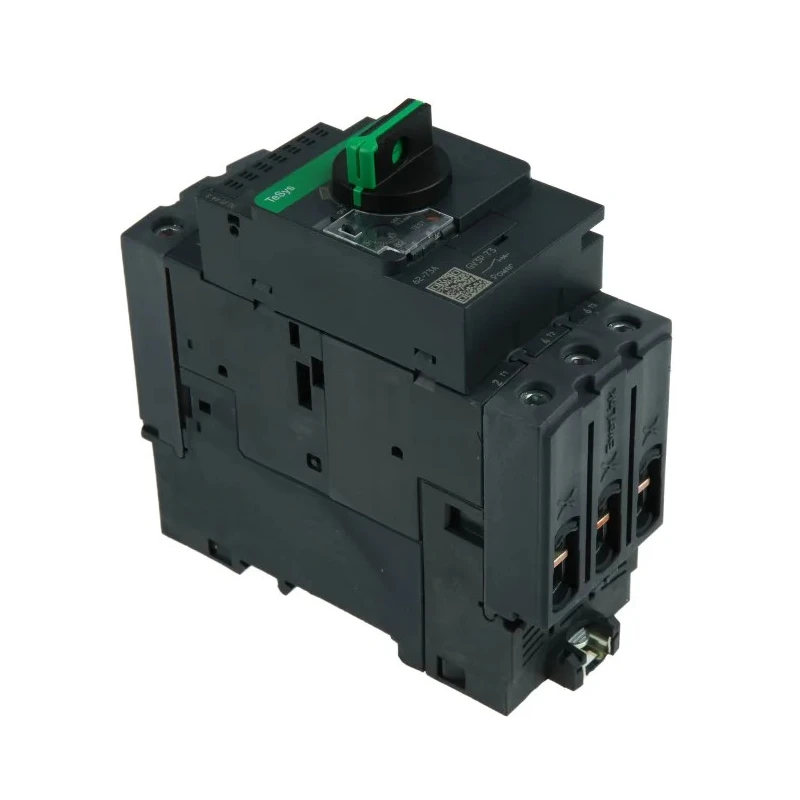

Schneider Electric TeSys GV3P Thermal Circuit Breaker 73A Current Rating 3-Pole DIN Rail Mount GV3P73

Schneider Electric GV3P73 Thermal Circuit Breaker is a robust 3-pole protection device rated at 73A, designed for industrial power distribution and motor protection. It features a thermal magnetic tripping mechanism, allowing effective response to overloads and short circuits with reliable interruption of current to prevent equipment damage. This breaker is mounted on standard DIN rails, with compact dimensions of 132mm height, 136mm width, and 132mm depth, making it suitable for dense installations.

The unit is designed with a screw terminal type for secure connection and a handle reset actuator for quick restoration after a trip. It features TC protective treatment providing enhanced protection against humidity, ensuring durability in harsh industrial environments. The breaker has an IP20 rating, guaranteeing operator safety during handling by preventing accidental contact with live parts.

Compliant with multiple international standards including BV, DNV GL, LROS, ABS, CCC, UKCA, UL, EAC, ATEX, and CSA certifications, this circuit breaker is suitable for numerous industrial, commercial, and building automation applications. Its high breaking capacity of 6kA enables it to safely interrupt high fault currents, providing reliable circuit protection.

The product boasts an electrical durability of 20,000 cycles at 415V AC and a mechanical durability of 50,000 cycles, reflecting a long operational lifespan suitable for demanding environments. Its shock and vibration resistance enables installation near moving machinery and in industrial settings with high mechanical stress.

Rated current of 73A provides efficient overload protection. Thermal magnetic tripping mechanism ensures quick response to faults. Compact DIN rail mounting with dimensions 132mm x 136mm x 132mm. Screw type terminals ensure secure electrical connections.

Resettable handle actuator for simple operator use. TC treatment protects internal components from moisture damage. IP20 rating guarantees safe operation with touch protection. High breaking capacity of 6kA for safe interruption of fault currents.

Compliance with multiple international standards ensures broad usage. Durability rated for 20,000 electrical and 50,000 mechanical cycles.

This Schneider Electric TeSys GV3P73 Thermal Circuit Breaker is ideal for power distribution, building automation, and motor protection in industrial, commercial, and manufacturing environments. Its reliable operation, robust construction, and safety features make it a trusted choice for electrical system protection.

Explore the full range of circuit breakers and electrical components at EnvMart to find compatible and complementary products tailored for your industrial needs.
