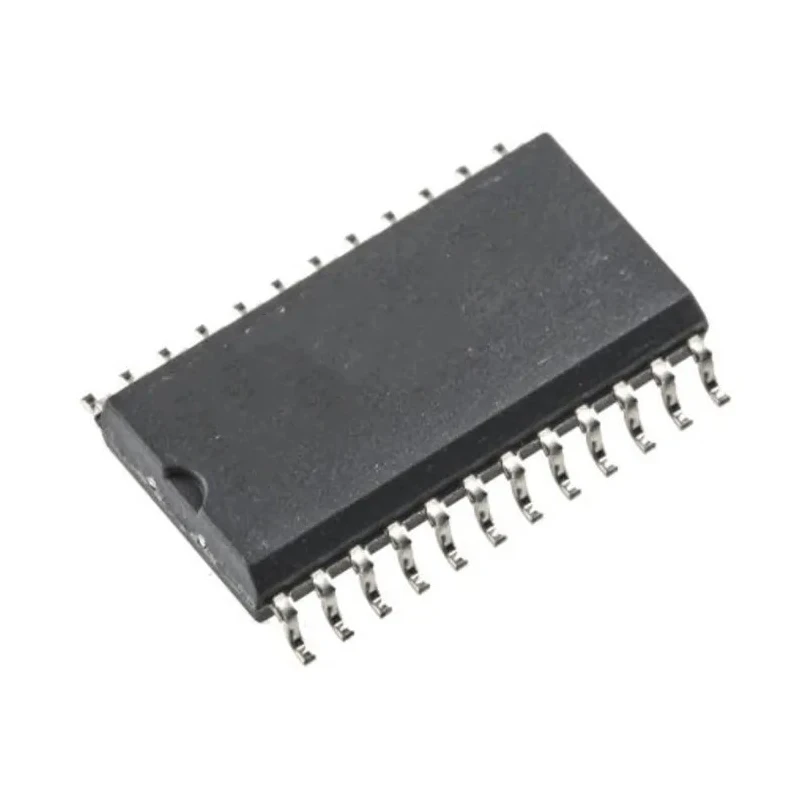

onsemi Multiplexer/Demultiplexer 1 CMOS Single 24-Pin SOIC MC14067BDWR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.36mm |
| Length | 15.54mm |
| Model | MC14067BDWR2G |
| Width | 7.6mm |
| Mount Type | Surface |
| Output type | CMOS |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 3V |
| Wide operating voltage range | 3 to 18 V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 1.3kΩ |
Key Features
- Operates with a wide voltage range from 3 V to 18 V.
- Features low ON resistance of approximately 1.3 kΩ for efficient switching.
- Single chip with 16-channel multiplexing capability controlled by 4 binary inputs.
- Operates within wide temperature range from -55°C to 125°C for robust industrial use.
- Provides low leakage current and low quiescent power consumption for energy efficiency.
- Pin-for-pin replacement compatible with CD4067 CMOS multiplexer.
- Surface mount SOIC package measuring 15.54 mm length by 7.6 mm width by 2.36 mm height.
- Certified RoHS compliant and conforms to automotive AEC-Q100 standard.
Product Description
onsemi MC14067BDWR2G Multiplexer/Demultiplexer is a digitally controlled analog switch featuring low ON resistance and very low leakage current. This device is suitable for both digital and analog multiplexing/demultiplexing applications, making it versatile for electronic circuit design.
With 1 CMOS single element and 16-channel multiplexing controlled via binary inputs A, B, C, and D, it allows precise channel selection by switching the appropriate analog path. The device operates from 3 V minimum to 18 V maximum supply voltage, supporting robust operating conditions.
The device package is a 24-pin SOIC surface mount with compact dimensions of 15.54 mm length, 7.6 mm width, and 2.36 mm height, allowing for efficient PCB space utilization. Its temperature tolerance ranges from -55°C to 125°C, compliant with automotive-grade AEC-Q100 standards, ensuring durability under harsh environments.
Wide operating voltage range from 3 V to 18 V. Low ON state resistance of 1.3 kΩ to minimize power loss. Low OFF leakage current enhancing signal integrity. Single-chip multiplexer/demultiplexer with 16 channels. RoHS compliant and automotive standard AEC-Q100 certified.
Compact SOIC surface mount package. Designed for industrial, automotive, and general electronic applications.
This multiplexer/demultiplexer is ideal for use in industrial automation, automotive systems, communication equipment, and other electronics where efficient analog or digital switching is required. Its robustness and compliance with international standards make it reliable for various demanding use cases.
Explore our extensive range of Multiplexer & Demultiplexer ICs from onsemi and other trusted brands at EnvMart to find the exact component for your application needs.
Explore more products in our Multiplexer/Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a wide voltage range from 3 V to 18 V.
The maximum on-state resistance is approximately 1.3 kΩ, which helps minimize power loss during operation.
This model operates within a temperature range from -55°C to 125°C, making it suitable for robust industrial applications.
It supports 16-channel multiplexing capability controlled by 4 binary inputs.
The device is packaged in a 24-pin SOIC surface mount configuration, measuring 15.54 mm in length, 7.6 mm in width, and 2.36 mm in height.
Yes, it is certified RoHS compliant, ensuring it meets environmental standards.
It conforms to the automotive AEC-Q100 standard, indicating its reliability for automotive applications.
The output type is CMOS, which is suitable for both digital and analog multiplexing applications.
The minimum supply voltage is 3 V, allowing for flexible integration into various circuits.
Low leakage current enhances signal integrity, making it more efficient for switching applications.
This multiplexer/demultiplexer contains a single element per chip, designed for efficient channel selection.
It is suitable for industrial automation, automotive systems, communication equipment, and general electronic applications.
