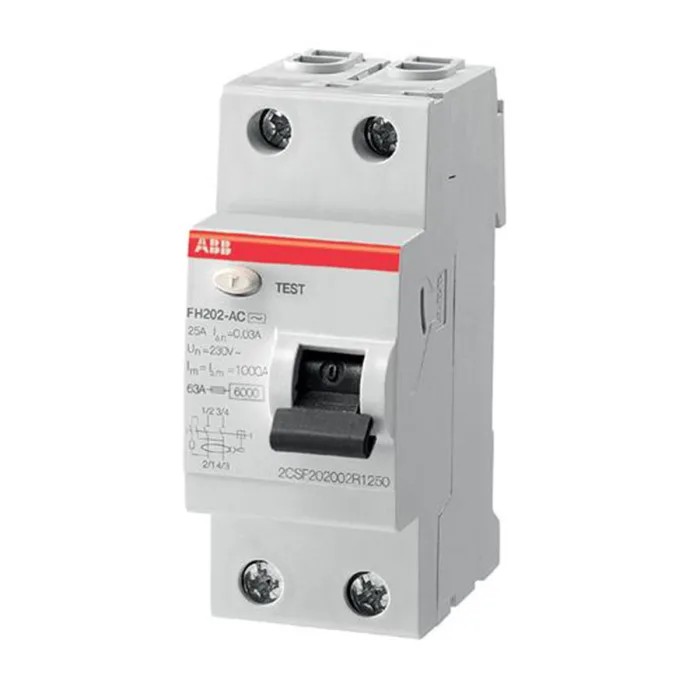

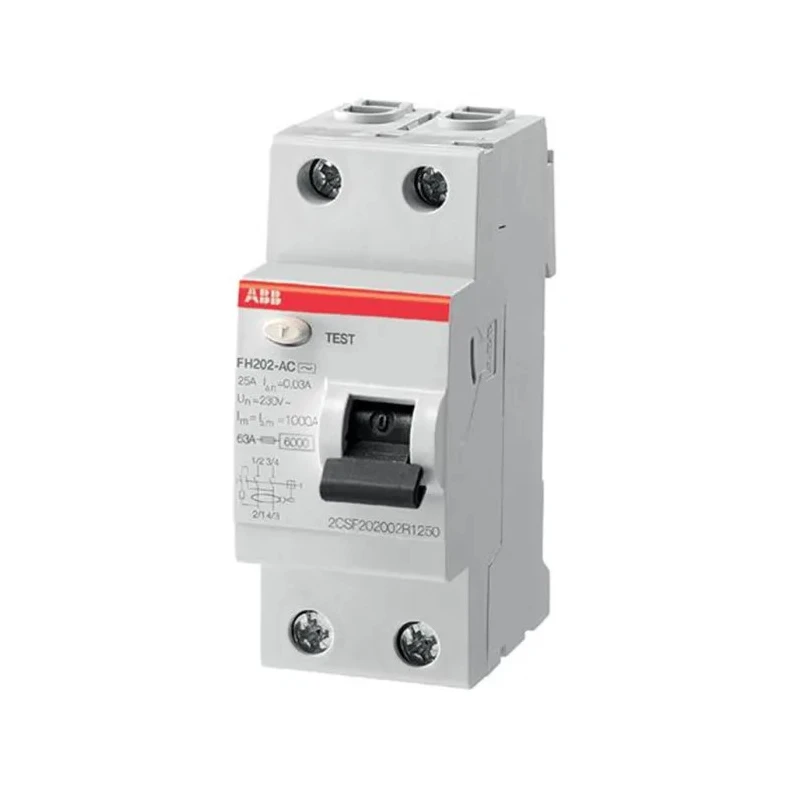

ABB Residual Current Circuit Breaker, Series, 63A, 2-Pole, 30 mA Trip Sensitivity, Type A, 1 kA Breaking Capacity FH200

ABB FH200 Residual Current Circuit Breaker is designed to provide dependable protection against fault currents to earth, suitable for residential and industrial electrical applications. With a rated current of 63A and a 2-pole configuration, this breaker ensures efficient and reliable circuit interruption.

The device features a trip sensitivity of 30mA and a Type A tripping characteristic, capable of detecting both alternating current and pulsating direct current residuals, enhancing safety against electric shock. Its breaking capacity of 1 kA ensures secure disconnection under fault conditions.

Installation is simplified with a DIN rail mount type and screw terminals that provide secure wiring connections. The unit measures 85mm in height, 85mm in depth, and 35mm in width, making it suitable for compact electrical panels where space optimization is critical.

This RCCB incorporates an electromagnetic tripping mechanism with instantaneous break time for immediate fault isolation. The toggle switch reset actuator facilitates easy manual reset after tractor operation.

Rated current of 63 amperes ensures robust operational capacity. 2-pole configuration suitable for diverse electrical installations. Trip sensitivity of 30 milliamperes offers precise earth leakage detection. Type A tripping characteristic supports detection of both AC and pulsed DC residual currents.

Breaking capacity of 1 kiloampere for secure disconnection during faults. Mounts easily on DIN rail for convenient installation. Compact dimensions of 85mm height, 85mm depth, and 35mm width reduces panel space usage. Screw terminal type guarantees reliable wiring connections.

Equipped with a toggle switch reset actuator for quick manual reset. Instantaneous break time for rapid fault interruption ensures safety.

This breaker complies with IEC/EN 61008 and RoHS standards, promising a reliable and environmentally responsible product. It is ideal for electrical installations in homes, commercial buildings, and industrial environments requiring earth leakage protection.

Explore the full range of ABB Residual Current Circuit Breakers at EnvMart for comprehensive circuit safety solutions.
